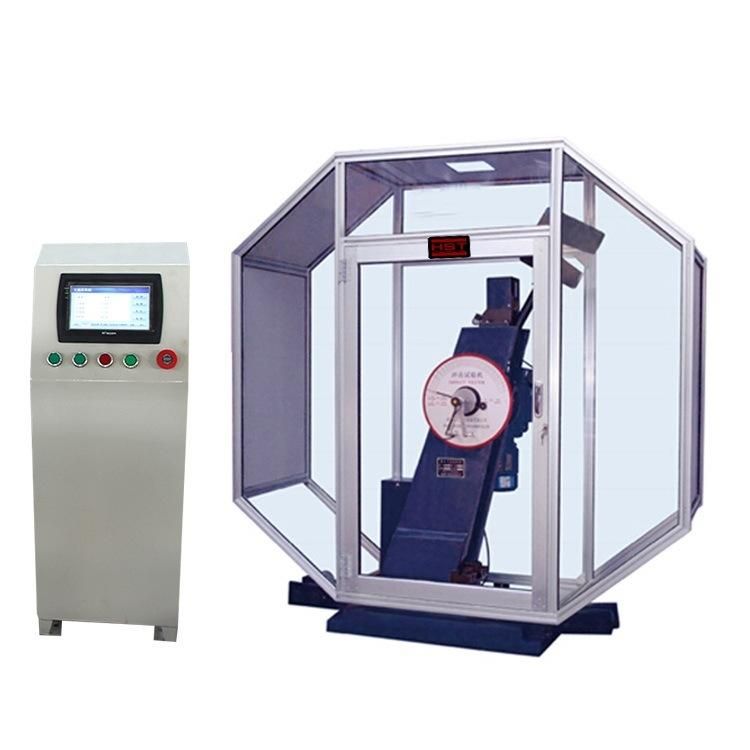

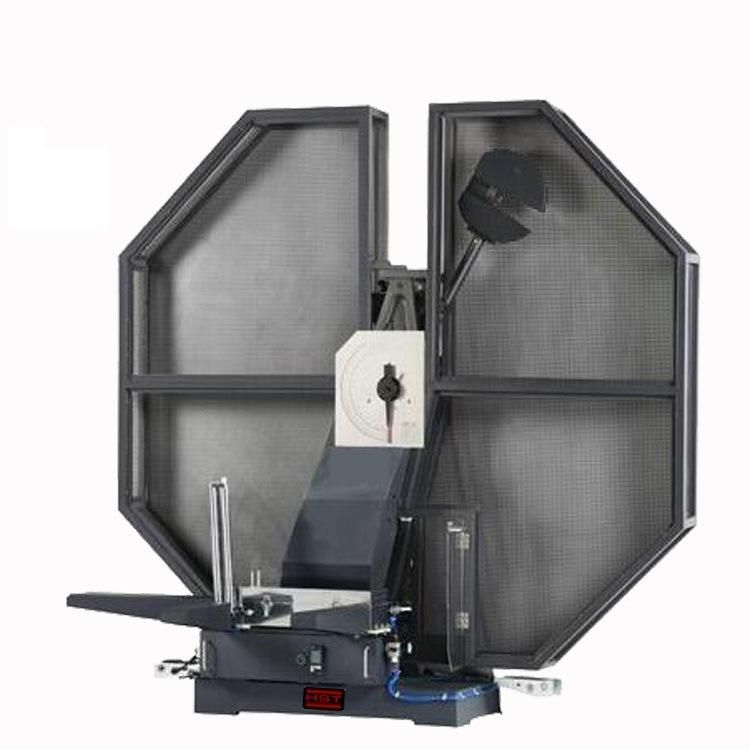

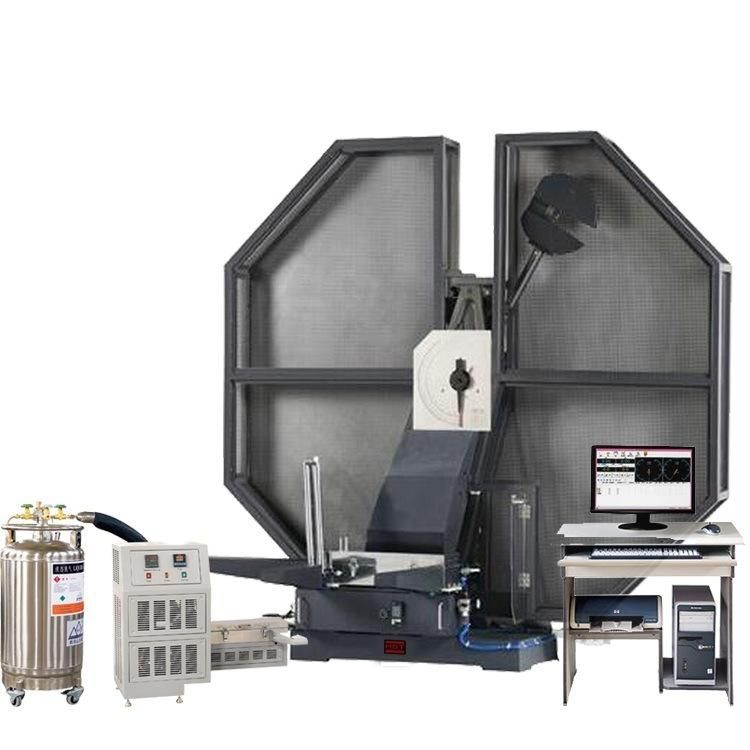

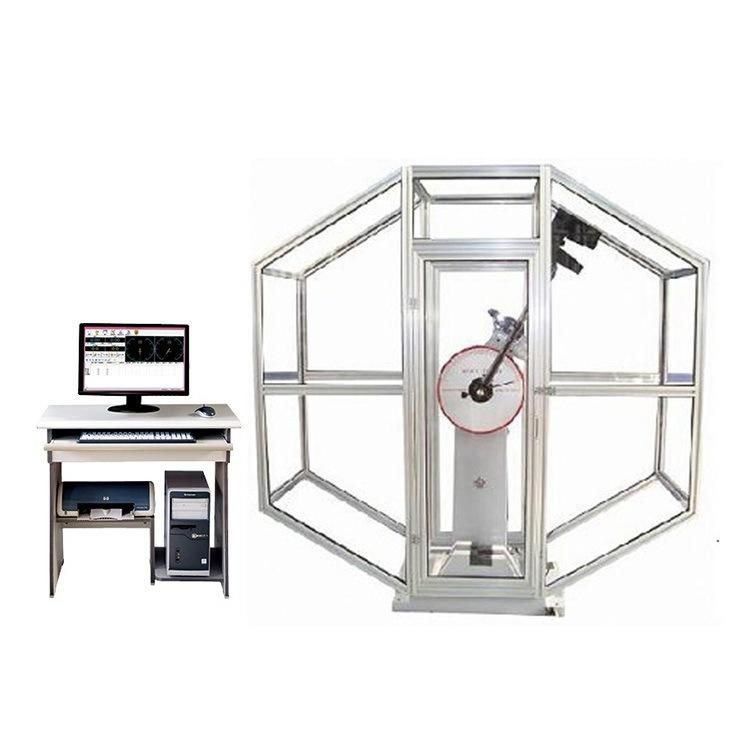

Jb-C Semi-Automatic Charpy Impact Testing Machine 300j 450j 600j 750j

Jinan Kason Testing Equipment Co., Ltd.
  • Type：Impact Testing Machine
  • Maxcapacity：300j 450j 600j 750j
  • Accuracy Grade：1
  • Load Way：Electronic Load
  • Loading Method：Static Load
  • Display：Dial Display

Base Info

  • Model NO.：JB-C
  • Control：Manual Control
  • Weight：100-500Kg
  • Power Source：AC380V
  • Transport Package：Plywood Exporting Package
  • Specification：350kg, 1.35CBM, color can customize
  • Trademark：HST
  • Origin：Jinan, Shandong, China
  • HS Code：9024109000
  • Production Capacity：1000 Sets,Month

Description

Electric ControlMax. Impact Energy300 J450 J600 J750 JImpact Speed5.24 m/sPre-rising Angle Of The
Pendulum150°Angle Accuracy±0.1°Specimen Bearer Span40 mmRound Angle Of The JawR 1.0~1.5 mmRound Angle Of Impact EdgeR 2.0~2.5 mm (Special Order: R8±0.05 mm)Thickness Of Impact Knife16 mmThe Distance Between The
Pendulum Shaft And Impact
Point750 mmStandard Specimen Dimension10 * 10 (7.5 or 5) * 55 mmPendulum300 J, 1 PC450 J, 1 PC600 J, 1 PC750 J, 1 PCDimensions2200*800*2100 mmNet Weight750 KGPower SupplyThree-phase Four-wire System 380V, 50Hz
