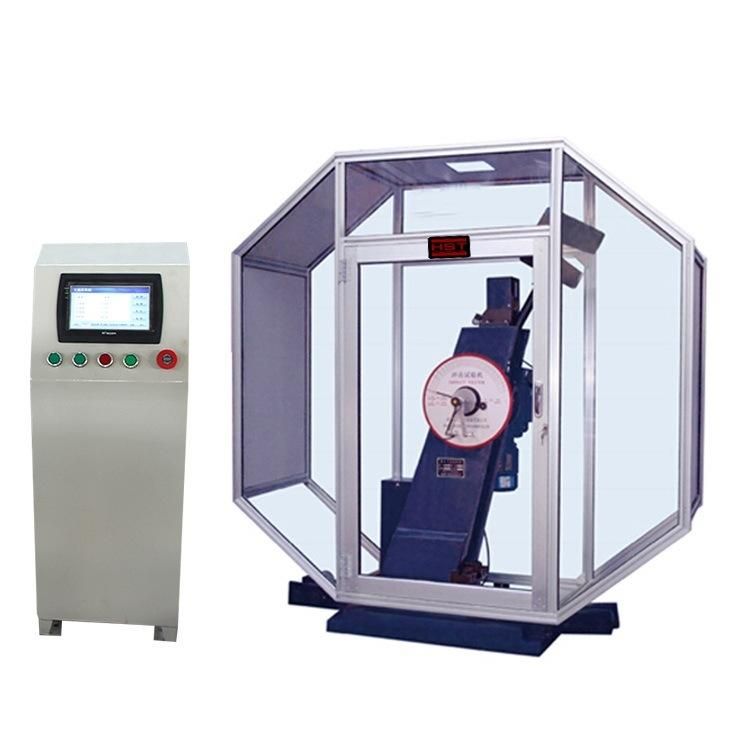

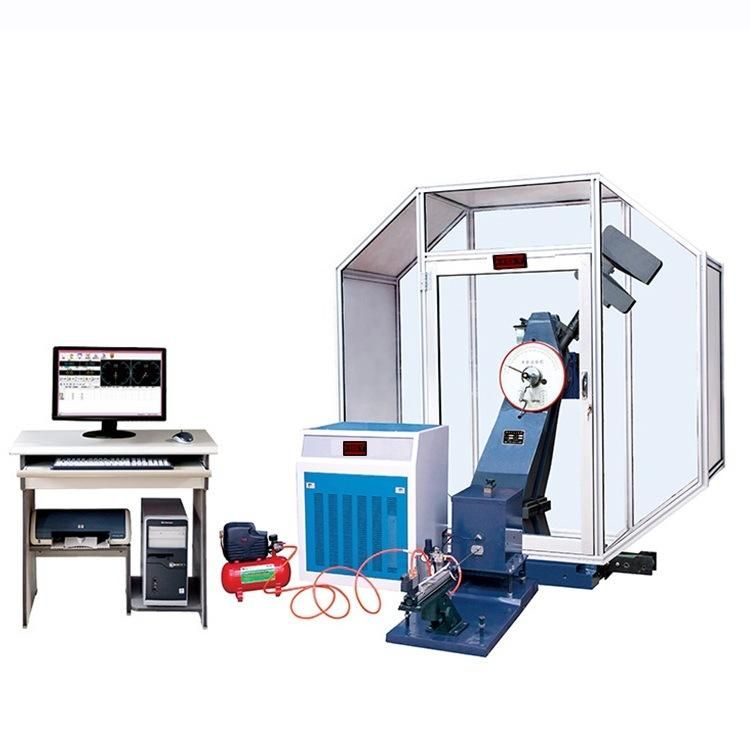

Jbdw-Cy Computer Controlled Low Temperature Metal Pendulum Impact Testing Machine

Jinan Kason Testing Equipment Co., Ltd.
  • Type：Impact Testing Machine
  • Maxcapacity：300j 450j 600j 750j
  • Accuracy Grade：1
  • Load Way：Electronic Load
  • Loading Method：Static Load
  • Display：Digital

Base Info

  • Model NO.：JBDW-CY
  • Control：Manual Control
  • Weight：100-500Kg
  • Power Source：AC380V
  • Transport Package：Plywood Exporting Package
  • Specification：350kg, 1.35CBM, color can customize
  • Trademark：HST
  • Origin：Jinan, Shandong, China
  • HS Code：9024109000
  • Production Capacity：1000 Sets,Month

Description

JBDW-450CYJBDW-600CYJBDW-750CY Control MethodComputer Controlled Max. impact energy300J450J600J750J Impact speed5.24m/s Pre-rising angle of the pendulum150° Angle accuracy±0.1° Specimen bearer span40mm Round angle of the jawR1.0~1.5mm Round angle of impact edgeR2.0~2.5mm(R8mm) Angle of impact edge30° Thickness of impact knife16mm Capacity of sample box20 pcs Cooling waycompressor refrigeration Range of low temperatureRoom temperature~ - 60°C / - 80°C / - 100°C Precision of controlling temperatureFluctuate±0.5ºC, Grades 1ºC The distance between the
pendulum shaft and impact  point750mm Standard specimen dimension10 x 10 (7.5 or 5) x 55mm Pendulum300J 1pc450J 1pc600J 1pc750J 1pc Power supply3-phase 4-line 380V 50Hz
