30kn 3ton Computer Control Electronic Universal Tensile Testing Equipment (WDW-30)

Jinan Kason Testing Equipment Co., Ltd.
  • After-sales Service：24 Hours Technical Supply
  • Warranty：12 Months
  • Max Diameter of Workpiece：<500mm
  • Mass Scope of Workpiece：<900kg
  • Type：Universal Testing Machine
  • Maxcapacity：<1000KN

Base Info

  • Model NO.：WDW-30
  • Accuracy Grade：1
  • Load Way：Electronic Load
  • Loading Method：Static Load
  • Display：Computer
  • Control：Computer Control
  • Weight：100-500Kg
  • Power Source：AC220V
  • Oil Cylinder Position：None
  • Delivery Time：3 Days After Get Tt Payment
  • Standard：ASTM, GB, ISO, DIN
  • Certification：ISO, Ce
  • Transport Package：Standard Export Packing
  • Specification：700*450*1775mm
  • Trademark：HST
  • Origin：China
  • HS Code：9024101000
  • Production Capacity：100 Sets Per Month

Description

Four-column floor or desk model,

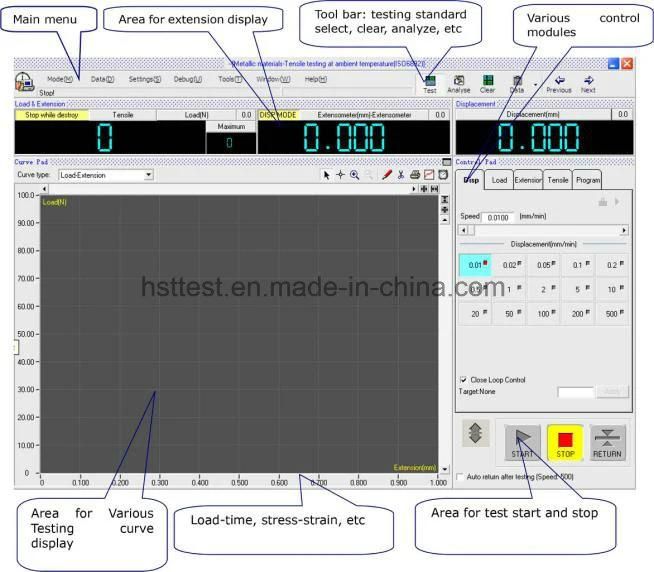

(upper is compression and lower is tensile)CoverAll aluminum alloyControl methodComputer controlLoad accuracyClass 1Class 0.5Load range2%~100%F·S0.2%~100%F·SLoad resolution1/300000Rang of deformation4%-100%FSResolution of deformation0.04umAccuracy of displacementWithin±0.5%of indicating loadResolution of displacement0.01mmTest speed(mm/min)0.05-500 stepless arbitrary settingTensile space(mm)700(can be customized)Compression space(mm)700(can be customized)Test width(mm)500(can be customized)Software Interface:
30kn 3ton Computer Control Electronic Universal Tensile Testing Equipment (WDW-30)

30kn 3ton Computer Control Electronic Universal Tensile Testing Equipment (WDW-30)30kn 3ton Computer Control Electronic Universal Tensile Testing Equipment (WDW-30)30kn 3ton Computer Control Electronic Universal Tensile Testing Equipment (WDW-30)30kn 3ton Computer Control Electronic Universal Tensile Testing Equipment (WDW-30)30kn 3ton Computer Control Electronic Universal Tensile Testing Equipment (WDW-30)
