• Model NO.：WDS-200,300
• Accuracy Grade：1
• Load Way：Electronic Load
• Loading Method：Static Load
• Display：Digital
• Control：Manual Control
• Weight：500-1000Kg
• Power Source：AC220V
• Oil Cylinder Position：No
• Standard：ASTM, GB, ISO, DIN
• Delivery Time：10-25 Days After Payment
• Transport Package：Standard Export Packing
• Specification：1000*650*2150mm
• Trademark：HST
• Origin：China
• HS Code：9024101000
• Production Capacity：200 Sets Per Month

Basic Info.

Model NO. WDS-200/300 Accuracy Grade 1 Load Way Electronic Load Loading Method Static Load Display Digital Control Manual Control Weight 500-1000Kg Power Source AC220V Oil Cylinder Position No Standard ASTM, GB, ISO, DIN Delivery Time 10-25 Days After Payment Transport Package Standard Export Packing Specification 1000*650*2150mm Trademark HST Origin China HS Code 9024101000 Production Capacity 200 Sets Per Month

Product Description

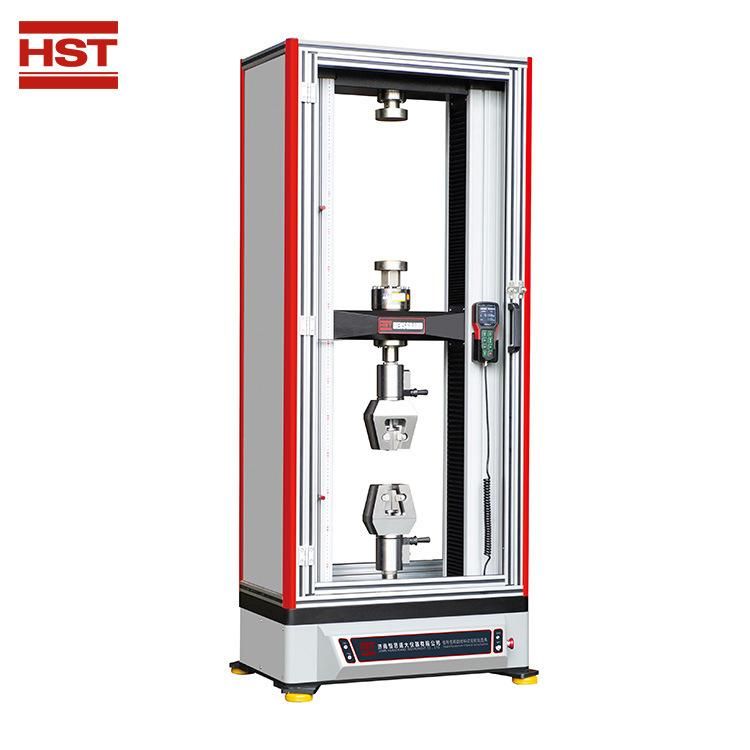

200/300KN Digital Display 300kn Electronic Steel Rebar Universal Testing Equipment



1.Application:
It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing.
It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
2.Standard:
ASTM, ISO, DIN, GB and other international standards.
3.Main Technical Parameters:

Model	WDS-200/300
Max. Load	200/300KN
Structure	Four-column Floor Model (Upper Is Compression And Lower Is Tensile)
Control Method	Single Chip Control
Load Accuracy	1 Class
Load Range	2%~100%F·S
Displacement Resolution	0.04um
Test Speed	1~200mm/min
Tensile Space	550mm (Can be customized)
Compression Space	550mm (Can be customized)
Test Width	600mm (Can be customized)
Power Supply	AC220V±10%, 50Hz (Can be customized)
Grips	Wedge Type, Plate Type And Other Grips As Customers' Demand
Weight	980 KG
Dimension	1000*650*2150mm

Factory show:
