• Model NO.：THV Series
• Humidity Accuracy：+,- 2.5% R.H.
• Temperature Rising Speed：0.1~3.0degree C,Min
• Temperature Falling Speed：0.1~1.5degree C,Min
• Vibration System：Customize
• Transport Package：Wooden Case
• Specification：THV Series
• Trademark：ASLi
• Origin：Guangdong, China
• HS Code：85141090
• Production Capacity：10 Sets,Month

Vibration Humidity Temperature Combined Test Cabinets ParametersModelTHV-408(A~F)THV-1000(A~F)THV-1500(A~F)Internal Dimension
W*H*D(mm)600*850*8001000*1000*10001500*1500*1500External dimension
 W*H*D (mm)850*1950*21001300*2200*24001800*2400*3000Temperature RangeLow temperature: (A:25degree C; B:0degree C;  C:-20degree C; D: -40degree C; E: -60degree C; F:-70degree C)
High temperature:100degree C(150degree C)Humidity Range20%~98%R.H.(10%-98% R.H. / 5%-98% R.H. is a special optional condition, need Dehumidifier)Indication Resolution/
Distribution uniformity
of temperature and humidity0.1degree C; 0.1% R.H/±2.0degree C; ±3.0% R.H.Control Accuracy of
 temperature and humidity±0.5degree C; ±2.5% R.H.Temperature Rising/
Falling VelocityTemperature rising approx.  0.1~3.0degree C/min ;
temperature falling approx.  0.1~1.5degree C/min;
( Falling velocity Min.1.5degree C/min is optional  )Internal and External MaterialMaterial of the inner box is SUS 304# stainless steel,of the outer box is stainless steel or  SEE cold-rolled steel with paint coated.Insulation MaterialResistant to high temperature, high density, formate chlorine, ethyl acetum foam insulation materials Cooling SystemWind cooling or water cooling; single segment compressor
for -40degree C, double segment compressor for -70degree CProtection DevicesFuse-free switch, overloading protection switch  for compressor, high and low voltage coolant protection switch, over-humidity and over-temperature protection switch, fuses, fault warning system, water short storage warning protectionOptional AccessoriesInner door with operation hole(Optional) , Recorder(optional),
Water Purifier, DehumidifierVibration Test EquipmentChoose proper vibration test bench according to customer's test condition, the technical parameters please take  Electrodynamics Type Vibration Tester's parameters in this catalog for referencePowerAC380V 3phase  5 Lines, 50/60HZ

Electrodynamic Vibration Humidity Temperature Environmental Combined Test Chamber Feature:
1. A combined structure of test chamber and refrigerating system boasting compact and graceful design;
Independent console
2. Original refrigerating compressor unit and its main accessories are internaltional famous brand;
3. LCD color touch screen controller, capable of automatic control of temperature humidity programs;
4. RS-232 communication. To meet customer's unique demands, users may choose from different models Of vibration test bench to ensure that in addition to good cool,
5. Heat and air seal system, this vibration bench will also boasts remarkable effect of mechanical vibration



For Vibration Shaker:

Model	ES-3	ES-3a	ES-6	ES-6a	ES-10	ES-20	ES-30	ES-40	ES-50
Rated Sine Force (N)	3000	3000	6000	6000	10000	20000	30000	40000	50000
Rated Random	3000	3000	6000	6000	10000	20000	30000	40000	50000
Force (N)	3-3500	3-3500	3-3500	3-3500	3-3000	3-3000	3-2800	3-2800	3-2700
Frequency Range (Hz)	1000	400	1000	1000	1000	1000	1000	1000	1000
Rated Acceleration (m/s2)	1.6	1.6	1.6	1.6	1.8	1.8	1.8	1.8	1.8
Rated Speed (m/s)	25	40	25	51	51	51	5l	51	51
Rated displacement (p-p) mm	100	120	180	250	270	300	450	500	750
Max. Loading (Kg)	3.5	9	6.5	12	14	30	40	50	50
moving coil (Kg)	Φ150	Φ230	Φ230	Φ230	Φ240	Φ320	Φ450	Φ450	Φ450



For Vertical Expander:

VT vertical extended-bench and specified clamps, precision calculated, elaborate design, to ensure the customer acquired the best performance according to perfect structure, high quality material and workmanship.

For Horizontal Expander

Within small loading bench to realize higher acceleration and working frequency, to improve the loading capacity and performance of whole machine bench.

Horizontal bench and vibration bench are integral type, with perfect structure, convenience to install and adjust.

Static pressure track, V-shape, with capacity of slope-resistant and bias-loading resistant.

Built-in oil pump, good structure and easy operating.

Customers' Visit ASLI:

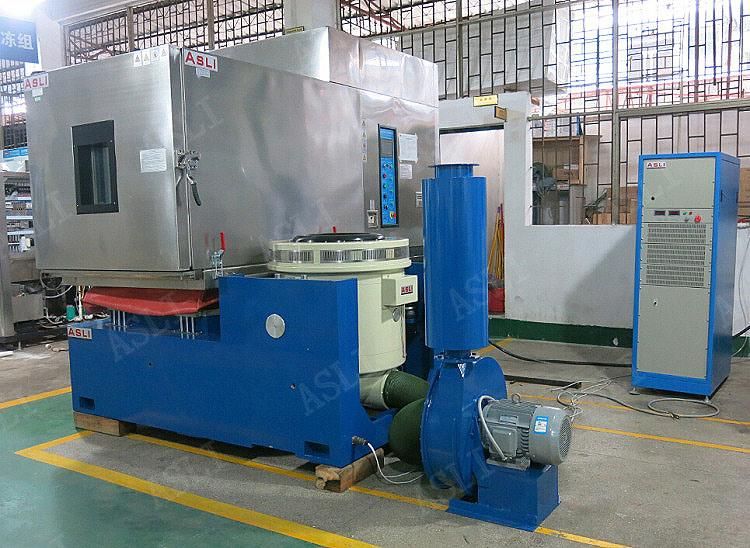

Electrodynamic Vibration Humidity Temperature Environmental Combined Test Cabinets/Chamber
