Mechanical Shock and Impact Testing Machine (MS Series)

Ai Si Li (China) Test Equipment Co., Limited
  • After-sales Service：Lifelong Technical Service Support
  • Warranty：1 Year
  • Type：Impact Testing Machine
  • Maxcapacity：<1000KN
  • Accuracy Grade：0.05
  • Load Way：Electronic Load

Base Info

  • Model NO.：MS Series
  • Loading Method：Dynamic Load
  • Display：Digital
  • Control：Computer Control
  • Weight：>2000Kg
  • Power Source：AC380V
  • Oil Cylinder Position：Under
  • Max. Loading (Kg)：50~800
  • Pulse Acceleration ( M/S2)：50~1200
  • Pulse Width (Ms)：20~3
  • Frequency (Times /Min)：10~80
  • Max. Dropped Height (mm)：60
  • Pulse Type：Half Sine Wave,
  • Transport Package：Wooden Case
  • Specification：MS Series
  • Trademark：ASLi
  • Origin：Guangdong, China
  • HS Code：8514109000
  • Production Capacity：300sets, Year

Description

Overview Product Description

Mechanical Shock and Impact Testing Machine Withstand shock damage. It is often used in electronic components, electronic circuit boards and other Environmental testing.


Shock Test bench
Shock and measure controller
 Product ParametersMechanical Shock and Impact Testing Machine Technical Parameters ModelMS-50MS-100MS-200MS-500MS-800Load capacity (kg)50100200500800pulse  acceleration( m/s2)50~120050~100050~100050~50050~500Pulse Width (ms)20~320~320~320~320~3Frequency     (times /min)10~8010~8010~8010~8010~80Table Size (mm)500*700700*700700*700800*8001000* 1000Max. Dropped Height  (mm)6060606060Pulse Type Half Sine wave, (trapezoidal wave, and the sawtooth wave, square wave optional)External Dimension        W*H*D (mm)800*1300*
1000800*1300*
1000850*1350*
11001000*1300*
19001000*1300*
1900Weight (Kg)11001250200030003500Protection Device Door protection, over-load protection, zero signal protectionPower AC 220V(±10%), 1 Ph 3 Lines ,50/60HZ;   AC 380 V(±10%) ,3 Ph  5 Lines,50/60HZEnvironmental Conditions Temperature: 25degree C ±5.0degree C humidity: <85%(25degree C)

Mechanical Shock and Impact Testing Machine Features:
1. Working bench with perfect structure, good uniformity of bench's acceleration.
2. High reliable of system, safety device.
3. The saw-tooth wave and trapezoidal wave, etc. Extensible.
4. Capacity of crash and impact test function.

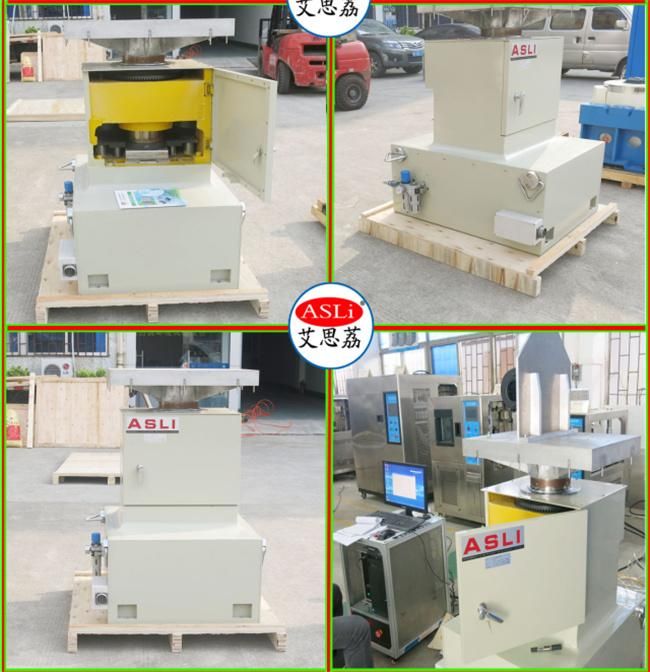

5. Optoelectronic feedback.Detailed Photos

Mechanical Shock and Impact Testing Machine (MS Series)

Customer Training in ASLI Factory:
Mechanical Shock and Impact Testing Machine (MS Series)Exhibition

Mechanical Shock and Impact Testing Machine (MS Series)


If you need more information about Mechanical Shock and Impact Testing Machine (MS Series), please feel free to contact us.
