Laboratory Uses Salt Corrosion Spray Tester Chamber
Guangdong Yuanyao Test Equipment Co., Ltd.- Max Diameter of Workpiece:700mm
- Mass Scope of Workpiece:900kg
- Type:Salt Spray Testing Machine
- Maxcapacity:<1000KN
- Accuracy Grade:0.5
- Load Way:Electronic Load
Base Info
- Model NO.:YSST-600
- Loading Method:Dynamic Load
- Display:Digital
- Control:Controller
- Weight:100-500Kg
- Power Source:AC220V
- Oil Cylinder Position:Under
- Inner Size(W*H*D):1200*500*1000mm
- External Size(W*H*D):1900*1400*1300mm
- Volume:600 Liters
- Inside Chamber Temp. Range:Rt--50degrees, +,-0.5 Degree
- Air Saturated Barrel Temp. Range:Rt--63degrees, +,-0.5 Degree
- Salt Water Tank Temp. Range:Rt.-- 50degrees, +,-0.5degree
- Exteriol/Inner Material:P.V.C&P.P
- Color:Ivory or Other
- Interior Chamber Material:SUS#304 Stainless Steel Plate
- Exterior Chamber Material:Stainless Steel Plate + Powder Coated
- Transport Package:Strong Wood Carton
- Specification:CE, SGS, TUV certified.
- Trademark:Yuanyao
- Origin:Dongguan, China(Mainland)
- HS Code:9024800000
- Production Capacity:100 Sets,Month
Description
SpecificationModel YSST-108 YSST-270 Internal Dim.WHD(mm) 600*400*450 900*500*600 External Dim.WHD(mm) 1070*580*1030 1380*800*1150 Temp. Range Chamber Room temp.-- 50ºC,±0.5ºC Air Room temp.--63ºC,±0.5ºC Salt Room temp.--50ºC,±0.5ºC Saturated Air Pressure(Kg/m) 0.8--2.0 Spray Volume(m/80cm/hr) 0.5--3.0 PH Salt 6.5--7.2 Cu(CH COOH) 3.0--3.2 Exter,/Inter.Material P.V.C & P.P Systems Salt Spray Veicle Air+acid(base)liquid Heating SUS#304 stainless steel heater Controller Hydrometer,salinomerer,fog collector,glassbar Other Components Digital electronic control+S.S.R Savety Devices Overheating prevention circult-breaker,dehydration and
overheating prevention mechanism,breakdown indicator light Power Source[K.W] AC 1Ψ 220V 60/50Hz 1.1 1.5 3.5 Comply with ASTM B-117, B-287,B-380,JIS D-0201, D-0205, H-8681, Z-2371, K-5400^^ Product detail:

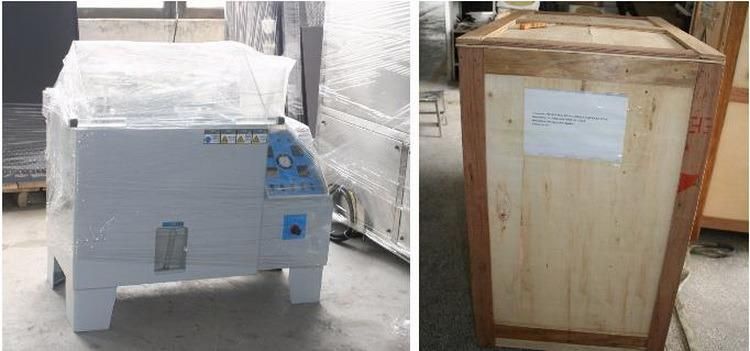

Package & Delivery
Package: Wooden cases, meet the international standard.
Delivery: In 15-20 working days.
Except Stability salt spray testing chamber, Salt water salt spray testing chamber, Salt spray corrosion testing cabinet chamber, Guangdong Yuan Yao Electronics Technology Co., Ltd also can supply:
Precision Oven Tester, Triple Type Temp. & Humi. Chamber, Temp. &Humi. Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester, Walk-in environmental Test Room, Temp. Humi. &Vibration Conbined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test equipment, Dust Tester, Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester and so on.
Company profile
If you want to know more about salt spray chamber,please feel free to contact us.
Thank you for your reading !
