New Design Customization Performance Corrosion Salt Spray Test Chamber
Guangdong Yuanyao Test Equipment Co., Ltd.- Max Diameter of Workpiece:700mm
- Mass Scope of Workpiece:<900kg
- Type:Salt Spray Testing Machine
- Maxcapacity:N,a
- Accuracy Grade:0.5
- Load Way:Mechanical Load
Base Info
- Model NO.:YSST-600
- Loading Method:Static Load
- Display:Digital
- Control:Computer Control
- Weight:100-500Kg
- Power Source:AC220V
- Oil Cylinder Position:N,a
- Inner Size(W*H*D):1200*500*1000mm
- External Size(W*H*D):1900*1400*1300mm
- Volume:270 Liters
- Inside Chamber Temp. Range:Rt--50degrees, +,-0.5 Degree
- Air Saturated Barrel Temp. Range:Rt--63degrees, +,-0.5 Degree
- Salt Water Tank Temp. Range:Rt.-- 50degrees, +,-0.5degree
- Exteriol/Inner Material:P.V.C&P.P
- Color:Ivory or Other
- Interior Chamber Material:SUS#304 Stainless Steel Plate
- Exterior Chamber Material:Stainless Steel Plate + Powder Coated
- Transport Package:Strong Wood Carton
- Specification:CE, SGS, TUV certified.
- Trademark:Yuanyao
- Origin:Dongguan, China(Mainland)
- HS Code:9024800000
- Production Capacity:100 Sets,Month
Description
SpecificationModel YSST-108 YSST-270 YSST-600 Internal Dim.WHD(mm) 600*400*450 900*500*600 1200*500*1000 External Dim.WHD(mm) 1250*1050*910 1550*1210*1060 1900*1400*1300 Temp. Range Chamber Room temp.-- 50ºC,±0.5ºC Air Room temp.--63ºC,±0.5ºC Salt Room temp.--50ºC,±0.5ºC Saturated Air Pressure(Kg/m) 0.8--2.0 Spray Volume(m/80cm/hr) 0.5--3.0 PH Salt 6.5--7.2 Cu(CH COOH) 3.0--3.2 Exter,/Inter.Material P.V.C & P.P Systems Salt Spray Veicle Air+acid(base)liquid Heating SUS#304 & #316stainless steel heater+taflon Controller Hydrometer,salinomerer,fog collector,glassbar Other Components Digital electronic control+S.S.R Savety Devices Overheating prevention circult-breaker,dehydration and
overheating prevention mechanism,breakdown indicator light Power Source[K.W] AC 1Ψ 220V 60/50Hz 1.1 1.5 3.5
Except Salt corrosion test equipment, Guangdong Yuan Yao Electronics Technology Co., Ltd also can supply:

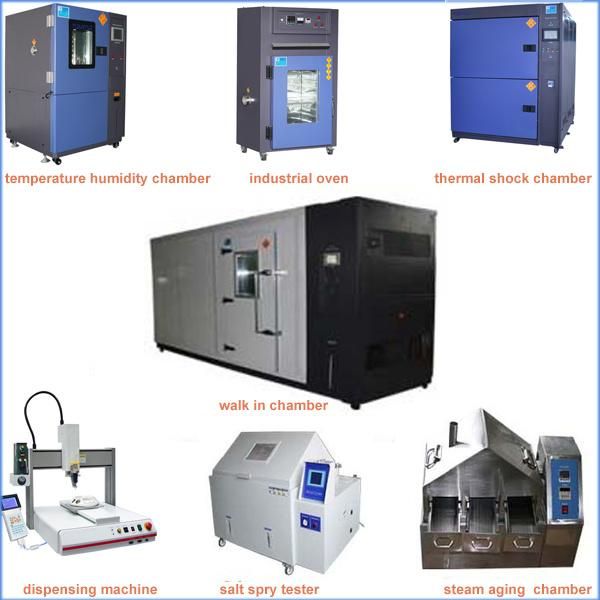

Precision Oven Tester, Triple Type Temp. & Humi. Chamber, Temp. &Humi. Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester, Walk-in environmental Test Room, Temp. Humi. &Vibration Conbined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test equipment, Dust Tester, Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester and so on.
Company profile
If you are interested in the items, please let us know. We will be happy to give you the details.
