High Performance Fast Change Rate Thermal Machine
Guangdong Yuanyao Test Equipment Co., Ltd.- Max Diameter of Workpiece：700mm
- Mass Scope of Workpiece：<900kg
- Type：Material Testing Machine
- Maxcapacity：<1000KN
- Accuracy Grade：0.5
- Load Way：Electronic Load
Base Info
- Model NO.：YIT-408
- Loading Method：Dynamic Load
- Display：Digital
- Control：Controller
- Weight：100-500Kg
- Power Source：AC220V; AC380V
- Oil Cylinder Position：N,a
- Internal Size：600*850*800 Mm
- Circulation：Sirocco Fan
- Insulation：PU&Fiberglass Wool
- Materia：Stainless Steel
- Warranty：12 Months
- Temp.Resolution：0.01 Oc
- Heating System：High Speed Heater
- Cooling：Air Cooling Condenser
- Customization：Inner Chamber Size, Temperature&Humidity
- Temp.Range：-70oc-150oc
- Transport Package：Strong Wooden Cases
- Specification：CE, TUV, SGS Certificate
- Trademark：Yuan Yao
- Origin：Guangdong, China
- HS Code：9032100000
- Production Capacity：100 Sets,Month
Description

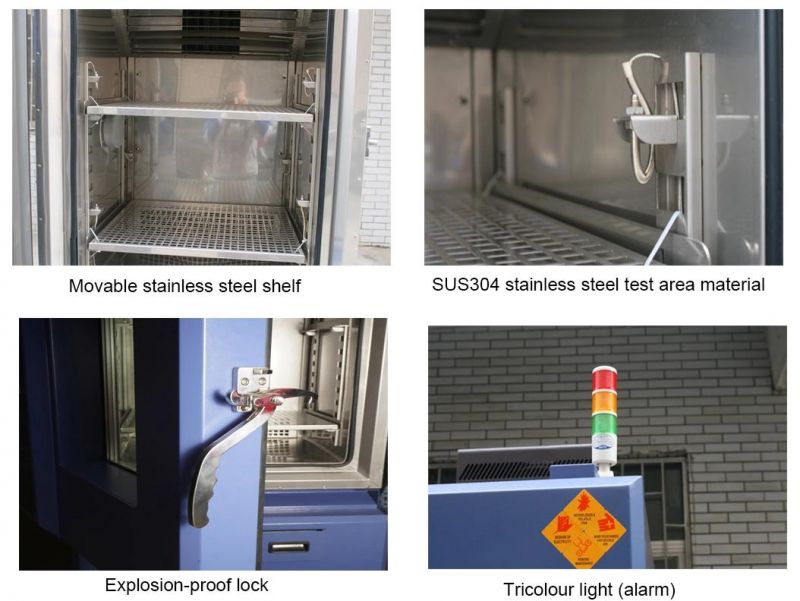

ModelYICT-1000 Inner chamber size w×h×d(cm) Exterior chamber size w×h×d(cm) Depends on inner chamber size Testing temperature range -70~150ºC(KS);-40~150ºC(KL);-20~150ºC(KR) Fast change temperature range -70ºC kinds:-50~+85ºC(KS);-40ºC kinds:-20~+85ºC(KL);-20ºC kinds:0~+85ºC(KR) Heating-up&Cooling-down speed 3ºC/min,5ºC/min,8ºC/min,10ºC/min,15ºC/min(Linear or Non-linear) Performance Temp.fluctuation ±2.0ºC Temp.uniformity ±1.5ºC Temp.resolution 0.01ºC Heating-up time -70~150ºC<60min;-40~150ºC<50min;-20~150ºC<35min Cooling-down time +20~ -70ºC<70min;+20~ -40ºC<55min;+20~ -20ºC<35min Material Exterior chamber material Cold-rolled steel+Powder coating Interior chamber material SUS#304 Stainless steel Insulation PU fiberglass wool System Wind circulation Cooling fan Heating system SUS#Stainless steel high-speed heater Refrigeration system Imported tecumseh compressor+fin type evaporator+air(water)cooling system Other components Multi-layer vacuum glass observation window,cable port(50mm),controlling status indicator lamp,chamber light,specimenloading shelf(2pcs,position adjustable) Safety protection device Over-heat protection circuit breaker,compressor overload protection,control system overload protection,humidifying system overload protection indicator lamp Power supply AC 3phase380V 60/50Hz Customization service Non-standard or special requirements are all welcome
Customization service is available, we can set & design equipments according to your own specific requirements!
Product detailes:
Company profile
In addition to water rain spray test chamber, we are also manufacturing:
Precision Oven Tester, Triple Type Temp. & Humi. Chamber, Temp. &Humi. Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Walk-in environmental Test Room, Temp. Humi. &Vibration Conbined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test equipment, Dust Tester, Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester and so on.
Other styles / size with different configurations are available upon request, welcome to enquire and purchase!
If you want to know more about water resisitance test chamber,please feel free to contact us.
Thank you for your reading !
