• Model NO.：YSDT-1000
• Loading Method：Dynamic Load
• Display：Digital
• Control：Computer Control
• Weight：100-500Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Internal Size(W*H*D)：400*450*400mm
• Exterior Chamber Size(W*H*D)：750*1100*550mm
• Test Type：F1
• Concentration of Dust：Above 60000 Mg , M3
• Testing Temp.：20 Degree Celsius +,- 15 Degree Celsius
• Humidity Range：45%Rh-85%Rh
• Swirl Time：5s
• Material：Stainless Steel
• Warranty：12 Month
• Rest Time：15 Min
• Transport Package：Well Packed in Strong Wooden Cases.
• Specification：CE, SGS, TUV certified.
• Trademark：Yuanyao
• Origin：Dongguan, China(Mainland)
• HS Code：9031200000
• Production Capacity：100sets,Month

ModelYSDT-1000-FYSDT-1000-C(IEC-529)Internal Dim.W×H×D(mm)1000×1000×10001000×1000×1000External Dim.W×H×D(mm)1350×1950×13501350×1950×1350Testing TypeF1F2F3IEC60529C1C2Concentration of dust(mg/m3)Above 60000Above 3000Above 100Above 5000Above 100Testing Temp.20°C±15°CHuimidi.Range45%RH~85%RHFlow rate of dust(m/s)No Limited5m/s10m/sTesting TimeSwirl time5S or otherNORest time15min or otherTotal time5H8H8H2H6HMaterialExteriorSUS#304+Powder CoatedInteriorSUS#304Other ComponentsChamber lamp,Wiper,Casters with adjustersPower Source(K.W.)AC 1Ψ 220V 60/50Hz   4KW
Other styles / size with different configurations are available upon request.

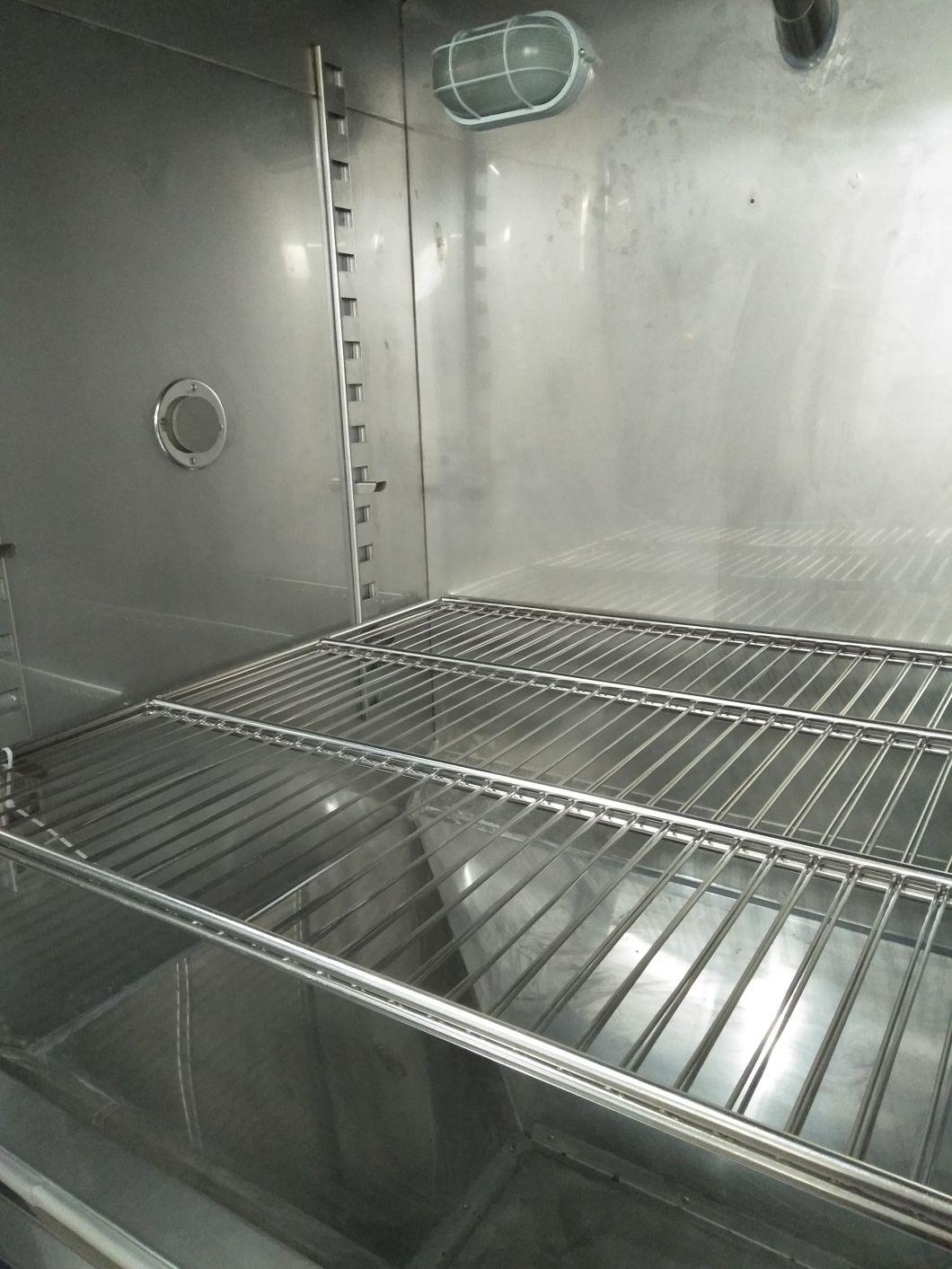

Detailed images










In addition to dust-proof test chamber, we are also manufacturing:

Precision Oven Tester, Triple Type Temp. & Humi. Chamber, Temp. &Humi. Control Host, Air Thermal
Shock Tester, Liquid Thermal Shock Tester, Walk-in environmental Test Room, Temp. Humi. &Vibration
Conbined Test Chamber, Aging Oven Tester, Rain/Spray Test Chamber, Burn-in test equipment, Dust Tester,
Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester and so on.


Company profile








If you want to know more about the salt spray test chamber,please feel free to contact us.
Welcome to inquiry !
