Digital Automatic Control Steam Aging Test Chamber for Materials Testing
Guangdong Yuanyao Test Equipment Co., Ltd.- Type:Material Testing Machine
- Maxcapacity:<1000KN
- Accuracy Grade:0.5
- Load Way:Electronic Load
- Loading Method:Dynamic Load
- Display:Digital
Base Info
- Model NO.:YSA-4
- Control:Computer Control
- Weight:100-500Kg
- Power Source:AC380V
- Oil Cylinder Position:Under
- Internal Size(W*H*D):100*540*260, 4sets mm
- Temp.Range:Rt. +10 C ~+98 C
- Temp.Constancy:+,- 0.3 C
- Temp.Resolution:+,- 0.1 C
- Material:Stainless Steel
- Insulation:PU&Fiberglass Wool
- Heating:Chrome Steel Strip Wire Heater
- Controller:Digital Electronic Indicators Controller
- Warranty:12 Months
- Application:Aging Testing
- Transport Package:Strong Wood Carton
- Specification:SGS, TUV certified.
- Trademark:Yuanyao
- Origin:Dongguan, China(Mainland)
- HS Code:9032100000
- Production Capacity:100 Sets,Month
Description
ModelYSA-3 YSA-4 Test basket.W×H×D(mm) 100×540×260,3Sets 100×540×260,4Sets External Dim.W×H×D(mm) 610×540×340 760×540×340 Performance Temp.Range R.T+10°C ~ +98°C Temp.Constancy ±0.3°C Temp.Resolution ±0.1°C Heat-up(min) 45 mins Material Exterior SUS#304 stainless steel piate Interior SUS#304 stainless steel piate Insulation PU & Fiberglass wool Systems Heating Chrome Steel Strip Wire Heater Controller Digital electronic indicators controller+S.S.R.With P.I.D & timer max 9,990mins Safety Devices Overheating prevention pretector,
Water shortage protector, steam outlet hole, no fuse breaker Power Source(K.W.) AC 1Ψ 220V 60/50Hz 1.1 2.5
We also can provide the custom service for products.

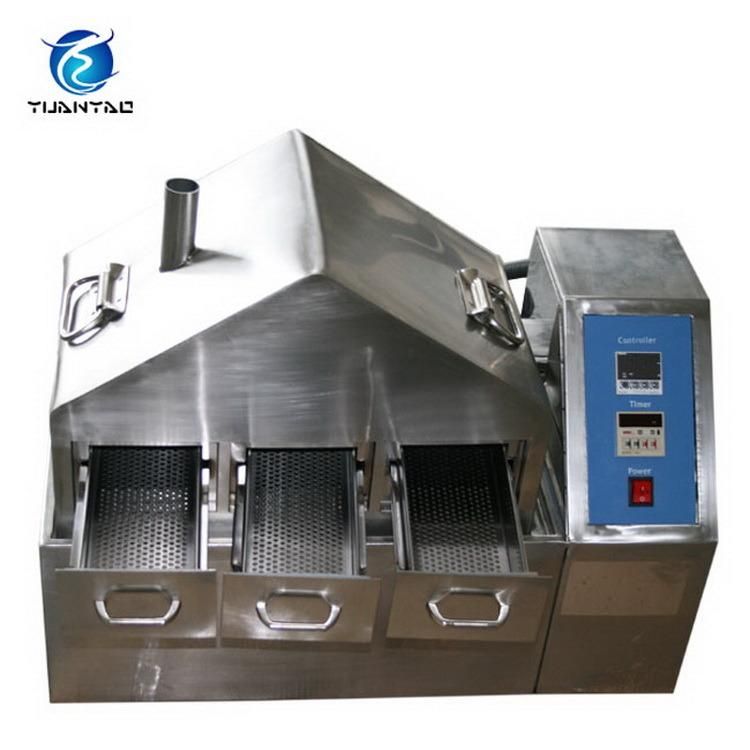

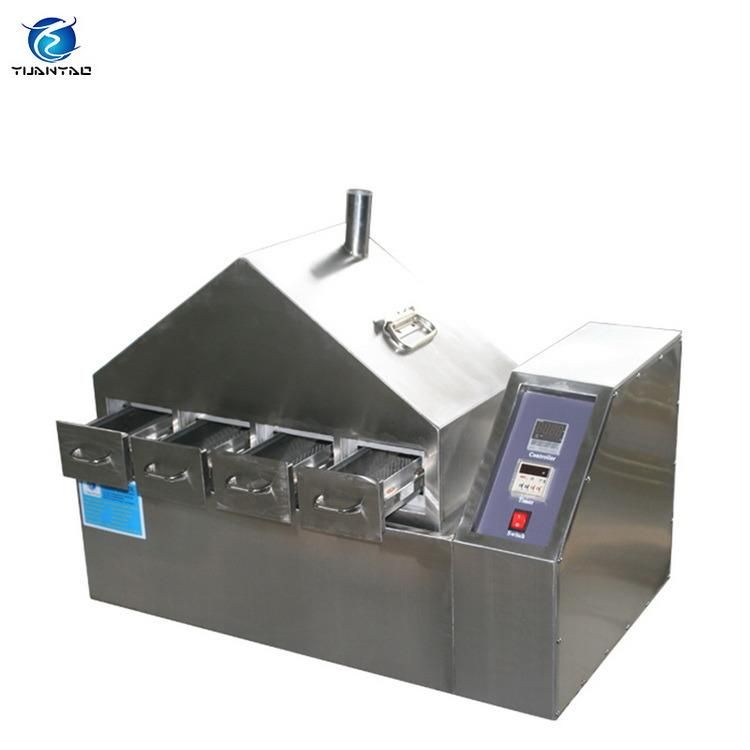

Product detail
