• Model NO.：PCT-25 , PCT-35 , PCT-65

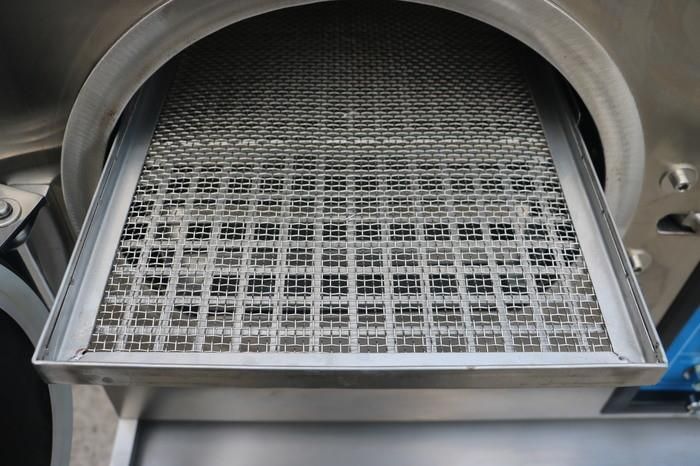

• Accessories：Two Layers Stainless Steel Plate
• Equipment Capacity(L)：17~250
• Powder：AC220V
• Package：Standard Export Plywood Case
• Transport Package：Plywood Case
• Specification：ce, iso
• Trademark：ASLi
• Origin：China
• HS Code：85141090
• Production Capacity：100 Sets,Month

Overview Product Description

application:

100% humidity Saturated PCT Test Chamber is widely applied for the testing of sealing property for multi-layer circuit board, IC sealing package, LCD screen, LED, semi-conductor, magnetic materials, NdFeB, rare earths and magnet iron, in which the resistance to pressure and air tightness for above mentioned products can be tested out.
 Product ParametersPCT Pressure Cooker Test Chamber technical parameters: PCT - 45Internal Dimension Φ×D (mm)300×250350×450450×550External Dimension Φ×D (mm)750×1200×800800×1250×800900×1380×900Temperature Range of Saturated Steam (Operating temperature)(Temperature Range of Saturated Steam:100ºC~135ºC) ,
 Temperature Range: 120ºC,100Kpa/ 133ºC  200 Kpa;(143ºC is special order)   Relative Pressure / Absolute PressureRelative pressure: display values  indicated on the  pressure gauge
Absolute pressure: Value that add 100 Kpa based on display values indicated on the  pressure gauge  (The actual value in the inner box)
Humidity of Saturated Steam100%RH saturation steam humiditySteam Pressure(Absolute Pressure)101.3Kpa +0.0Kg/cm2 ~ 2.0Kg/cm2 ; (3.0Kg/cm2  is special standard)Recursive DeviceSteam Natural convection circulationSafety Protective DeviseWater short storage protect, over pressure protect.(have automatically / manual water replenishing, automatically discharge pressure function )AccessoriesTwo layers  stainless steel plateEquipment Capacity(L)174387Powder AC 220V(±10%), 1∮ 3  Lines ,50/60HZ ;   Detailed Photos



100% humidity Saturated PCT Test Chamber safety device:

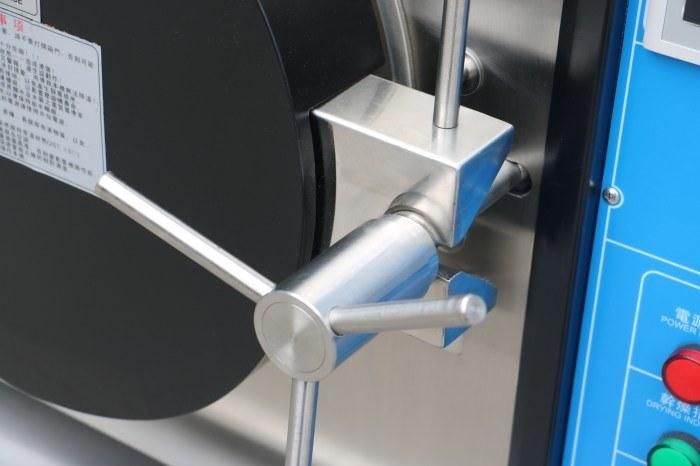

1. Safety device for the pot: If the inner box is not closed , the machine can not start
2. Safety Valve: When the inner box's pressure higher than the machine's undertake value, it will self-relieve.
3. Double overheat protection device: When inner box's temperature is too high, it will alarm, and Automatic cut off the heating power.
4. Cover protection: The inner box's cover is made of aluminum alloy, can protect the worker from scald.

100% humidity Saturated PCT Test Chamber features:
1. Automatic adding water function, and automatic filling water upon the water short storage while testing.
2. Automatic operation to test process finished, easy to use.
3. Temperature control: LED digital temperature controller can make accurate testing of temperature setting, control and display.
4. LED digital timer, when the inner box's temperature reached the setting value, then start to time to ensure the test complete.
5. Accurate pressure: temperature chart always shows the inner box's pressure and relative humidity.
6. Water device is automatically discharge not saturated steam in order to achieve the best steam quality.
7. A integrated silic gel door gasket, air tightness is very good, and long operation life.
8.The inner box is mirror-polished , graceful and non-pollution

Package: PP film first, and then 10mm foam between machine and the case, and outside is standard

Our Services
Warranty: one year free warranty for whole set machine,lifelong time maintainance.
Service:OEM service,Design service,Buyer lable service.
After-sale service: feedback within 2 hours after get the call.

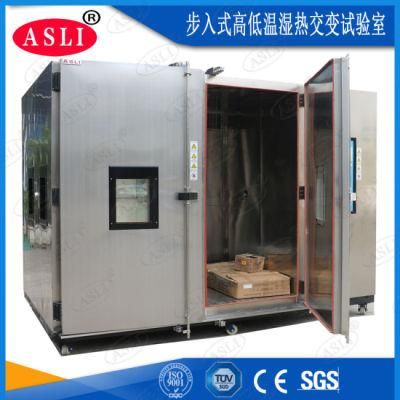

Customer Reference:

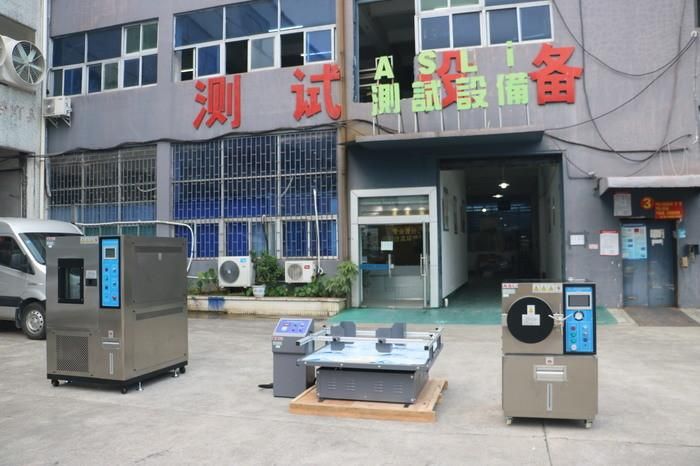

Short introduction about ASLi factory:
We are a long history testing equipment manufacturer, in the past 26 years, we devoted to simulation environmental testing equipment and Mechannical vibration and shock testing machine.100% Humidity Saturated PCT Pressure Cooker Test Chamber is our star products, and we had obtained the CE certification for this machine.
