• Model NO.：TS-80-A
• Distribution Uniformity of Temperature：+,-2.0 C
• Accessories：Viewing Window
• Weight：600kg
• Recovery Time：Within 5 Mins
• Transport Package：Standard Export Plywood Case
• Specification：CE, ISO
• Trademark：ASLi
• Origin：China
• HS Code：85141090
• Production Capacity：100 Sets,Month

TS-80(A~C)Internal Dimension WxHxD (mm)500X400X400External Dimension WxHxD (mm)1550X1950X1550Temperature Range of Testing zoneType A:-40 ºC~+150ºC ( 200ºC is Optional)Type B:-55ºC ~+150ºC ( 200ºC is Optional )Type C:-65ºC ~+150ºC ( 200ºC is Optional)High temperature Range of Testing zone:+60ºC~+150ºC ( 200ºC is Optional);
Low Temperature Range of Testing Zone:-10ºC~-40ºC / -55ºC / -65ºCExposure Time of High/Low TemperatureExposure Time of High Temperature:+60ºC ~ +150ºC (200ºC is Optional) 30MinsExposure Time of Low Temperature :-10ºC~Type A:-40ºC / Type B -55ºC / Type C -65ºC 30MinsTemperature of Heat-Storing Slot / Heating TimeRT~200ºC/About  45minsTemperature of Cool-storing Slot / Cooling TimeRT~-75ºC/ About 100minsTemperature Recovery Time / Conversion Time≤5min/≤5secControl Accuracy / Distribution Uniformity±0.5ºC/±2ºCInternal and External MaterialMaterial of the inner box is SUS 304# stainless steel,of the outer box is stainless steel or see cold-rolled steel with paint coated.Insulation MaterialHigh temperature resistant , high density , formate chlorine , ethyl acetum foam insulation materialsMechanicsP.I.D+S.S.R+ Micro-computer balanced temperature control systemCooling SystemSemi-hermetic double-stage compressor(water-cooled type) /Hermetic double-stage compressor (air-cooled type)Security Protection DevicesNon-fuse breaker, high and low pressure protective switch of the compressor , refrigerator high-pressure protective switch , failure warning system, electronic alarmAccessoriesViewing window(special order)CompressorFrench 'Tecumseh' Brand, Germany Bizer BrandPowerAC220V 1 phase 3 lines ,50/60Hz, AC380V 3 phase  5 lines ,50/60HzWeight (Approx)600 Kg



Li-ion Battery Test Machine Features:
1.It is divided into three zones:High temperature zone, low temperature zone, and testing  zone.The test sample is in static mode.
2.Using touch-control graph control as operation interface, easy to operate.
3.Applying wind route conversation to the shock method to distribute temperature to the testing zone for cold and thermal shock measurement.
4.For high temperature shock or low temperature shock, max.Time is up to 999H, and max.Circulation cycles are 9999 times.
5.The Li-ion Battery Test Machine / Temperature Shock Test Equipment system can be used for automatic Circulation Shock or manual selective shock.
6.Adopt binary cooling system, with quick cooling effect.Cooling method is water cooling.
7.Can entering normal temperature.RS-232 and RS-485 communication.

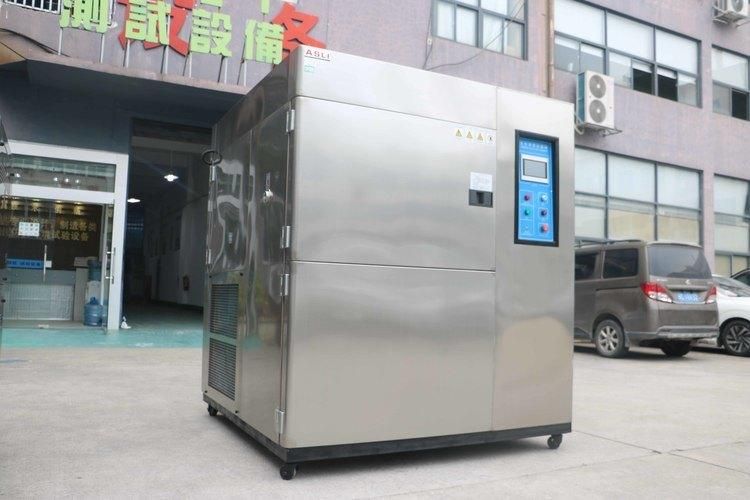

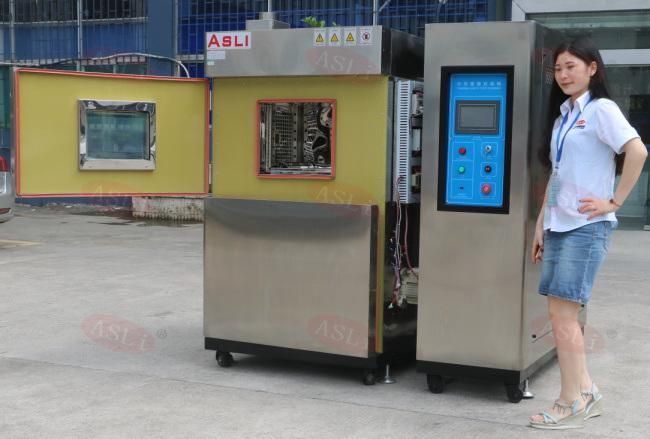

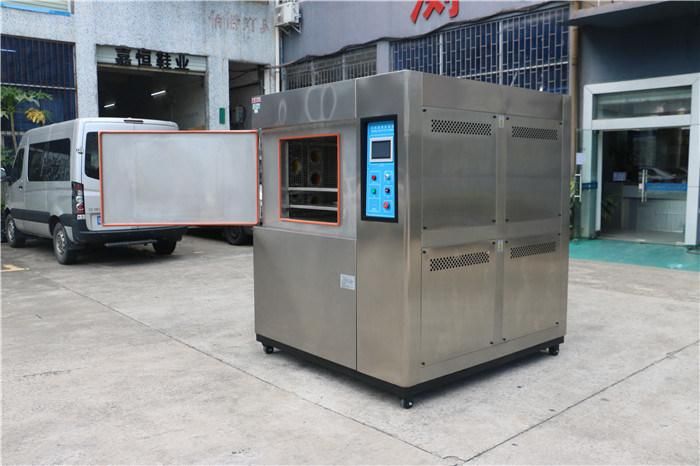

Pictures for Reference:
Our service
1.High quality guarantee.
2.Shipment with professional documents.
3.Packing as your request, with photo before shipment.
4.Reply within 48 hours and provide solution within 3 working days
5.Professional after-service from our engineers.
6.Warranty period 12 monthes.

Our advantages
1.Professional technology support.
2.Full experience of large numbers containers loading in Chinese sea port.
3.Fast shipment by reputed shipping line.
4.Best service after shipment with emails.
5.We are professional test equipment manufaturer in China with excellent experience and skills, also have best quality products


Our reputation is built on superior quality and outstanding customer service.


If you have any needs about Li-ion Battery Test Machine / Temperature Shock Testing Equipment, please don't hesitate to contact me.Thanks in advance
