Customized Size Walk in Constant Temperature and Humidity Test Room
Ai Si Li (China) Test Equipment Co., Limited- After-sales Service：Lifelong Technical Service Support
- Power Supply：AC380V
- Certification：CE, TUV, ISO
- Warranty：1 Year
- Humidity Range(Optional)：20%~98%R.H.
- Temperature Range：-70~+150 Degree
Base Info
- Model NO.：THR-Volume
- Temp. Rising Speed：0.1~3.0degree C,Min
- Analytic Accuracy：+,-0.1% R.H
- Cooling System：Water Cooling
- Volume：Non-Customized
- Material：Stainless Steel
- Type：Reliability Test
- Transport Package：Standard Export Plywood Case
- Specification：CE Certified
- Trademark：ASLi
- Origin：Guangdong, China
- HS Code：85141090
- Production Capacity：30 Sets,Month
Description
Temperature and Humidity Test Room Technical ParametersModel THR-volume (low-temperature options : A ~ F) Inner Dimensions(cm) Customers designated space size and design Temperature Range Low Temperature(A:25C B:0C C:-20C D:-40C E:-60C F:-70C )
High Temperature 80degree C (80C~150C is optional) Humidity Range 20%R.H.~98%R.H.
(10%-98% R.H. / 5%-98% R.H ,is a special optional condition,need dehumidifier) Indication Resolution/
Distribution Uniformity of
Temperature & Humidity 0.1C ; 0.1% R.H/±2.5C ; ±3.5% R.H. Control Accuracy of
Temperature and Humidity ±0.5C ; ±2.5% R.H. Temperature Rising/ Falling Velocity Temperature rising approx. 0.1~3.0°C/min;
temperature falling approx. 0.1~1.0°C/min;
( The Falling Velocity Min.1.0°C /min is a optional) Cooling System Water cooled Protection Devices Fuse-free switch, overloading protection switch for compressor,high and low voltage coolant protection switch, over-humidity & over-temperature protection switch, fuses, fault warning system, water short storage warning protection Optional Accessories Slope for cart , Recorder, Water Purifier, Dehumidifier Compressor French Tecumseh Brand, Germany Bizer Brand Power AC 380 V(±10%),50/60HZ ,3 phase 5 Lines
Walk in Constant Temperature and Humidity Test Room Features :
1. Graceful appearance, circularly shaped body, surface treated with mist strips and plane handle with no reaction. Easy to operate, safe and reliable.
2. Rectangular double-paned viewing window for the observation of sample under test with interior lights
3. Double-layer- insulated airtight doors, able to insulate the internal temperature effectively.
4. Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.
5. French Tecumseh brand is used as compressor, with environment friendly refrigeration R23,R404A
6.LCD display screen, capable of displaying the set point and actual value at the same time
7. The control unit has the functions of multiples segment program editing, with ramp rates control of temperature and humidity.
8. Casters are provided for ease of mobility, with strong positioning screws.

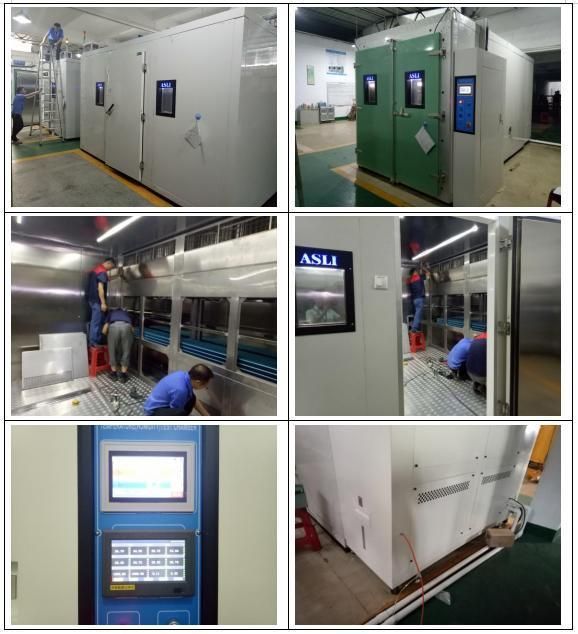

Walk in Constant Temperature and Humidity Test Room Pictures:

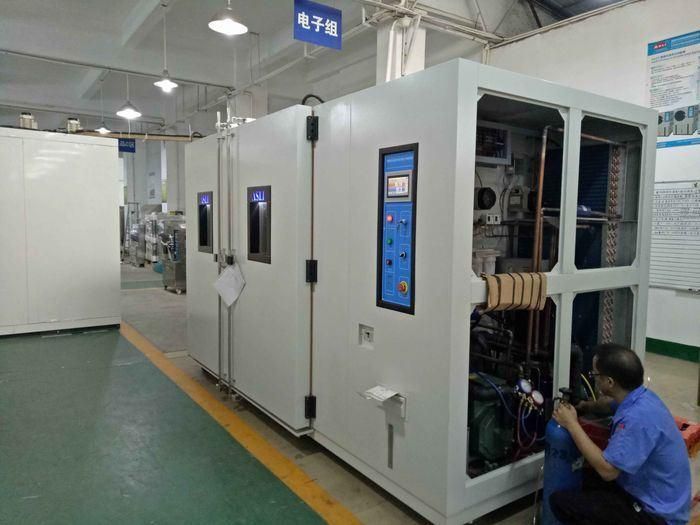

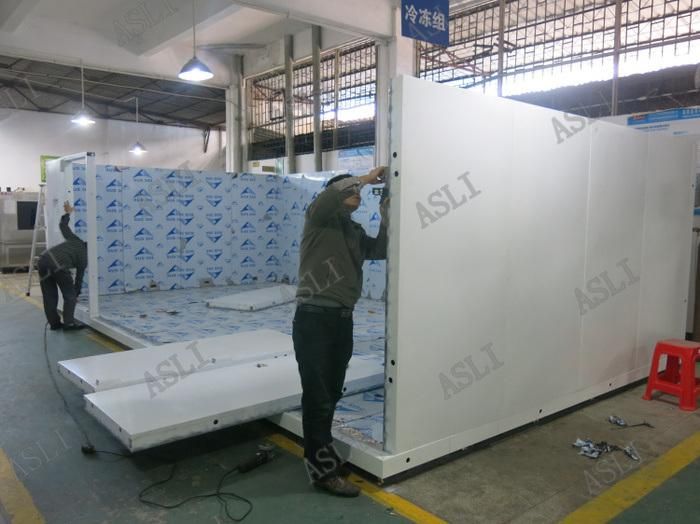

Manufacturing Detail:
Saftey device:
1. With no-fuse protection switch
2. Control system with phase sequence protection and low voltage electrical protection.
3. With over-heat protection switch.
4. Over load protection device for refrigeration compressor.
5. Refrigeration compressor high and low voltage protection switch.
6. Refrigeration compressor over oil pressure protection.
7. Lack of Anti-phase protection system.
8. Overload protection for circulation fan motor.
Customer Reference List:
Warranty: one year free warranty for whole set machine,lifelong time maintainance.
After-sale service: feedback within 8 hours after get the call or email.
Service:OEM service,Design service,Buyer lable service.
ASLi main test equipments:
Environmental chambers, temperature (humidity) chamber,Thermal shock chamber, PCT /Hast chamber (Highly accelerated stress test chamber),Walk in Constant Temperature and Humidity Test Room, ESS chamber,walk in constant temperature and humidity room,electrodynamic vibration shaker,mechanical shock tester,environmental combined vibration chamber,etc.
