• Model NO.：XL-1000
• Tube Using Life (H)：1500
• Tube Power：1kw,6kw
• Cooling System：Water Cooled or Wind Cooled
• Sunlight Exposure Cycle：0.01~999 Hours 59mins
• Spray Water Flow (L/Min)：1~2.4
• Volume：1000 Liters
• Transport Package：Standard Export Plywood Case
• Specification：CE, ISO
• Trademark：ASLi
• Origin：China
• HS Code：85141090
• Production Capacity：100 Sets,Month

Overview Product Description

Xenon short arc lamp accelerated aging test chamber is a comprehensive climate testing machine, it can do climatic aging test, and also can do fading acceleration test under color effect or color changed. The test range including: dying and finishing, printing, leather, plastic, plyglass, painting, textile, printing ink, rubber and also the industry relative color.  Light fastness and fade grade can be known in short time. Those materials exposed at simulated sunlight to evaluated the material's light fastness performance. To simulate and strengthen the test according to light energy, temperature, rain fall or condensation, humidity, .etc these main climate factors. Adopt simulated sunlight spectrum's Xenon arc light to create destructive waves under different environment. It can be used for choosing new materials, improving existing materials, or assessment of durability change after material composed.

Product Parametersxenon lamp accelerated aging test chamber technical parameters:XL - 1000Internal Dimension WxHxD (mm)1000x1000x1000
 External Dimension WxHxD (mm)1500x2000x1400
 Tube Using Life (H)1500Tube Power1KW/6KWIllumination  Intensity 340nm
0.35~0.6w/m2Full spectrum
1200±200w/m2Lighting Filter TypeInner filterQuartzOuter filterQuartzSimulated Test Status Test samples: Explore under outer spaceCooling SystemWater cooled or wind cooledTemperature Control Range of the Test CabinetBlack panel temperature : BPT 40~120ºC(±3ºC)Black standard temperature :BST 38~120ºC(±3ºC)Humidity Control Range of the Test CabinetHumidity when lighting: 20%R.H.~75%R.H. (± 5%R.H.)Humidity when dark: 60%R.H.~95%R.H. (± 5%R.H.) Rotating Speed of the Samples Holder(RPM)3~10 adjustableDiameter of Sample Shelf(mm)500±50Sunlight Exposure Cycle0.01~999 hours 59minsRaining Period / TimeRaining Period:1~240mins,discontinuous-type, adjustableRaining Time:1~9999mins, adjustable, water spray pressure 70~130KpaSpray water flow (L/min)1~2.4Explore Area(cm2)7500Power AC 380 V(±10%),50/60HZ ,3 phase 5 Lines

xenon short arc lamp accelerated aging test chamber features:
1. Advanced design technology and concept,
2. Excellent technology of producing and outstanding system of quality management,
3. Xenon lamp tester can be the most realistic simulated solar spectrum, including ultraviolet,
visible and infrared.
4. Be tested in the range of the full spectrum, necessary for most textile sun and color fastness test.
5. To determine the color fastness and aging to sunlight, weather resistance, etc.

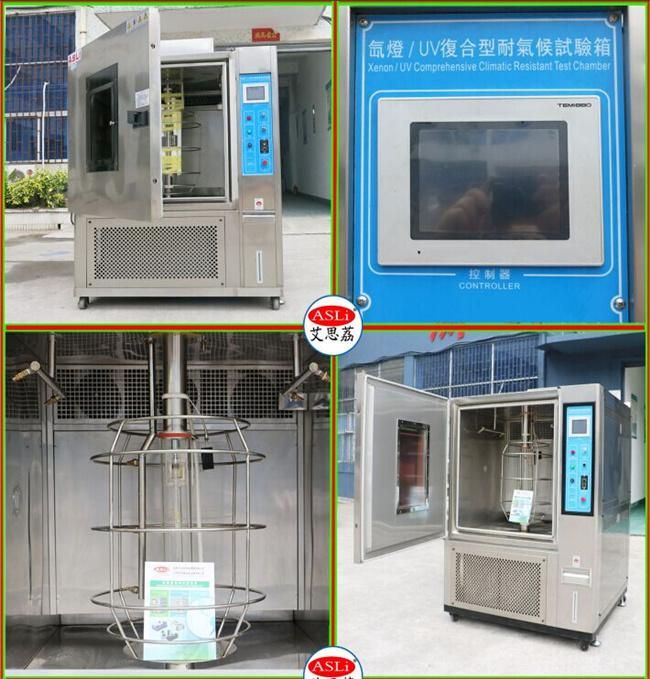

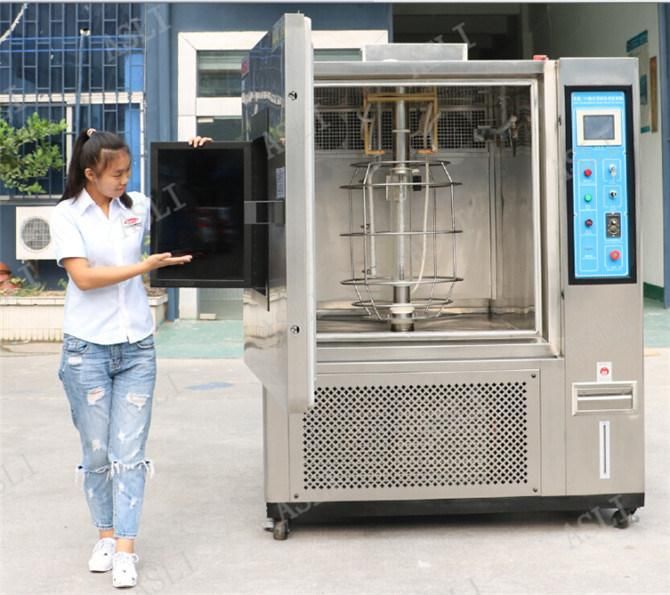

 Detailed Photos

Warranty: one year free warranty for whole set machine,lifelong time maintainance.

After-sale service: feedback within 8 hours after get the call or email.

Service:OEM service,Design service,Buyer lable service.

ASLi main test equipments:
Environmental chambers, temperature (humidity) chamber,xenon short arc lamp accelerated aging test chamber,Thermal shock chamber, PCT /Hast chamber (Highly accelerated stress test chamber),ESS chamber, Walk in stability chamber,Vacuum oven,electrodynamic vibration shaker,mechanical shock tester,environmental combined vibration chamber,etc
Exhibition

If you need more information about Xenon Short Arc Lamp Accelerated Aging Test Chamber, please feel free to contact me.
