• Model NO.：THR-Volume
• Temp. Rising Speed：0.1~3.0degree C,Min
• Temp.Falling Speed：0.1~1.5degree C,Min
• Analytic Accuracy：0.1degree C; 0.1% R.H
• Uniformity：+,-2.5degree C; +,-3.5% R.H.
• Control Accuracy：+,-0.5degree C; +,-2.5% R.H.
• Cooling System：Water Cooling
• Transport Package：Wooden Case
• Specification：CE Certified
• Trademark：ASLi
• Origin：Guangdong, China
• HS Code：85141910
• Production Capacity：30 Sets,Month

Product ParametersDetailed Photos

Packing Detail:

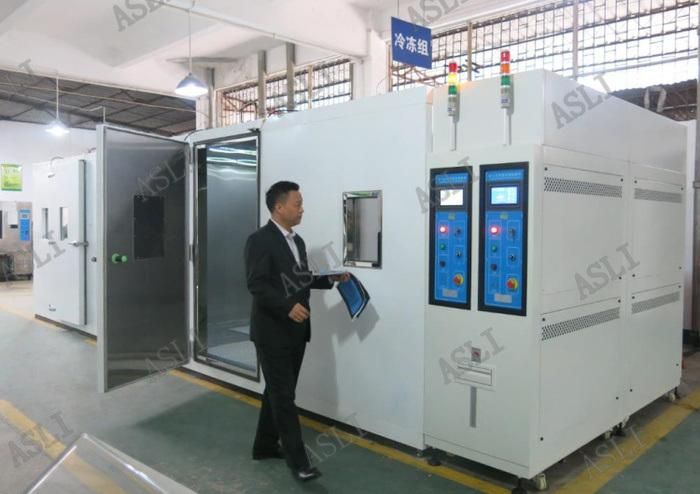

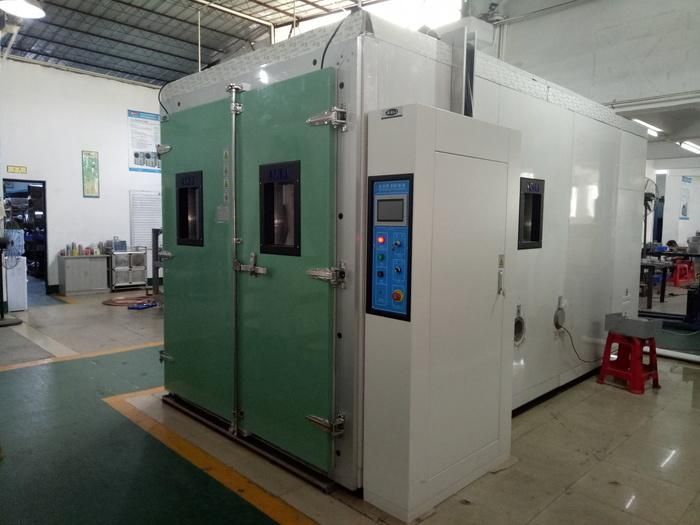

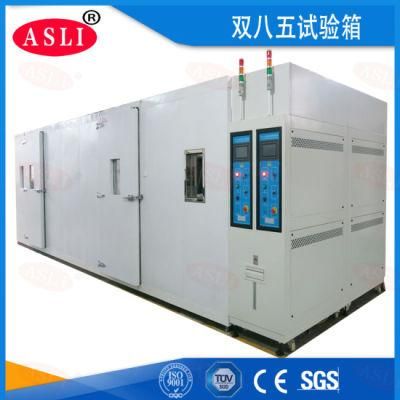

-70~150C Walk in Laboratory Temperature Humidity Climate Test Chamber Features :
1. Graceful appearance, circularly shaped body, surface treated with mist strips and plane handle with no reaction. Easy to operate, safe and reliable.
2. Rectangular double-paned viewing window for the observation of sample under test with interior lights
3. Double-layer-insulated airtight doors, able to insulate the internal temperature effectively.
4. Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.
5. French Tecumseh brand is used as compressor, with environment friendly refrigeration R23,R404A.
6.LCD display screen, capable of displaying the set point and actual value at the same time
7. The control unit has the functions of multiples segment program editing, with ramp rates control of temperature and humidity.
8. Casters are provided for ease of mobility, with strong positioning screws.

-70~150C Walk in Laboratory Temperature Humidity Climate Test Chamber Saftey Device:
1. With no-fuse protection switch
2. Control system with phase sequence protection and low voltage electrical protection.
3. With over-heat protection switch.
4. Over load protection device for refrigeration compressor.
5. Refrigeration compressor high and low voltage protection switch.
6. Refrigeration compressor over oil pressure protection.
7. Lack of Anti-phase protection system.
8. Overload protection for circulation fan motor.


Certificate of these the machine:

China official 3rd party calibration report

CE certiification

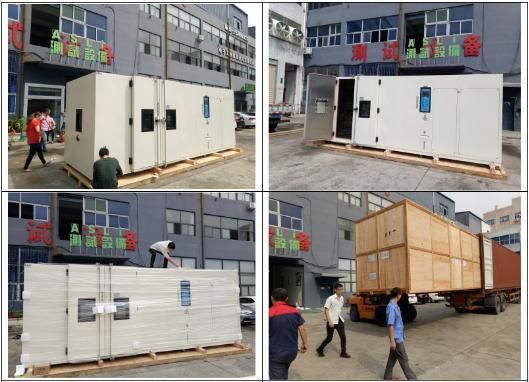

For the package:

1. PP film first

2. Vacuum package

3. PP film again

4. 10mm thickness PU foam to avoid collision

5. stronged plywood case

6. Standard ASLI CASE MARK

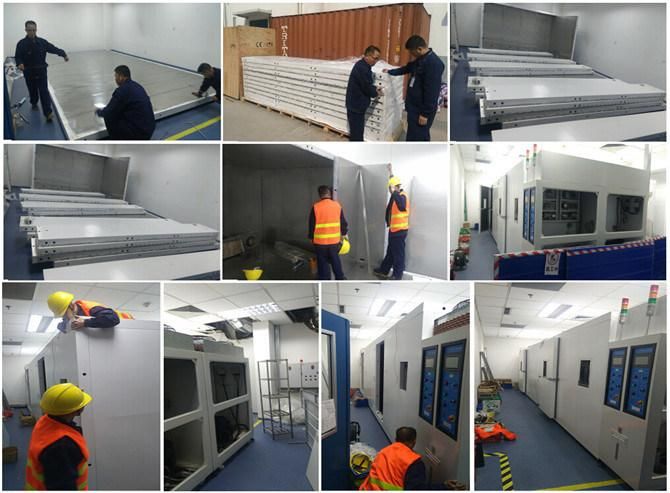

Debugging Detail:


ASLi main test equipments:
Environmental chambers, temperature (humidity) chamber,Thermal shock chamber, -20 to 100 degree temperature and humidity chamber, PCT /Hast chamber (Highly accelerated stress test chamber),ESS chamber, -70~150C Walk in Laboratory Temperature Humidity Climate Test Chamber,Vacuum oven,electrodynamic vibration shaker,mechanical shock tester,environmental combined vibration chamber,etc
