• Model NO.：TS-42(A~F)
• Accessories：Viewing Window(Special Order)
• Temperature Recovery Time：<,=5min
• Conversion Time：<,=5sec
• Control Method：LCD Display Controller
• Transport Package：Plywood Case
• Specification：CE, ISO
• Trademark：ASLI
• Origin：Dongguan, China
• HS Code：85141090
• Production Capacity：30 Set,Month

Overview Product Description

Easy Operating Programmable Hot and Cold Temperature Thermal Shock Chamber is used to test the capability of material structure or composite materials to withstand the continuous environmental changes between extremely high temperature and low temperature during a short period, and therefore understand the chemical changes or physical damages caused by expansion from heat and contraction from cold in the shortest possible time. It is applicable to metals, plastic, rubber, electronics amongst other materials. The test result can be used as a reference or basis for product improvement.

Product Parameters temperature thermal shock test chamberModelTS-80(A~C)TS-150(A~C)TS-252(A~C)Internal Dimension WxHxD (mm)500x400x400600x500x500700x600x600External Dimension WxHxD (mm)1550x1950x15501600x2000x17001700x2100x1750Temperature Range of Testing zoneType A:-40 ºC~+150ºC ( 200ºC is Optional)Type B:-55ºC ~+150ºC ( 200ºC is Optional )Type C:-65ºC ~+150ºC ( 200ºC is Optional)High temperature Range of Testing zone: +60ºC~+150ºC ( 200ºC is Optional);
Low Temperature Range of Testing Zone: -10ºC~-40ºC / -55ºC / -65ºCControl Accuracy / Distribution Uniformity±0.5ºC/±2ºCInternal and External MaterialMaterial of the inner box is SUS 304# stainless steel,of the outer box is stainless steel or see cold-rolled steel with paint coated.MechanicsP.I.D+S.S.R+ Micro-computer balanced temperature control systemCooling SystemSemi-hermetic double-stage compressor(water-cooled type) /Hermetic double-stage compressor (air-cooled type)

temperature thermal shocking test instrument features:
1.It is divided into three zones: high temperature zone, low temperature zone, and testing  zone. The test sample is in static mode.
2.Using touch-control graph control as operation interface, easy to operate.
3.Applying wind route conversation to the shock method to distribute temperature to the testing zone for cold and thermal shock measurement.
4.For high temperature shock or low temperature shock, max. time is up to 999H, and max. circulation cycles are 9999 times.
5.The system can be used for automatic Circulation Shock or manual selective shock.
6.Adopt binary cooling system, with quick cooling effect. Cooling method is water cooling.
7.Can entering normal temperature. RS-232 and RS-485 communication.

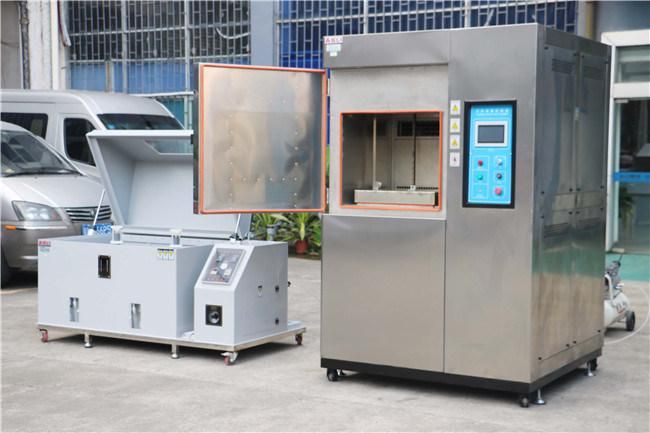

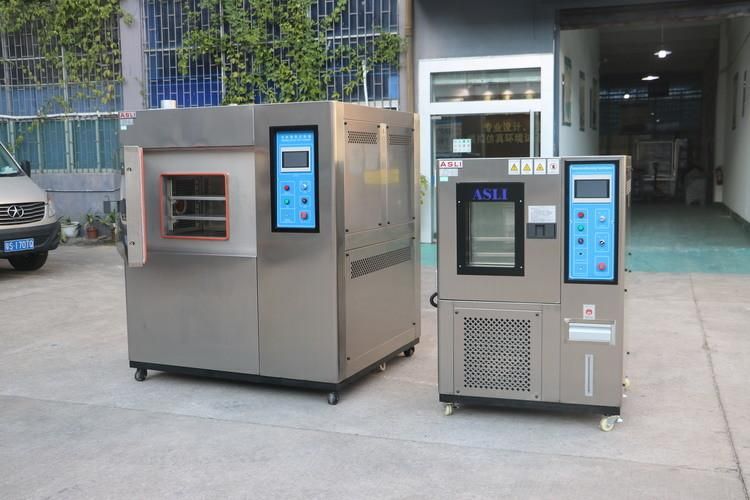

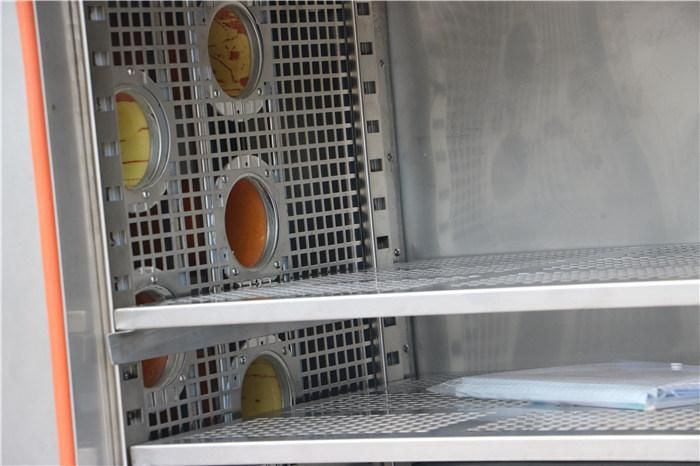

 Detailed Photos

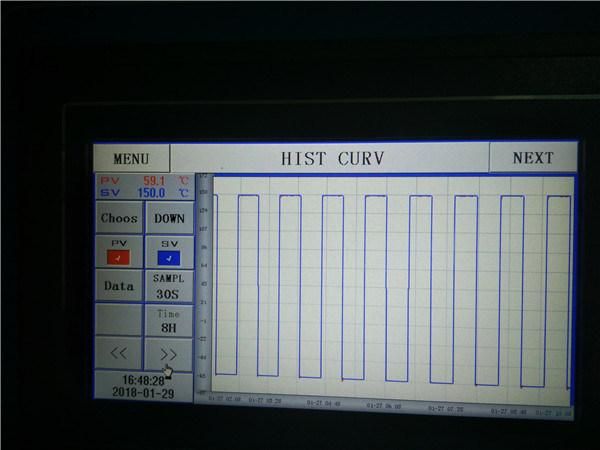

Test Data:



If you need to know Easy Operating Hot and Cold Temperature Thermal Shock Chamber Price, please feel free to contact us.
