• Model NO.：TS-42(A~F) , TS-80(A~F) , TS-150(A~F)
• Temperature Recovery Time：<,=5min
• Conversion Time：<,=5sec
• Temperature Range：-65~150c
• Application：LED, Battery
• Transport Package：Plywood Case
• Specification：CE, ISO
• Trademark：ASLI
• Origin：Dongguan, China
• HS Code：85141090
• Production Capacity：30 Set,Month

Overview Product Description

3 Cabinets Hot and Cold Impact Tester is used to test the capability of material structure or composite materials to withstand the continuous environmental changes between extremely high temperature and low temperature during a short period, and therefore understand the chemical changes or physical damages caused by expansion from heat and contraction from cold in the shortest possible time. It is applicable to metals, plastic, rubber, electronics amongst other materials. The test result can be used as a reference or basis for product improvement.

Product Parameters3 Cabinets Hot and Cold Impact Tester technical parameters:  TS-42(A~C) TS-80(A~C) TS-150(A~C) Internal Dimension
WxHxD ( mm) 400x350x350 500x400x400 600x500x500 External Dimension
WxHxD (mm) 1400x1800x1400 1550x1950x1550 1600x2000x1700 Temperature Range of
Testing zone Type A:-40 ºC~+150ºC
( 200ºC is Optional)Type B:-55ºC ~+150ºC
( 200ºC is Optional )High temperature Range of Testing zone: +60ºC~+150ºC ( 200ºC is Optional);
Low Temperature Range of Testing Zone: -10ºC~-40ºC / -55ºC / -65ºCExposure Time of High /
Low  Temperature Exposure Time of High Temperature: +60ºC ~ +150ºC (200ºC is Optional) 30MinsExposure Time of Low Temperature : -10ºC~Type A:-40ºC / Type B -55ºC /
Type C -65ºC 30MinsTemperature of
Heat-Storing Slot /
Heating TimeRT~200ºC/About  45mins Temperature of
Cool-storing Slot /
 Cooling TimeRT~-75ºC/ About 100mins Temperature Recovery Time /
Conversion Time≤5min/≤5sec  Control Accuracy /
Distribution Uniformity±0.5ºC/±2ºC Internal and External Material Material of the inner box is SUS 304# stainless steel,of the outer box is stainless steel or  see cold-rolled steel with paint coated.Insulation Material High temperature resistant , high density , formate chlorine , ethyl acetum foam insulation materialsMechanics P.I.D+S.S.R+ Micro-computer balanced temperature control system Cooling System Semi-hermetic double-stage compressor(water-cooled type) /Hermetic double-stage compressor (air-cooled type) Security Protection Devices Non-fuse breaker, high and low pressure protective switch of the compressor , refrigerator
high-pressure protective switch , failure warning system, electronic alarmAccessories viewing window(special order) Compressor French 'Tecumseh' Brand, Germany Bizer BrandPower AC220V 1∮ 3 lines ,50/60HZ, AC380V 3∮ 5 lines ,50/60HZWeight (Approx) 450 600 750 950

3 Cabinets Hot and Cold Impact Tester Features:
1.It is divided into three zones: high temperature zone, low temperature zone, and testing  zone. The test sample is in static mode.
2.Using touch-control graph control as operation interface, easy to operate.
3.Applying wind route conversation to the shock method to distribute temperature to the testing zone for cold and thermal shock measurement.
4.For high temperature shock or low temperature shock, max. time is up to 999H, and max. circulation cycles are 9999 times.
5.The system can be used for automatic Circulation Shock or manual selective shock.
6.Adopt binary cooling system, with quick cooling effect. Cooling method is water cooling.
7.Can entering normal temperature. RS-232 and RS-485 communication.

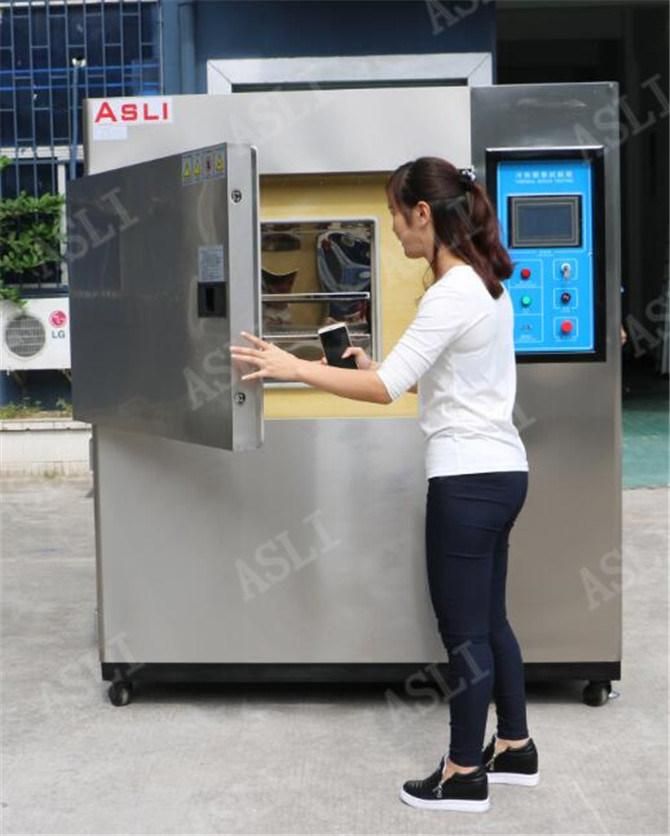

 Detailed PhotosExhibition
