Packaging Box Automatic Transport Simulation Universal Vibration Test Machine

Ai Si Li (China) Test Equipment Co., Limited
  • After-sales Service：Lifelong Technical Service Support
  • Warranty：1 Year
  • Type：Vibration Testing Machine
  • Maxcapacity：<1000KN
  • Accuracy Grade：1
  • Load Way：Electronic Load

Base Info

  • Model NO.：AS-100 , AS-200 , AS-1000
  • Loading Method：Dynamic Load
  • Display：Digital
  • Control：Manual Control
  • Weight：500-1000Kg
  • Power Source：AC220V
  • Oil Cylinder Position：Under
  • Weight (Kg)：200~600
  • Rotating Speed (Rpm)：150~300
  • Amplitude：25.4mm
  • Time Setting (Approx.)：0~999hours
  • Mode of Vibration：Reciprocating Type
  • Power：AC220V
  • Brand：Asli
  • Load (Kg)：100~1000
  • Transport Package：Standard Export Plywood Case
  • Specification：CE, ISO
  • Trademark：ASLi
  • Origin：China
  • HS Code：85141090
  • Production Capacity：100 Sets,Month

Description

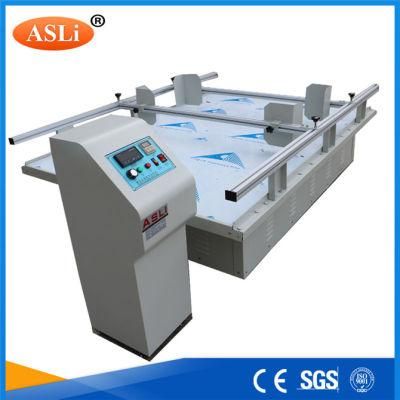

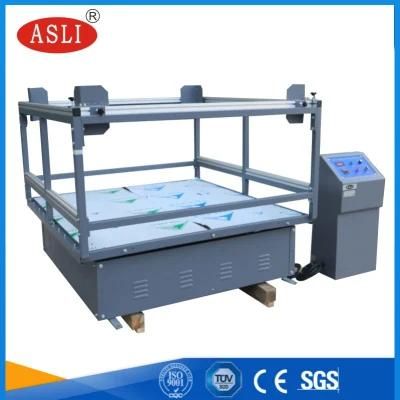

Overview Product Description

Unique design, easy to use
Low noise, with buffering function
Frame is powder coating, working table is stainless steel with aluminium alloyrail track

Automatic Transport Simulation Universal Vibration Test Machine is applied to test the vibration-resistance of packed Toys, electronics, furniture, gift, ceramics,equipment,etc., under simulated transport conditions, according to American and EU transport standard (ASTM,IEC).

 Product Parameters transport simulation vibration tester Technical Parameters: ModeAS-100AS-200AS-300AS-600    AS-1000 Load (Kg)1002003006001000Effective Area WxD (mm)1200×10001200×10001200×13001300×14001500×1500 Weight (Kg)200250350450600External Dimension
WxHxD (mm)1300×650×13001300×650×13001300×650×14001400×750×
15001600×850×
1600 Rotating Speed (RPM) 150~300 Amplitude 25.4mm(1inch), (Accord ASTM.IEC transport standard) Time Setting (Approx.) 0~999hours Mode of Vibration Reciprocating type Power AC220V or according to the equipment specification

For the package:
1. PP film first
2. Vacuum package
3. PP film again
4. 10mm thickness PU foam to avoid collision
5. stronged plywood case
6. Standard ASLI CASE MARK
 Packaging & Shipping

Packaging Box Automatic Transport Simulation Universal Vibration Test Machine


Certificate:
Packaging Box Automatic Transport Simulation Universal Vibration Test Machine

We are a long history testing equipment manufacturer, in the past 28 years, we devoted to simulation environmental testing equipment and Mechannical vibration and shock testing machine. Packaging Box Automatic Transport Simulation Universal Vibration Test Machine is our star products , and we had obtained the CE certification for this machine .


Exhibition:
Packaging Box Automatic Transport Simulation Universal Vibration Test Machine
