• Model NO.：SS-5 , SS-10 , SS-25
• Control：Manual Control
• Weight：>2000Kg
• Power Source：AC380V
• Oil Cylinder Position：Under
• Load Capacity (Kg)：5~400
• Drive Mode：Mechanical Drive
• Weight (Kg)：600~4500
• Hydraulic Oil：No #46 Hydraulic Oil
• Power：AC 380V 50,60Hz
• Trapezoid Wave：300~1000
• Transport Package：Standard Export Plywood Case
• Specification：CE, ISO
• Trademark：ASLi
• Origin：China
• HS Code：85141090
• Production Capacity：50 Sets,Month

ModelSS-5SS-10SS-25SS-50Load Capacity (Kg)  5102550Table Size (mm) 120x120200x200350x350450x450Pulse Acceleration (m/s2)Half Sine Wave150~15000150~15000150~15000150~6000Trapezoid Wave 300~1000300~1000300~1000300~1000Sawtooth  Wave150~1000150~1000150~1000150~1000Pulse width Half Sine Wave0.5~180.6~180.8~251.5~30Trapezoid Wave6~126~126~186~12Sawtooth  Wave6~186~186~186~18Drive Mode Mechanical driveExternal Dimension WxHxD (mm)800x2200x900800x2200x900850x2250x9501000x2600x1300Weight (Kg)6007009002600Hydraulic OilNo #46 hydraulic oilPower AC 380V  50/60HZ

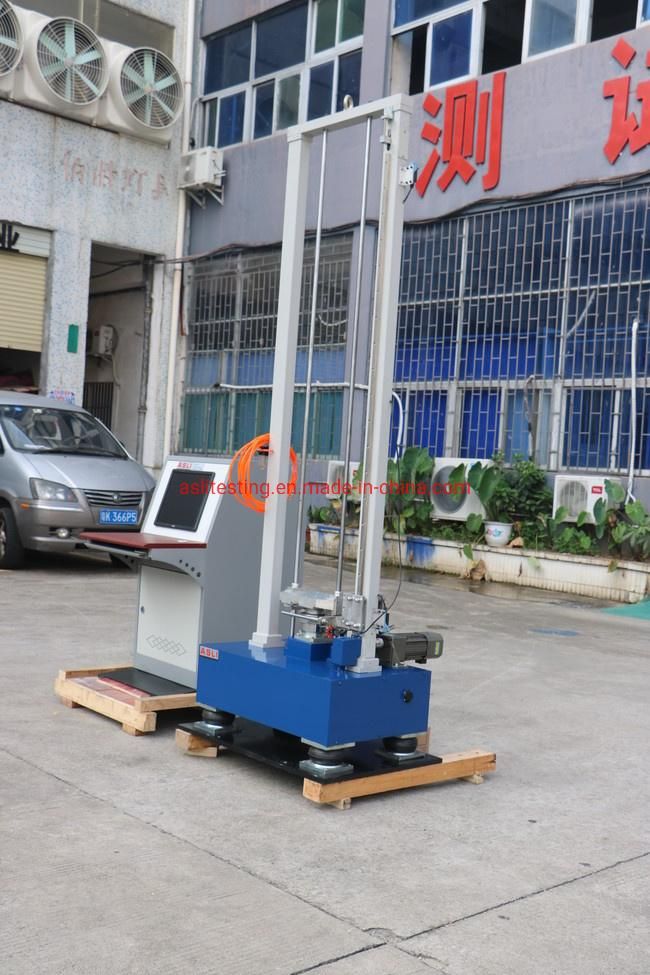

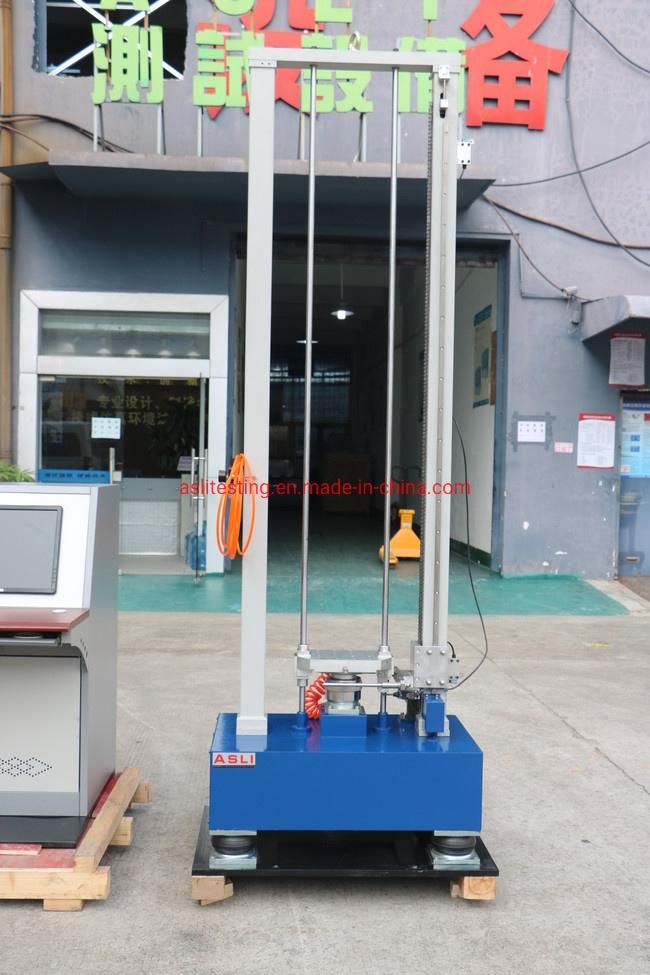

hot sell mechanical acceleration shock test machine features:
1.Built-in self-protection device, no secondary impact,
2.Shock height controlled by digital
3.Good repeatability test data
4.Signal generator provides a variety of choice: half sine wave, trapezoidal wave, sawtooth wave, square wave, etc.
5.Good vibration isolation performance, impact on the environment can control within the scope of the requirements:
6.Good Safety performance.
7.Conform to the IEC, MIL, GJB, JIS, ASTM and other international and domestic standard shock waves;


Warranty: one year free warranty for whole set machine,lifelong time maintainance.

After-sale service: feedback within 8 hours after get the call or email.

Service:OEM service,Design service,Buyer lable service.


For the package:
1. PP film first
2. Vacuum package
3. PP film again
4. 10mm thickness PU foam to avoid collision
5. stronged plywood case
6. Standard ASLI CASE MARK
