Mechanical Shock Testing Equipment Price, Acceleration Impact Test Machine
Ai Si Li (China) Test Equipment Co., Limited- After-sales Service：Lifelong Technical Service Support
- Warranty：1 Year
- Type：Impact Testing Machine
- Maxcapacity：<1000KN
- Accuracy Grade：1
- Load Way：Electronic Load
Base Info
- Model NO.：SS-5 , SS-10 , SS-25
- Loading Method：Dynamic Load
- Display：Digital
- Control：Manual Control
- Weight：>2000Kg
- Power Source：AC380V
- Oil Cylinder Position：Under
- Load Capacity (Kg)：5~400
- Drive Mode：Mechanical Drive
- Weight (Kg)：600~4500
- Hydraulic Oil：No #46 Hydraulic Oil
- Trapezoid Wave：300~1000
- Power：AC 380V 50,60Hz
- Transport Package：Standard Export Plywood Case
- Specification：CE, ISO
- Trademark：ASLi
- Origin：China
- HS Code：85141090
- Production Capacity：50 Sets,Month
Description
Overview
Product DescriptionSS-5 SS-10 SS-25 SS-50 Load Capacity (Kg) 5 10 25 50 Table Size (mm) 120x120 200x200 350x350 450x450 Pulse Acceleration (m/s2) Half Sine Wave 150~15000 150~15000 150~15000 150~6000 Trapezoid Wave 300~1000 300~1000 300~1000 300~1000 Sawtooth Wave 150~1000 150~1000 150~1000 150~1000 Pulse width Half Sine Wave 0.5~18 0.6~18 0.8~25 1.5~30 Trapezoid Wave 6~12 6~12 6~18 6~12 Sawtooth Wave 6~18 6~18 6~18 6~18 Drive Mode Mechanical drive External Dimension WxHxD (mm) 800x2200x900 800x2200x900 850x2250x950 1000x2600x1300 Weight (Kg) 600 700 900 2600 Hydraulic Oil No #46 hydraulic oil Power AC 380V 50/60HZ
mechanical shock testing equipment features:
1.Built-in self-protection device, no secondary impact,
2.Shock height controlled by digital
3.Good repeatability test data
4.Signal generator provides a variety of choice: half sine wave, trapezoidal wave, sawtooth wave, square wave, etc.
5.Good vibration isolation performance, impact on the environment can control within the scope of the requirements:
6.Good Safety performance.
7.Conform to the IEC, MIL, GJB, JIS, ASTM and other international and domestic standard shock waves;
Application:
Warranty: one year free warranty for whole set machine,lifelong time maintainance.
After-sale service: feedback within 8 hours after get the call or email.
Service:OEM service,Design service,Buyer lable service.
Certifite:
ASLi main test equipments:

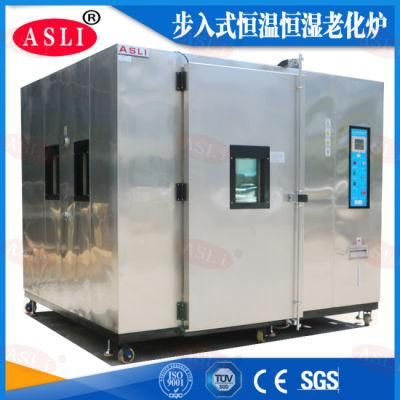

Environmental chambers, temperature (humidity) chamber,Thermal shock chamber, PCT /Hast chamber (Highly accelerated stress test chamber),ESS chamber,mechanical shock testing equipment ,Walk in stability chamber,mechanical shock testing instrument,Vacuum oven,electrodynamic vibration shaker,mechanical shock tester,environmental combined vibration chamber,etc
mechanical shock testing equipment is mainly used for small products for impact test, to assess the product's ability to withstand shock damage. It is often used in electronic components, electronic circuit boards and other environmental testing.
Product Parametersmechanical shock testing equipment technical parameters: Model
mechanical shock testing equipment features:
1.Built-in self-protection device, no secondary impact,
2.Shock height controlled by digital
3.Good repeatability test data
4.Signal generator provides a variety of choice: half sine wave, trapezoidal wave, sawtooth wave, square wave, etc.
5.Good vibration isolation performance, impact on the environment can control within the scope of the requirements:
6.Good Safety performance.
7.Conform to the IEC, MIL, GJB, JIS, ASTM and other international and domestic standard shock waves;
Application:
Warranty: one year free warranty for whole set machine,lifelong time maintainance.
After-sale service: feedback within 8 hours after get the call or email.
Service:OEM service,Design service,Buyer lable service.
Certifite:
ASLi main test equipments:
Environmental chambers, temperature (humidity) chamber,Thermal shock chamber, PCT /Hast chamber (Highly accelerated stress test chamber),ESS chamber,mechanical shock testing equipment ,Walk in stability chamber,mechanical shock testing instrument,Vacuum oven,electrodynamic vibration shaker,mechanical shock tester,environmental combined vibration chamber,etc
