• Model NO.：SAT-45 , SAT-60 , SAT-75
• Speed of Test Frame：5-10rpm
• Application：Rubber
• Transport Package：Standard Export Plywood Case
• Specification：CE, ISO
• Trademark：ASLi
• Origin：China
• HS Code：85141090
• Production Capacity：50 Sets,Month

Overview Product Description

Air-Ventilation Aging Test Chamber for Cable Wire Aging Test is used to test the material heat-resistance of polymer materials (plastics, plastic) and electronic parts, electrical insulation materials, such as: wire and cable sheathing, heat-shrinkable tubing, rubber or PVC materials.

Ventilation Conversion Formula:

  N=3590(X-Y)x2/VDt
  N:  Ventilators;
  V: Capacity of case;
  X: Power consumed when open the air valve
   Y: Power consumed when closed
   t: Temperature difference between working and environmental
   Constant: 3590
 Product ParametersVentilation type aging test chamber  technical parameters: Material of the inner box is SUS 304# stainless steel, of the outer box is stainless steel or see cold-rolled steel with paint coated.Temperature RangeRT+10ºC~200ºC (300ºC) Uniformity of Distribution±2.0ºCAir Ventilation Rate0-200 times/hr adjustable, with an ventilative adjustment button, Watt/HourSpeed of Test Frame
 ( RPM)5-10 Power  AC220V

Ventilation type aging test chamber features:
1. Easy to operation and the box using CNC machining, elegant design, innovative and adopt counterproductive handle.
2. Internal material is high imported SUS304 mirror Stainless steel or 304B TIG, outside is A3 Steel spray, it improves the texture and appearance of cleanliness.
4. You can visually observe through huge Tempered glass windows with lights anytime and clearly.
5. Good uniformity of temperature
7. With D.50mm test holes on the left side for external test power line or signal line.

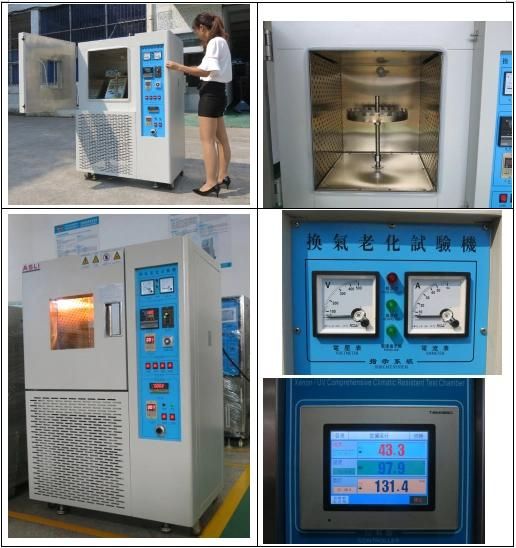

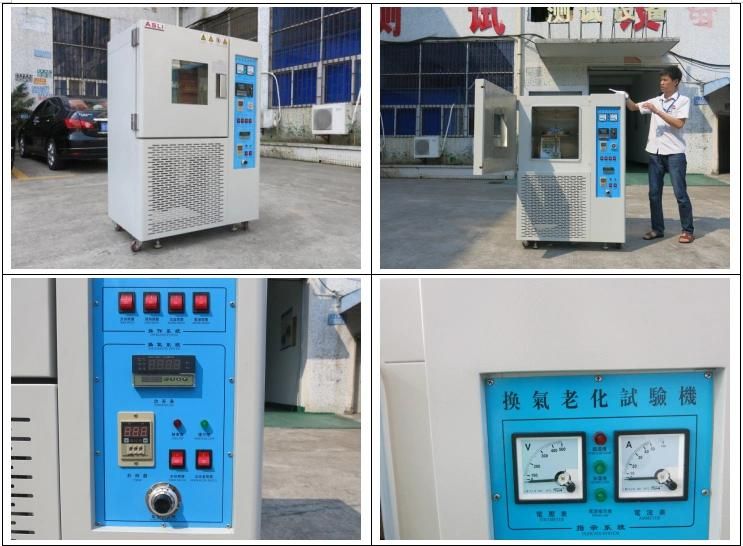

 Detailed Photos

Warranty: one year free warranty for whole set machine,lifelong time maintainance.

After-sale service: feedback within 8 hours after get the call or email.

Service:OEM service,Design service,Buyer lable service.

For the package:
1. PP film first
2. Vacuum package
3. PP film again
4. 10mm thickness PU foam to avoid collision
5. stronged plywood case
6. Standard ASLI CASE MARK



Saftey device:
1. With no-fuse protection switch
2. Control system with phase sequence protection and low voltage electrical protection.
3. With over-heat protection switch.
4. Over load protection device for refrigeration compressor.
5. Refrigeration compressor high and low voltage protection switch.
6. Refrigeration compressor over oil pressure protection.
7. Lack of Anti-phase protection system.
8. Overload protection for circulation fan motor.

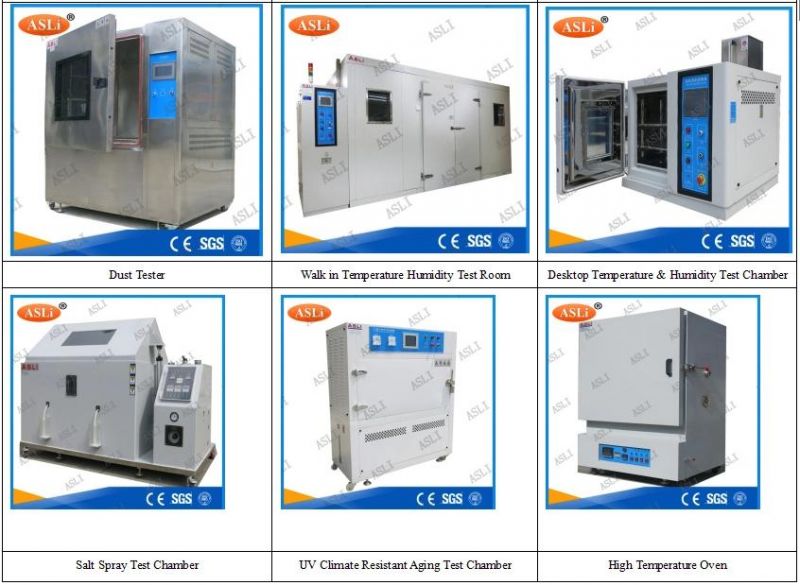

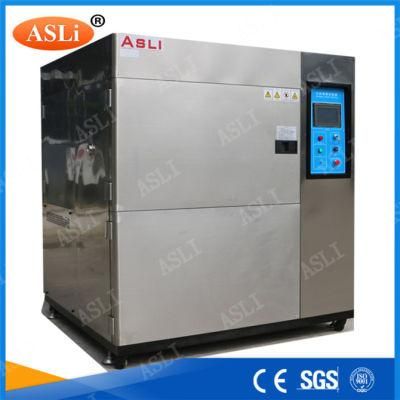

ASLi main test equipments:
Environmental chambers, temperature (humidity) chamber,Thermal shock chamber, PCT /Hast chamber (Highly accelerated stress test chamber),ESS chamber, Walk in stability chamber,Vacuum oven,electrodynamic vibration shaker,mechanical shock tester,environmental combined vibration chamber,etc
