High Frequency Vertical and Horizontal Programmable Electrodynamic Vibration Shaker System
Ai Si Li (China) Test Equipment Co., Limited- After-sales Service：Lifelong Technical Service Support
- Warranty：1 Year
- Type：Vibration Testing Machine
- Maxcapacity：<1000KN
- Accuracy Grade：0.5
- Load Way：Electronic Load
Base Info
- Model NO.：ES-20
- Loading Method：Dynamic Load
- Display：Digital
- Control：Computer Control
- Weight：0-100Kg
- Power Source：AC380V
- Oil Cylinder Position：Under
- Vibration Force：6kn
- Frequency Range：5Hz to 3500Hz
- Max. Displacement：25mm P-P
- Moving Coil：6.5kg
- Vibration Wave：Sine, Random, Shock
- Test Standard：Un38.3, IEC61215
- Transport Package：Standard Export Plywood Case
- Specification：CE, ISO
- Trademark：ASLi
- Origin：China
- HS Code：85141090
- Production Capacity：100 Sets,Month
Description
Overview
Product Parameters
Parameters:
(1) Rated Force: sine force 6000N; random force 6000N; shock force 12000N;
(2) Frequency Range: 5Hz to 3500Hz, Fixed frequency, sweep back and forth, sine, random, shock
(3) Sweep-frequency Mode: linear, logarithmic, sweep back and forth, fixed frequency
(4) Sweep-frequency Times: 1 to 32767
(5) Sweep-frequency Time: fixed frequency/single 1-3600mins, sweep-frequency curves can be displayed.

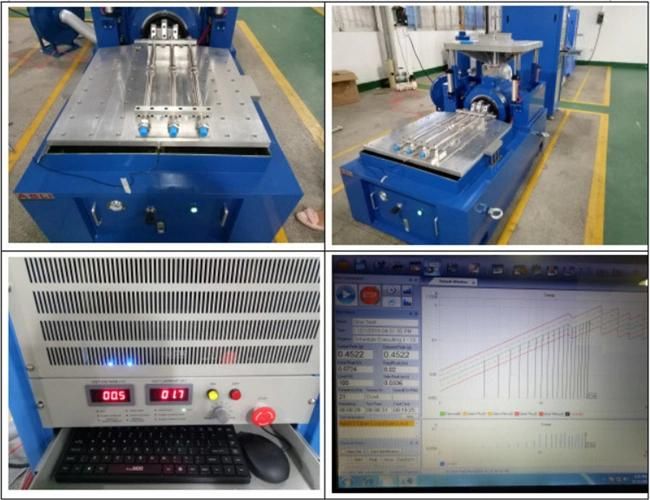

(6) Max. Acceleration 1000m/s2Detailed Photos
