High Frequency Transport Simulation Vibration Test Bench for Package Carton
Ai Si Li (China) Test Equipment Co., Limited- After-sales Service：Lifelong Technical Service Support
- Warranty：1 Year
- Type：Vibration Testing Machine
- Maxcapacity：<1000KN
- Accuracy Grade：0.5
- Load Way：Electronic Load
Base Info
- Model NO.：ES-30
- Loading Method：Dynamic Load
- Display：Digital
- Control：Computer Control
- Weight：500-1000Kg
- Power Source：AC380V
- Oil Cylinder Position：Under
- Vibration Wave：Sine
- Application：Package Carton
- Acceleration：100g
- Displacement：25mm
- Controller：Venzo
- Slip Table Size：600*600mm
- Transport Package：Standard Export Plywood Case
- Specification：CE, ISO
- Trademark：ASLi
- Origin：China
- HS Code：85141090
- Production Capacity：30 Sets,Month
Description
Rated Sine
Force (N)
Rated Random
Force (N)
Frequency
Range (Hz)
Rated displacement
(p-p)mm
Dimension of
Moving coil(mm)
Composition of Vibration Test Machine:
Vibration test bench, power amplify, cooling fan,Slip table,vertical expander

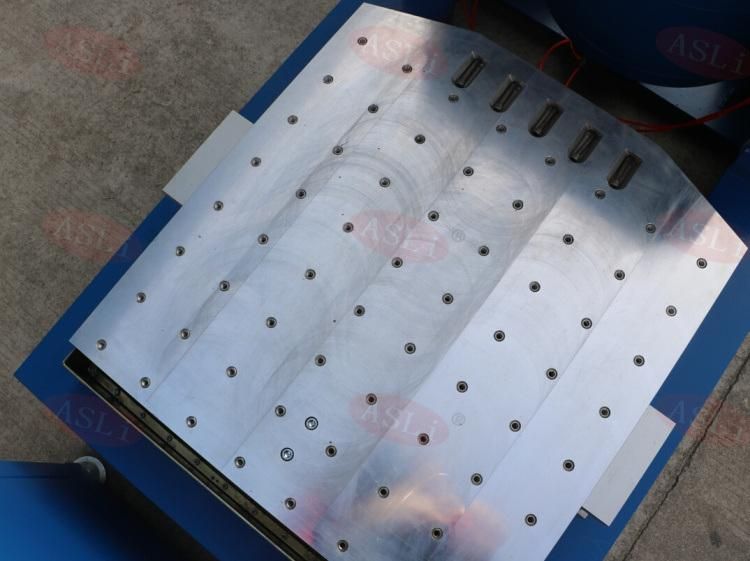

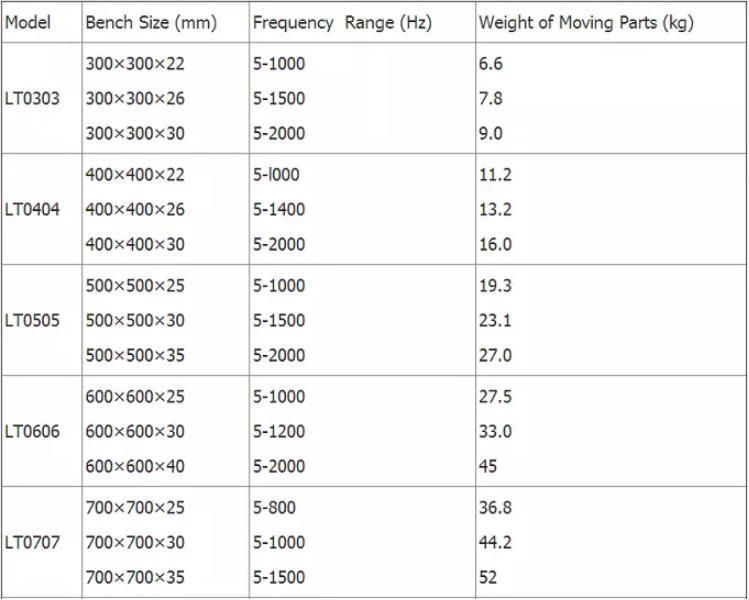

Horizontal Stand features:
Within small loading bench to realize higher acceleration and working frequency, to improve the loading capacity and performance of whole machine bench.
Horizontal bench and vibration bench are integral type, with perfect structure, convenience to install and adjust.
Static pressure track, V-shape, with capacity of slope-resistant and bias-loading resistant.
Built-in oil pump, good structure and easy operating.

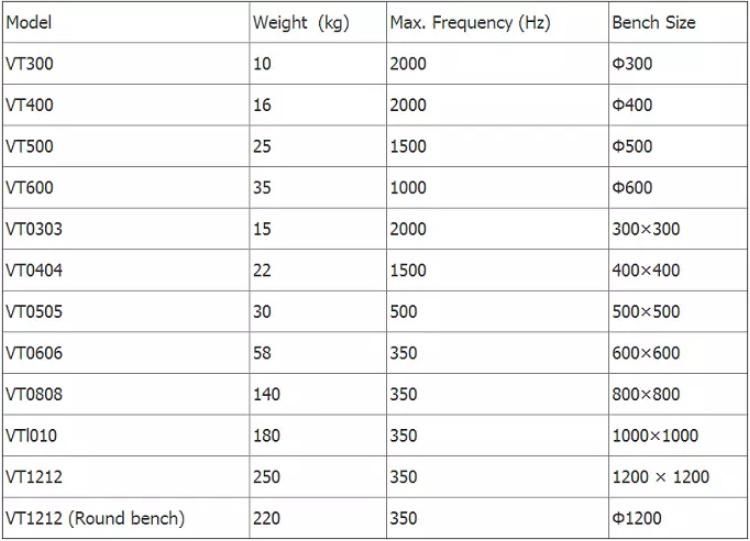

Vertical Extended-bench features:
VT vertical extended-bench and specified clamps, precision calculated, elaborate design, to ensure the customer acquired the best performance according to perfect

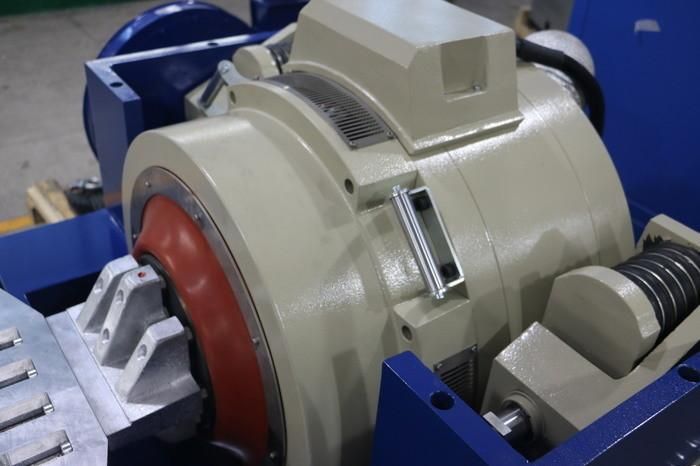

Features:
1. Well-designed dynamic circle skeleton, with a higher stage axial resonance frequency.
2. Two-magnetic circuit, magnetic flux leakage low, compact structure and rational.
3. Rocker Rod roller bearings straight and import-oriented composite body stiffness orientation, eccentric load capacity.
4. Trunnion isolation foundation dedicated to hormone use, the installation of mobile convenience.
5. Advanced technology move around the system to ensure that the dynamic circle of high reliability.
6. New duct design and enhance the cooling effect.
7. Static stiffness, dynamic stiffness of the bearing small balloon, raising the vibration table bearing capacity, improve low-frequency performance.

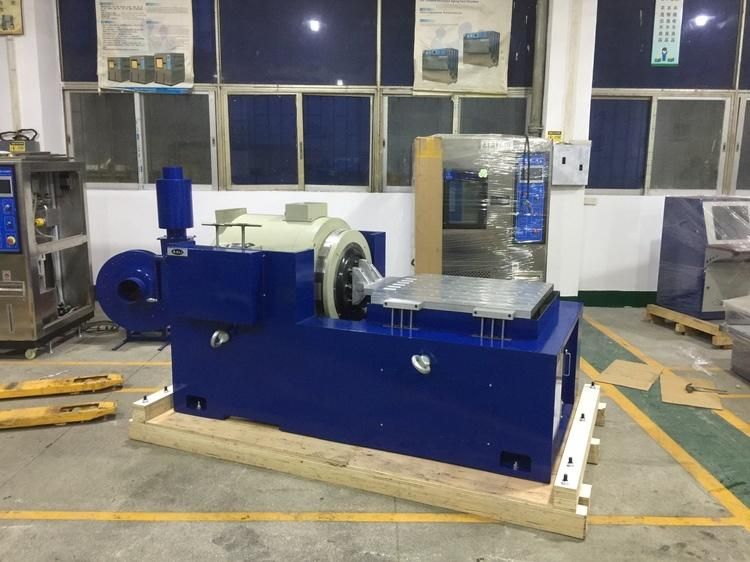

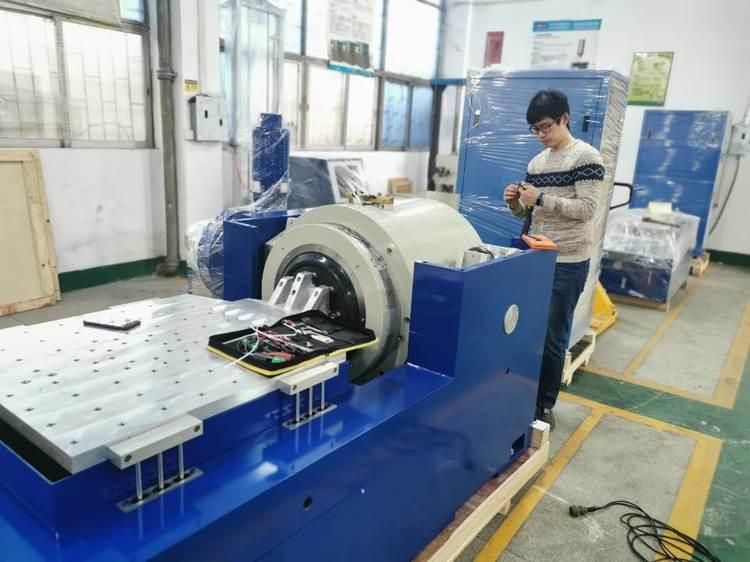

Pictures for reference:
Connector:
