• Model NO.：CS-2
• Mass Scope of Workpiece：<900kg
• Type：Material Testing Machine
• Maxcapacity：<1000KN
• Accuracy Grade：1
• Load Way：Electronic Load
• Loading Method：Static Load
• Display：Digital
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：Under
• Name：Tablet Friability Testing
• Rotation Speed：25 Rpm
• Power：220V,50Hz
• Cylinder Number：2 PCS
• Cylinder Height：156mm
• Cylinder Inner Diameter：Dia 286mm
• Cylinder Depth：39mm
• Rotation Speed Accuracy：+-1rpm
• Rotation Count：10-900 R
• Dimension：370X300X40mm
• Transport Package：Export Standard Wooden Case
• Trademark：BSIT-GM
• Origin：Made in China
• HS Code：9027809000
• Production Capacity：7 Sets,Week
• Package size per unit product：30.00cm * 30.00cm * 20.00cm
• Gross weight per unit product：30.000kg

Basic Info.

Model NO. CS-2 Mass Scope of Workpiece <900kg Type Material Testing Machine Maxcapacity <1000KN Accuracy Grade 1 Load Way Electronic Load Loading Method Static Load Display Digital Control Computer Control Weight 0-100Kg Power Source AC220V Oil Cylinder Position Under Name Tablet Friability Testing Rotation Speed 25 Rpm Power 220V,50Hz Cylinder Number 2 PCS Cylinder Height 156mm Cylinder Inner Diameter Dia 286mm Cylinder Depth 39mm Rotation Speed Accuracy +-1rpm Rotation Count 10-900 R Dimension 370X300X40mm Transport Package Export Standard Wooden Case Trademark BSIT-GM Origin Made in China HS Code 9027809000 Production Capacity 7 Sets/Week

Packaging & Delivery

Package size per unit product 30.00cm * 30.00cm * 20.00cm Gross weight per unit product 30.000kg

Product Description

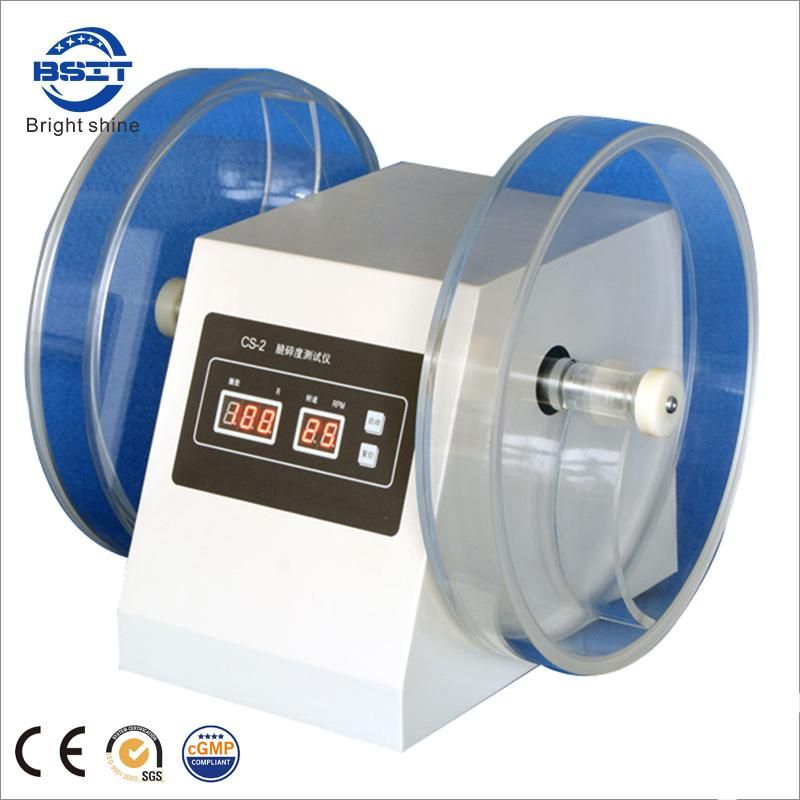

                   CS-1/CS-2/CS-3/CS-4  pharmaceutical machine Tablet Friability Tester



Product Description
CS series of instruments are used for detecting friability of tablet.

Applicable standards:
National standard( Chinese codex ) /2015
Corporate standard(Friability tester )Q/12XQ0189-2010

Features:
Two drums run synchronously. Auto stop at timing point.
The drum is made of high quality hyaline acryl.
The revolution of the drum can be preset at any time, either preset or real data is displayed on the LED.
A MPU is used to control all operations, high accuracy is achieved in testing rotary speed and circle number.
Automation: auto-test, auto-diagnose, auto-alarm.


Technical Parameter for CS series friability Tester

Model	CS-1	CS-2	CS-3	CS-4
Cylinder number	2	2	2	1
Cylinder inner diameter	Φ286mm	Φ286mm	Φ286mm	Φ286mm
Cylinder depth	39mm	39mm	39mm	39mm
Tablet fall height	156mm	156mm	156mm	156mm
Rotation speed	(20-90)rpm	25rpm	25rpm	25rpm
Rotation Speed accuracy	±1rpm	±1rpm	±1rpm	±1rpm
Rotation count	(10~900)r	100r	10-900r	100r
Rotation count accuracy	±1r	±1r	±1r	±1r
Power	220V/ 50Hz/ 60W	220V/ 50Hz/ 40W	220V/ 50Hz/ 40W	220V/ 50Hz/ 50W
Dimension	370×300×340)mm3	370×300×340mm3	370×300×340mm3	300×200×340mm3

Export carton packing



Export wooden case
