• Model NO.：THR-Volume
• Test Hole：Dia.100mm
• Communicate Interface：RS232
• Transport Package：Plywood Case
• Specification：CE, ISO
• Trademark：ASLI
• Origin：Dongguan, China
• HS Code：85141090
• Production Capacity：30 Sets,Month

 Model THR-volume (low-temperature options : A ~ F)   Inner Dimensions(cm) Customers designated space size and design  Temperature Range Low Temperature(A:25°C  B:0°C  C:-20°C D:-40°C  E:-60°C  F:-70°C) High Temperature 80°C (80°C ~150°C is optional) Humidity Range 20%~98%R.H.
(10%-98% R.H. / 5%-98% R.H ,is a special optional condition, need dehumidifier)Indication Resolution / Distribution Uniformity of Temperature & Humidity 0.1°C; 0.1% R.H/±2.5°C; ±3.5% R.H. Control Accuracy of
Temperature and Humidity ±0.5°C; ±2.5% R.H. Temperature Rising/Falling
Velocity Temperature rising approx.  0.1~3.0°C/min;
temperature falling approx.  0.1~1.0°C/min;
( The Falling Velocity Min.1.0°C /min is a optional) Cooling System Water cooled Protection Devices Fuse-free switch, overloading protection switch  for compressor,high and low voltage coolant protection switch, over-humidity & over-temperature protection switch, fuses,  fault warning system, water short storage warning protection Optional Accessories Slope for cart , Recorder, Water Purifier, Dehumidifier Compressor French Tecumseh Brand, Germany Bizer Brand Power AC 380 V(±10%),50/60HZ ,3 phase 5 Lines

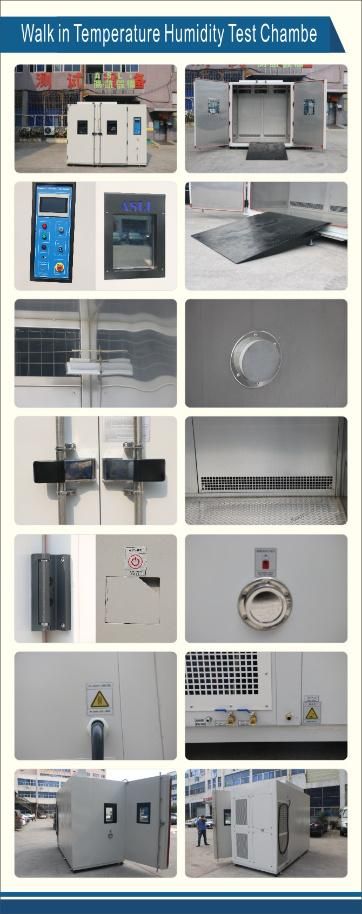

Walk In Temperature Humidity Test Chamber Vehicles Features:
1. Graceful appearance, circularly shaped body, surface treated with mist strips and plane handle with no reaction. Easy to operate, safe and reliable.
2. Rectangular double-paned viewing window for the observation of sample under test ,with interior lights
3. Double-layer-insulated airtight doors, able to insulate the internal temperature effectively.
4. Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.
5. French Tecumseh brand is used as compressor, with environment friendly refrigeration R23,R404A
6.LCD display screen, capable of displaying the set point and actual value at the same time
7. The control unit has the functions of multiples segment program editing, with ramp rates control of temperature and humidity.
8. Casters are provided for ease of mobility, with strong positioning screws.


Packaging & Shipping
Package: PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.

walk in humidity environment chamber packing detail:

Our Services
Warranty: one year free warranty for whole set machine,lifelong time maintainance.

After-sale service: feedback within 8 hours after get the call or email.

Service:OEM service,Design service,Buyer lable service.

Exhibition:
Any doubt or needs about Laboratory Walk In Environmental Temperature Humidity Test Chamber for Vehicles, please feel free to contact us.
