• Model NO.：HZBB-10A
• Loading Method：Dynamic Load
• Display：Digital
• Control：Manual Control
• Weight：0-100Kg
• Power Source：AC220V
• Oil Cylinder Position：No
• Test Range：0.8-10000
• Group：0-11
• Accuracy：0.1
• Phase Test Range：0 ~ 360 °
• Phase Measurement Accuracy：0.12 °
• Retardation Resolution：0.001 °
• Instrument Power Input：220V ± 22V, 50Hz ± 1Hz
• Dimensions：258 × 158 × 58 (mm)
• MOQ：1
• Certificate：ISO,Ec
• Transport Package：Box
• Specification：ISO,CE
• Trademark：HuaZheng
• Origin：Baoding, Hebei
• HS Code：9030820000
• Production Capacity：500set ,Year

Basic Info.

Model NO. HZBB-10A Loading Method Dynamic Load Display Digital Control Manual Control Weight 0-100Kg Power Source AC220V Oil Cylinder Position No Test Range 0.8-10000 Group 0-11 Accuracy 0.1 Phase Test Range 0 ~ 360 ° Phase Measurement Accuracy 0.12 ° Retardation Resolution 0.001 ° Instrument Power Input 220V ± 22V, 50Hz ± 1Hz Dimensions 258 × 158 × 58 (mm) MOQ 1 Certificate ISO/Ec Transport Package Box Specification ISO/CE Trademark HuaZheng Origin Baoding, Hebei HS Code 9030820000 Production Capacity 500set /Year

Product Description

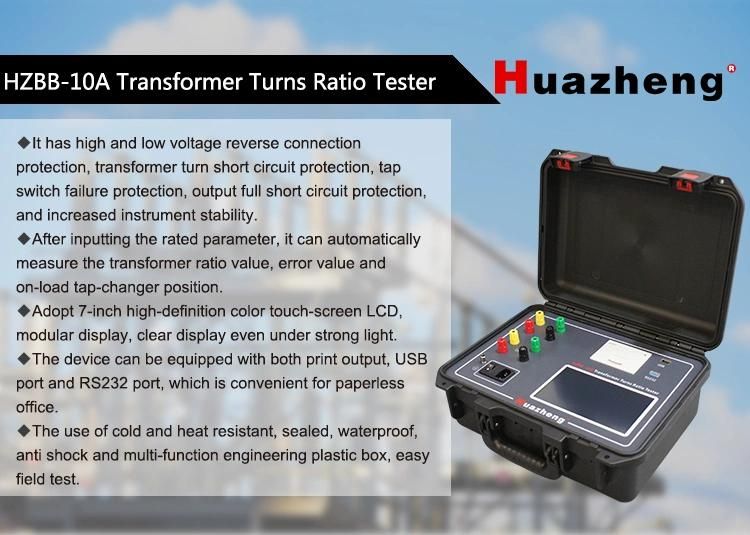

0.9-10000 Transformer Testing Equipment Automatic Variable Ratio Grouping Tester

I.Introduction:

 Before the new transformer running into operation,the transformer turns ratio or voltage ratio need to be tested to check the correctness of the transformer turns ratio, tap situaton,whether interturn short circuit, whether the transformer can operate in parallel.The traditional ratio bridge is not intuitive readings, to be converted, can only be measured by phase. ZS6810 ratio tester overcome the traditional shortcomings of the bridge test,Simple and intuitive operation, can complete threephase variable ratio or turns ratio test by once, fast, high accuracy.

II.Features:


1, test range, 0.9-10000.

2, fast  test speed, 10 seconds to complete the three-phase testing.

3, Widely applicable to the type of transformer, with Z shaped coupling transformer test function.

4, auto-complete group testing.

5, Perfect protection function high-low pressure reverse protection, short circuit protection between the transformer turns.

6, After entering the nominal parameters, automatically measure transformer turns ratio, bit error value and tap

7, Printer output measurements, English menu display, large color LCD screen.

8, Highest measurable tap transformer with 99 bits.

III.Parameter:


Active part	Voltage testing range: 0-10V Current testing range: 0-10A
Accuracy	voltage:±0.5%current:±0.5%
Working temperature	-10ºC~ +40ºC
Power	AC160V~260V

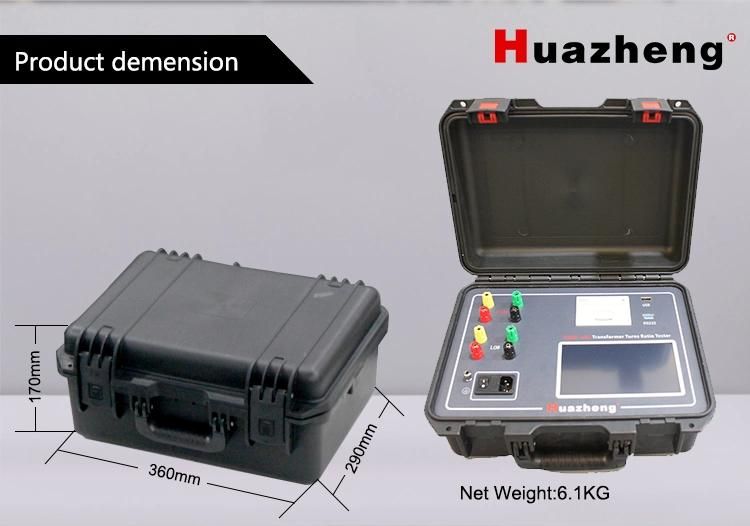

Size	32cm×24cm×13cm
Weight	32cm×24cm×13cm

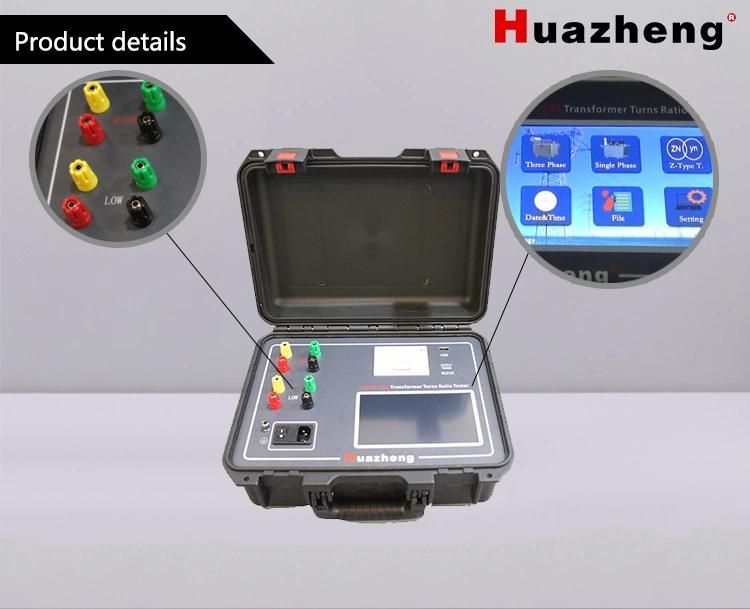

IV.Detailed Photos

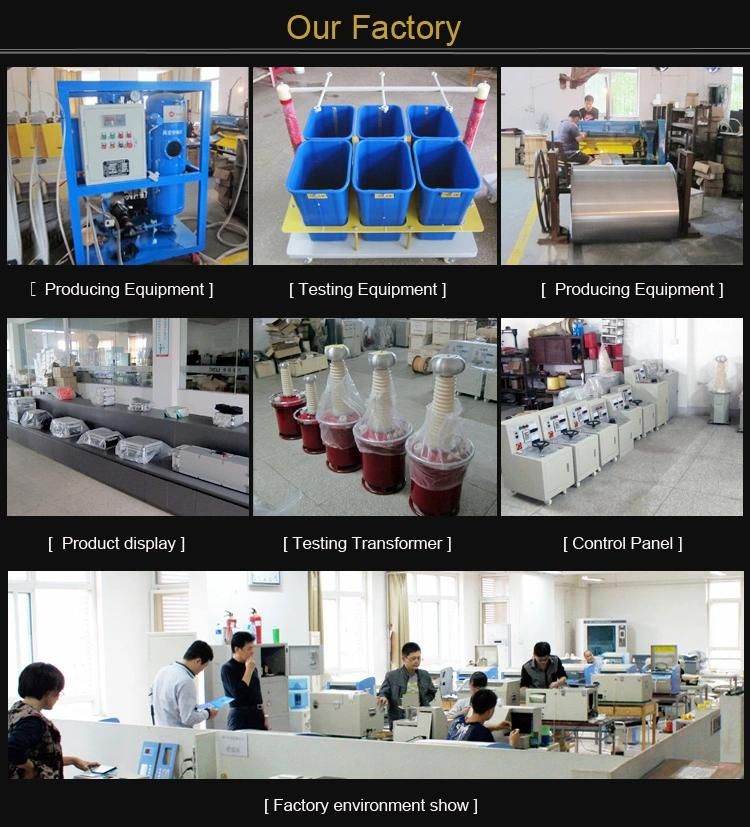

 V.Company Information

HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.
What's more, our customers come from different countries like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.
Our main products are Insulation Oil Tester, Cable Fault Locator, Power Quality Analyzer, High Voltage Generator, High Voltage Capacitor, Testing Transformer and so on.


VI.Customer Visit



VII.Exhibition

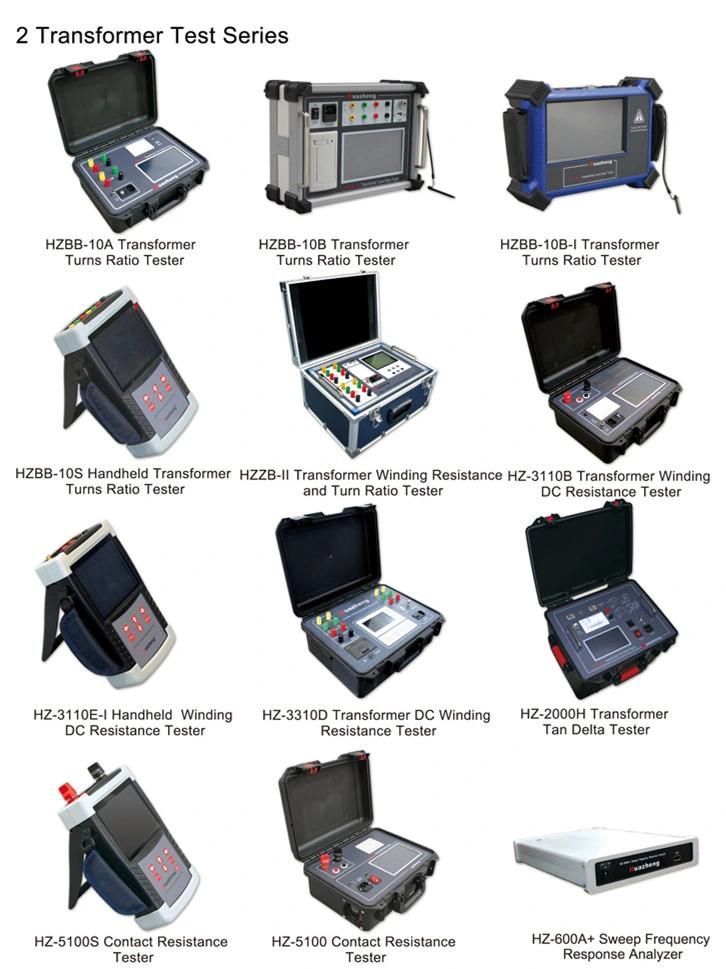

VIII.Similar Recommendation
