0.1Hz 0.02Hz Vlf Very Low Frequency Cable Withstand AC/DC Hipot High Voltage Test Set Vlf 80kv Tester

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
  • After-sales Service：1 Year
  • Variable Frequency：0.1Hz, 0.05Hz, 0.02 Hz
  • Output-Voltage：80kv
  • Stability of Frequency：Fluctuation < 0.5%
  • Construction：Controller and Booster
  • Measurement Accuracy：± 3%

Base Info

  • Model NO.：VLF
  • Positive and Negative Voltage Peak Error：≤ 3%
  • Voltage Waveform Distortion：≤ 5%

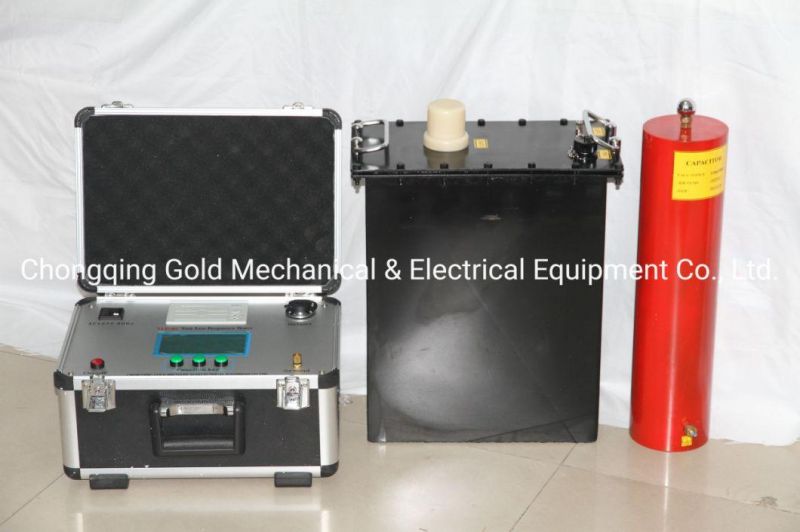

  • Construction: in Two Units：Controller and Booster
  • Input：220 ± 10% Volts AC, 50,60 Hz, Single Phase
  • Transport Package：Standard Wooden Case
  • Specification：45kg
  • Trademark：GOLD
  • Origin：Chongqing
  • HS Code：9031809090
  • Production Capacity：1000PCS, Month

Description

 OutputLoad  CapacityControllerBooster ModelVoltage/CurrentFrequency/CapacitanceSizeDim.(cm)Fuse TubeVLF-30/1.1  30KV/20mA0.1Hz  ≤   1.1uF28*37*22cm, 4kg33*18*34,25kg5A0.05Hz  ≤   2.2uF0.02Hz  ≤   5.5uFVLF-40/1.1  40KV/30mA0.1Hz  ≤   1.1uF28*37*22cm,4kg35*20*36,35kg6A0.05Hz  ≤   2.2uF0.02Hz  ≤   5.5uFVLF-50/1.1  50KV/40mA0.1Hz  ≤   1.1uF28*37*22cm,4kg37*24*39,45kg7A0.05Hz  ≤   2.2uF0.02Hz  ≤   5.5uFVLF-60/1.1  60KV/50mA0.1Hz  ≤   1.1uF28*37*22cm,4kg(33*18*34cm, 25kg)*210A0.05Hz  ≤   2.2uF0.02Hz  ≤   5.5uFVLF-70/0.5  70KV/55mA0.1  Hz,   ≤ 0.5µ F28*37*22cm,4kg33*18*34cm, 25kg;35*20*36cm, 35kg
 10A0.05Hz,   ≤ 1.0µ F0.02Hz,   ≤ 2.5µ FVLF-80/0.5  80KV/60mA0.1  Hz,   ≤ 0.5µ F28*37*22cm,4kg33*18*34cm, 25kg
37*24*39cm, 45kg12A0.05Hz,   ≤ 1.0µ F0.02Hz,   ≤ 2.5µ F
