• Model NO.：iFOAM
• Power Source：AC220V
• Oil Cylinder Position：Under
• Bucket Capacity：30L
• Voltage：220V,380V
• Asphalt Capacity：10L
• Transport Package：Standard Export Package
• Trademark：c-tech
• Origin：Hebei of China
• HS Code：90248000
• Production Capacity：2000PCS,Year

Basic Info.

Model NO. iFOAM Power Source AC220V Oil Cylinder Position Under Bucket Capacity 30L Voltage 220V/380V Asphalt Capacity 10L Transport Package Standard Export Package Trademark c-tech Origin Hebei of China HS Code 90248000 Production Capacity 2000PCS/Year

Product Description

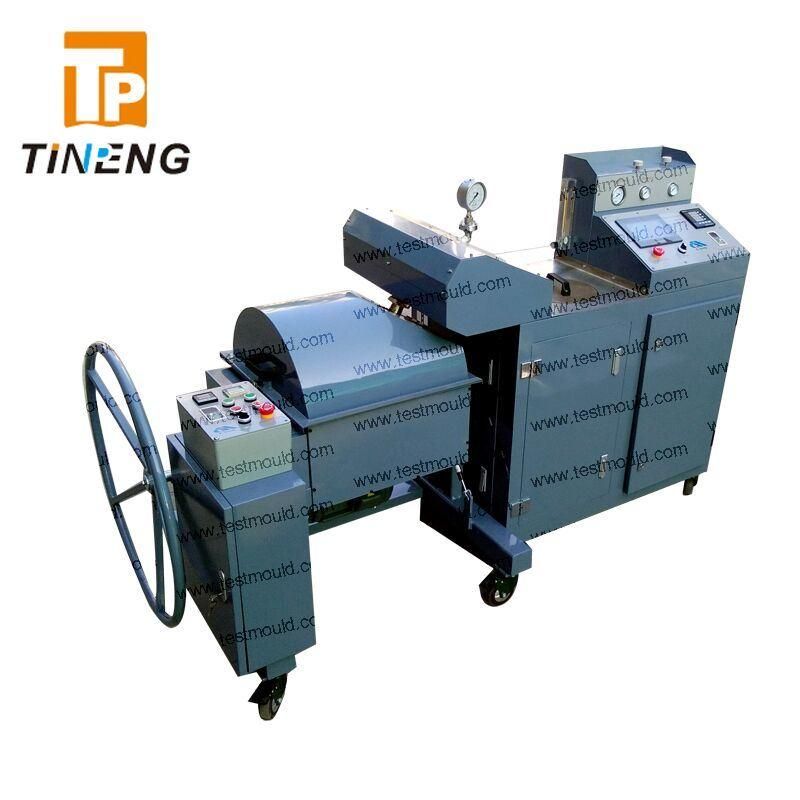

Laboratory foamed bitument/asphalt test device/ laboratory foamed bitumen testing apparatus


Technical parameters:

Specification for foaming apparatus:

1. In the mixing process, does not change the aggregate gradation

2. Speed: 60r/min (available CVT)

3. Effective mixing bucket capacity: > 30L (with heating and heat preservation)

4. Biaxial stirring structural balance

5. Voltage: 380V

6. Power: 5.5KW


Specification for mixing apparatus:

1, the working voltage: 380V, with the zero line

2, Power: 3KW

3, Temperature range: -200 ° C

4, asphalt capacity: 10 liters

5, working pressure: 0 -0.6 MPa

6, the water flow: 0-1000ml (adjustable)

7, asphalt pump speed: 10-60HZ (adjustable)

8, the overall pipeline heating, there is no clogging, better than imported products

9, can be calculated separately bitumen flow and measurement of water flow alone.

10, Foam Preparation time: 0.01S ~ 99S (adjustable)

11, temperature accuracy: +1 ° C.

Package: standard export wooden box
