AC Hipot Test Set (GDYD Series Manual Control)

HV Hipot Electric Co., Ltd.
  • After-sales Service：yes
  • Warranty：1 year
  • Max Diameter of Workpiece：2400mm
  • Mass Scope of Workpiece：<900kg
  • Type：Universal Testing Machine
  • Maxcapacity：>1000KN

Base Info

  • Model NO.：GDYD Series
  • Accuracy Grade：1
  • Load Way：Electronic Load
  • Loading Method：Dynamic Load
  • Display：Digital
  • Control：Manual Control
  • Weight：0-100Kg
  • Power Source：AC220V
  • Transport Package：Wooden Case
  • Specification：ISO, SGS
  • Trademark：HV Hipot
  • Origin：Wuhan China
  • HS Code：9030899090
  • Production Capacity：5000PCS,Year

Description

Basic Info.

Model NO. GDYD Series Accuracy Grade 1 Load Way Electronic Load Loading Method Dynamic Load Display Digital Control Manual Control Weight 0-100Kg Power Source AC220V Transport Package Wooden Case Specification ISO, SGS Trademark HV Hipot Origin Wuhan China HS Code 9030899090 Production Capacity 5000PCS/Year

Product Description

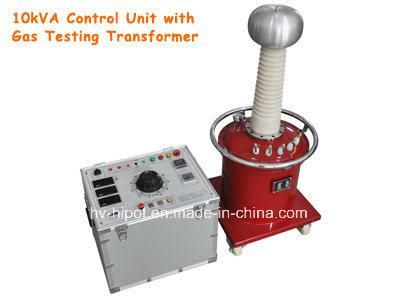

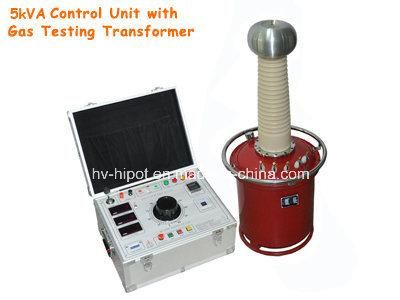

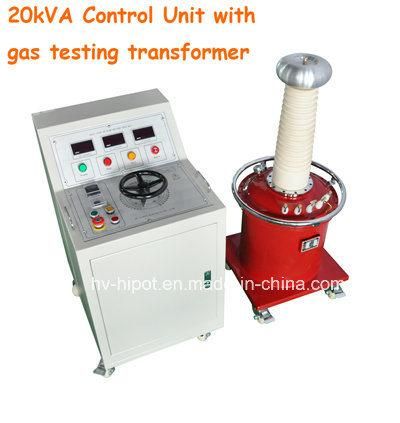

GDYD manual control AC hipot test set is portable design. It meets wide voltage range from 0-500kV. There are three types of testing transformer for boosting in measurement, oil, gas and dry testing transformer. It is also used for AC, AC/DC hipot testing.

Features

1. Monitoring high voltage side voltage, low voltage side current and indicating of zero position, power, operation, timing;
2. Over-current protection, zero-starting protection, sound and light alarm;
3. with new type time relay, time rang is more wider (1S ~ 99H);
4. Using the latest current relay, more accurate and reliable;
5. Test transformer high voltage coil is made by high quality polyester varnished wire and high voltage insulation material;
6. 5kVA and above Testing Transformer with movable iron wheel. Light weight, small size, easy to move, superior performance.
