• Model NO.：GD-61034
• Certification：IEC
• Customized：Non-Customized
• Color：Black
• Item Name：Cable Smoke Density Tester
• Function：Measurement of Smoke Density of Cables Burning Und
• Chamber Internal Size：3m*3m*3m
• Reference Standard：IEC61034-1 and IEC61034-2
• Frame Material：Stainless Steel SUS 301
• Power Supply：AC220V, 60Hz
• Warranty Period：One Year
• Transport Package：Packed in Container Veneer Case
• Specification：Refer to the specifications
• Trademark：GOLD
• Origin：China
• HS Code：9031809090
• Production Capacity：100 Set,Month

Basic Info.

Model NO. GD-61034 Certification IEC Customized Non-Customized Color Black Item Name Cable Smoke Density Tester Function Measurement of Smoke Density of Cables Burning Und Chamber Internal Size 3m*3m*3m Reference Standard IEC61034-1 and IEC61034-2 Frame Material Stainless Steel SUS 301 Power Supply AC220V, 60Hz Warranty Period One Year Transport Package Packed in Container Veneer Case Specification Refer to the specifications Trademark GOLD Origin China HS Code 9031809090 Production Capacity 100 Set/Month

Product Description

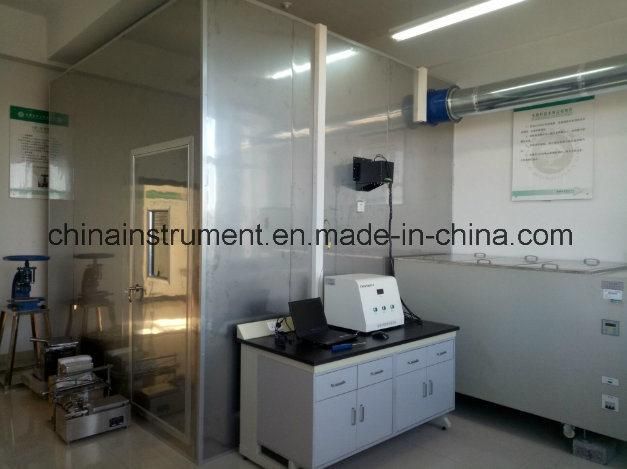

IEC 61034 Cable Smoke Density Apparatus For Building Material

Introduction:

The national cable industry vigorously develops low smoke halogen free cable and materials, such products are required to measure the smoke density of cable;The main principle of smoke density measurement is that in a specific space, cables or materials will produce smoke under specific combustion or radiation conditions, and the beam will produce attenuation after passing through the smoke. The light transmittance of the beam is measured and the specific light density and smoke density are calculated.

The smoke density tester for wire and cable conforms to GB/T1765.1~2-1998, iec61034-1 ~2:1997 "smoke density measurement of cables and optical cables burning under specific conditions", which is a test device for measuring the smoke transmittance of all insulated metal conductor cables or optical cables used to transmit electrical energy or signals when they are horizontally burned under specific conditions.
Standards:

1. IEC 61034 - 1 & 2 - Measurement of Smoke density of cables burning under defined condition;
2. BS 6853 - Code of practice for fire precautions in design and construction of passenger carrying trains;

Specifications:

1	Frame dimension	3,000(W) × 3,000(D) × 3,000(H)
2	Frame material	Stainless Steel SUS 301
3	Transparent sealed window	100 × 100 mm
4	Foundation Fixed	Fixture unit
5	Light Source Power	DC12V, 100W
6	Light Source Focus Angle	48˚ - 4.5˚
7	Light Source Focus Intensity	1:20
8	Photo Cell Diameter	Ø45 mm
9	Photo Cell Cell Type	Selenium Cell
10	Exhaust Blower Fan Flow	7 m3/min ~ 15 m3 /min
11	Exhaust Blower Size	246(W) x 220(D) x 205(H) mm
12	Exhaust Blower Material	Stainless Steel (Inner Fan)
13	Exhaust Blower Power	AC220V, 60Hz, φ1, 210W
14	Exhaust Blower Flow Rate(max)	8.0 m3 / min
15	Power Supply	AC220V, 60Hz
16	Torque	normal 300kg.f.cm , max 480 kf.f.cm
17	Rotation Angle	0~90˚ ± 5˚
18	Wind Velocity	≤ 15m/sec
19	Control Rack Dimension	(W) 730 X (D) 650 X (H) 1,400

Features:

1. Chamber internal area is 3000mm±30mm and it's structured as Cubic Enclosure with appropriate fixed iron frame angle;
2. It's configured with a door with test glass windows and in both faces of the opposite side there's a sealed transparent window (minimum 100mmX100mm) with a horizontal light measure system that allows light penetration;
3. Designed to prevent direct sunlight exposure and severe weather change in Enclosure;
4. Photocell and Light Source are located in the middle part of both windows of the wall surface in the opposite side to avoid physical contact;
5. A lamp to provide regular light is installed;
6. Two types of auto Filter system (Carrusel) are installed to automatically calibrate the transmissivity of light;
7. The reduction of light by smoke is measured using Photocell;
8. In order to verify accordingly the intensity of radiation to measure light change by self-emission, the equipment has been designed to fit various kind of filter in the Light Source;
9. Support system to allow separate fitting of Light Source and Photocell in the outer wall;
10. The Light Source is a halogen lamp with a clean crystal lamp and tungsten filament;
11. Average power : 100W, Average voltage: DC12v, Average velocity of light : 2000 lm~3000 lm, and Average color temperature : 2800K~3200K;
12. The Receptor Photocell is selenium or silicone type and has a spectrum reaction conform to Photopic Observer (similar to a human eye) of the International Commission on Illumination (CIE);
13. A heating system is installed within the cube to swiftly match the standard temperature (25ºC±5ºC) in the initial test;
14. We seek tester's safety and convenience through an Auto ignition system;

Test Result:

1. Flameout time(min);
2. Time to max Ao;
3. Min light transmittance (%);
4. Add photo feature of carbonization area;
