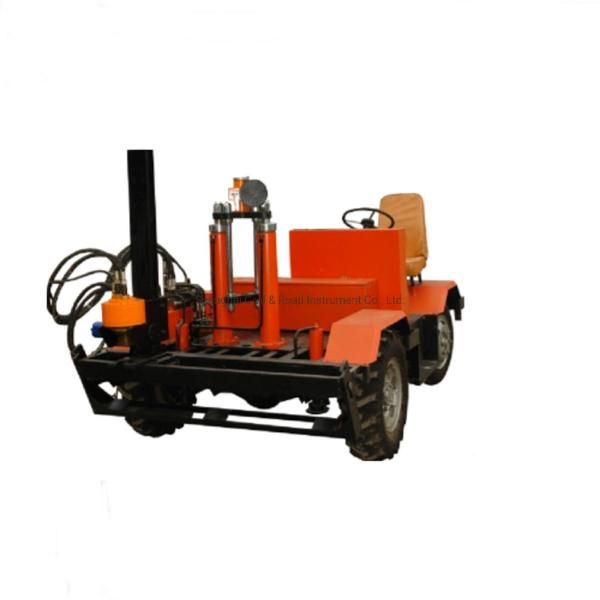

Stctc-2 CPT Vehicle

Shanghai Civil & Road Instrument Co., Ltd.

Max Diameter of Workpiece：<500mm
Mass Scope of Workpiece：180kgs
Type：CPT Vehicle
Maxcapacity：No
Accuracy Grade：1
Load Way：No

Base Info

Model NO.：STCTC-2
Loading Method：No
Display：Digital
Control：Manual Control
Weight：100-500Kg
Power Source：AC220V
Oil Cylinder Position：No
Product Name：Stctc-2 CPT Vehicle
Full Set Include：Running Gear, Anchorage System,Penetration System
Transport：Four Wheel Manual Drive
Drive Type：Rear Drive
Turning Radius：No Higher Than 4m
Power Force：Electrical Starting Diesel Engine
Power：No Lower Than 22HP, Rotate: 2200-2600rpm
Anchorage Type：Automatic Rack Type Anchorage
Penetration Speed：0.8-1.2m,Min; Rated Penetration Power: 200kn
Pull out Speed：2.5m,Min; Pull out Power: 220kn
Working Medium：68# Hydraulic Oil
System Oil Pressure：14MPa
Capacity of Oil Tank：100L
Penetration Type：Fixture Blocks Type Press and Pull out
Running Speed：25-40km,H
Transport Package：Wooden Case
Specification：4CBM
Trademark：SHTG
Origin：China
HS Code：9031809090
Production Capacity：100PCS,Month

Description

Basic Info.

Model NO. STCTC-2 Loading Method No Display Digital Control Manual Control Weight 100-500Kg Power Source AC220V Oil Cylinder Position No Product Name Stctc-2 CPT Vehicle Full Set Include Running Gear, Anchorage System,Penetration System Transport Four Wheel Manual Drive Drive Type Rear Drive Turning Radius No Higher Than 4m Power Force Electrical Starting Diesel Engine Power No Lower Than 22HP, Rotate: 2200-2600rpm Anchorage Type Automatic Rack Type Anchorage Penetration Speed 0.8-1.2m/Min; Rated Penetration Power: 200kn Pull out Speed 2.5m/Min; Pull out Power: 220kn Working Medium 68# Hydraulic Oil System Oil Pressure 14MPa Capacity of Oil Tank 100L Penetration Type Fixture Blocks Type Press and Pull out Running Speed 25-40km/H Transport Package Wooden Case Specification 4CBM Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/Month

Product Description
