• Model NO.：YXEL-343
• Temperature Fluctuation：+,-3c
• Humidity Range：80%Rh~98%Rh
• Sample Shelf Size：500*480mm
• Black Board Temperature：30c~70c
• Black Board Temperature Fluctuation：+,-1c
• Power Supply：3 Phase AC 380V 50Hz
• Transport Package：Plywooden Cartons
• Specification：CE, ISO
• Trademark：Yuanyao
• Origin：Guangdong, China
• HS Code：9031200000
• Production Capacity：50sets,Month

Model No.YXEL-080YXEL-150YXEL-225YXEL-408YXEL-800YXEL-1000

Inner chamber size

W×H×D(cm)

40×50×4050×60×5050×75×6060×85×80100×100×80100×100×100

Exterior chamber size

W×H×D(cm)

Depends on inner chamber sizeSpecTesting temperature rangeRoom temperature +10~70ºCTesting humidity range50%RH~98%RHRaining time1 to 9999minutesRaning duration1 to 240 minutesXenon lamp power6kw with 500 hours lifeAccuracy±0.1ºC,±1%RHSystemTemp controllerImported LED type digital PID+SSR controllerSensorPT 100W/MVTime controllerProgrammable time controller HeatingNichrome heaterHumidifyingStainless steel humidifierBlack board temp.Metal black board thermometerWaterAuto water filling systemCirculationQuiet motor and fanMaterial Exterior chamber materialCold-rolled steel+Powder coating Interior chamber materialSUS#304 Stainless steelShelvesSUS#304 Stainless steelSealingHigh temp. resistant silicone sealStandard configurationGlass window x 1pcs,rack x 2pcs,Xenon lamp x 2pcsSafety

Protection of leakage,short circuit,overtemp,

water shortage,overcurrent

Power supplyAC 3phase 380V 60/50HzRoom condition5ºC~+30ºC≤85%R.HCustomization serviceNon-standard or special requirements are all welcome
Control system:
1. High precision temperature control instrument
2. Programmable time controller (set test time, illumination time, condensation time, spraying time )
3. Electronic components: Adopt product of national joint venture company
4. Main configuraton: Temperature controller , time controller, illumination time accumulator, digital displayed ampere meter, inflow magnetic valve, UV lamp.

Structure and material:
1. Working room, smaple shelf, liner and shell are made from SUS#304, automatic control for inflow.
2. Stainless steel heater is equipped with water-break protection device. It can automatically cut off the power in the humidifying system in the case of water shortage, the finned air heating tube is made of stainless steel materials, the over temperature protection device is installed in the vabinet, can effectively guarrantee test.

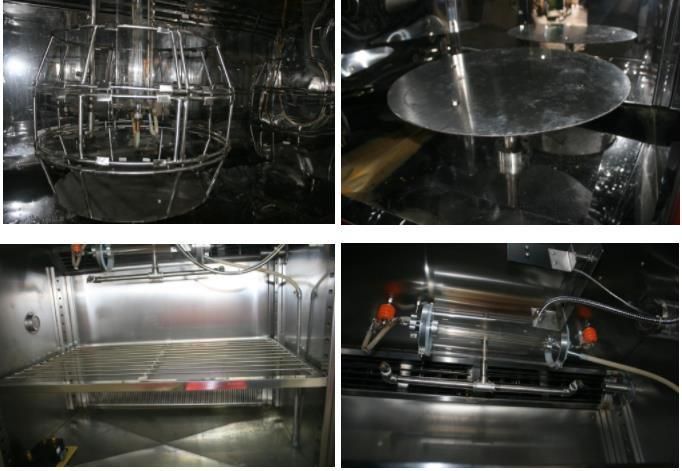

Detailed images:

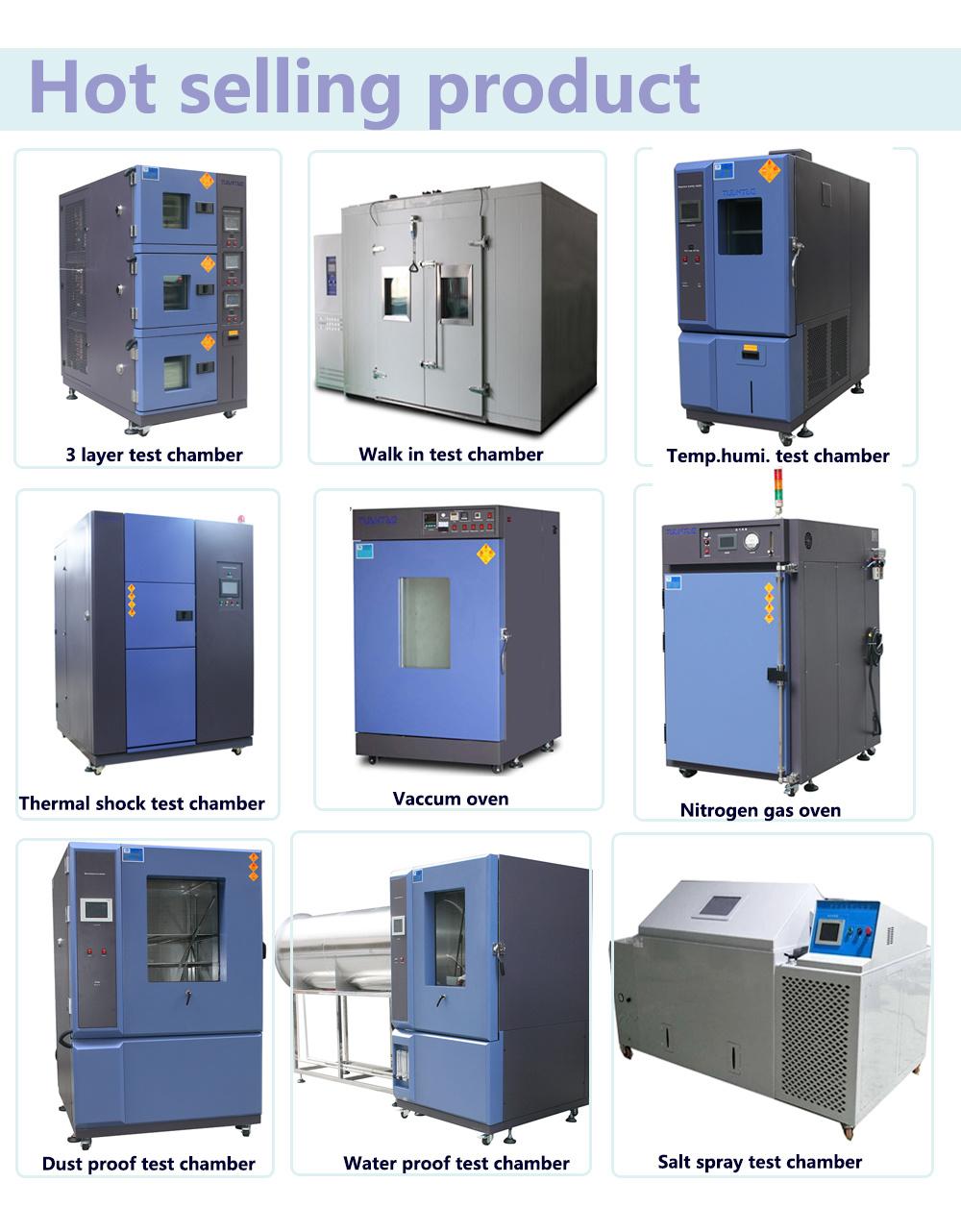

Besides xenon test chamber, we can also manufacture below items:



If you are interested in our xenon test chamber, please contact us for more details, we will happy to help you.
