Bituminous Mix Automatic Marshall Stability and Flow Value Test Apparatus
Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.- Warranty：12 Months
- Weight：100-500Kg
- Power Source：AC220V
- Product Name：Automatic Marshall Stability and Flow Value Test a
- Operate Type：Automatic
- Maximum Load：50kn
Base Info
- Model NO.：GD-0709A
- Measuring Range：0~40kn
- Measuring Bias：Less Than 0.1kn
- Overload Protection：Automatically Protect When Load Is Over 39kn
- Vertical Deformation：Range0~20mm, Bias Less Than 0.05mm
- Lifting Rate for Pressure Machine：50mm,Min
- Communication Port：RS232
- Ambient Temperature：0~60 Celsius
- Dimension：600*380*840mm
- Motor Power：550W
- Transport Package：Wooden Case for Automatic Marshall Stability and F
- Trademark：GOLD
- Origin：Chongqing, China
- Production Capacity：100 Sets, Month
Description
Optional accessories1.HWY-1 Low temperature thermostatic water bath
2.GD-0702 Marshall electric compactor
IV. Marshall Stability Testing Equipment Series
2.GD-0702 Marshall electric compactor
IV. Marshall Stability Testing Equipment Series
| Parameter | GD-0709A | GD-0709A-1 |
| Maximum load | 50KN | 50KN |
| Measuring range | ≤40KN | ≤40KN |
| Measuring bias | ≤±0.1KN | ≤±0.1KN |
| Overload protection | Automatically protect when load is over 39KN | Automatically protect when load is over 39KN |
| Vertical deformation | Range 0~20mm, bias≤±0.05mm | Range 0~20mm, bias≤±0.05mm |
| Lifting rate for pressure machine | (50±5)mm/min | (50±5)mm/min |
| Communication port | RS232 | RS232 |
| Power supply | AC220V±10%,50Hz | AC220V±10%,50Hz |
| Ambient temperature | 0~60ºC | 0~60ºC |
| Dimension | 600*380*840mm | 650*380*840mm |
| Motor power | 550W | 550W |
| Net weight | 98kg | 98kg |
| Materials | adopts new electroplating technology. Matt metal, high hard hardness, anti-wear, durable. | |
| Pressure sensor | data collection points: 300 | data collection points: 500 (adopts the imported pressure sensor, accuracy: 0.0001 KN) |
| LCD Display | imported colored large screen PLC controller, it can display the test data of stability value and flow value. It also can display the graph,test result and test time. |
V. Our packing and delivery:
You can choose by truck ,by sea or by air

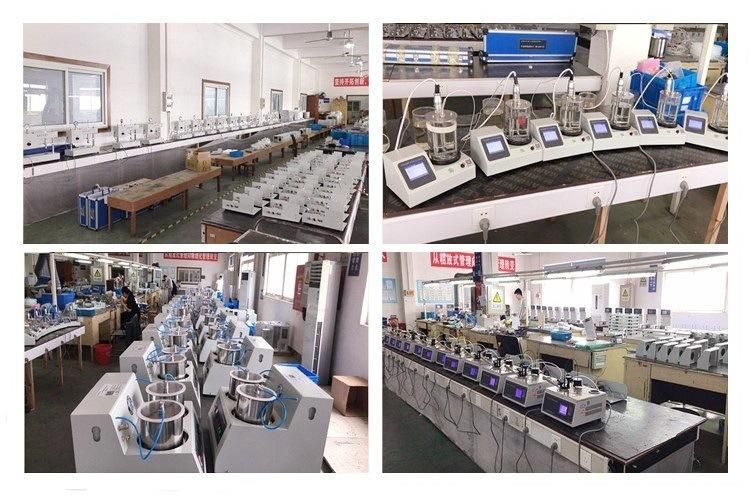

VI. About Our company:
Chongqing Gold Mechanical&Electrical Equipment Co.,Ltd is a professional manufacturer of Petroleum Products test kits in China.
Our products are sold to most countries in the world and they are highly popular because our good quality and after-sale service.
