• Model NO.：GDZG-300 40,5
• Ripple factor：≤0.5%
• Working mode：Intermittent use; Max. continuous time 30mins for
• Transport Package：Wooden Case
• Specification：ISO, SGS
• Trademark：HV Hipot
• Origin：Wuhan China
• HS Code：9030339000
• Production Capacity：1000PCS,Year

Basic Info.

Model NO. GDZG-300 40/5 Ripple factor ≤0.5% Working mode Intermittent use; Max. continuous time 30mins for Transport Package Wooden Case Specification ISO, SGS Trademark HV Hipot Origin Wuhan China HS Code 9030339000 Production Capacity 1000PCS/Year

Product Description

I. General Information

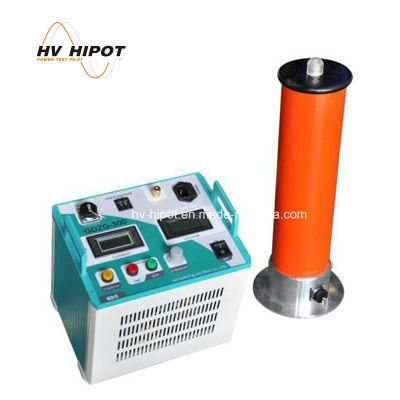

GDZG-300 series of DC Hipot Test Set is used for testing DC high voltage for zinc oxide arrester, magnetic blowing arrester, power cables, generators, transformers, switches and other equipments. It is suitable for electric power branch, power department of factories, scientific research units, railway, chemical industry, and power plants.


II. Features

• With Medium Frequency Voltage-multiplying circuit and PWM pulse width modulation technology, big power IGBT components.
• Higher voltage stability, smaller ripple coefficient.
• 75% VDC 1mA function button, convenient for Zinc Oxide arrester test.The accuracy is ±1% of the reading±0.2kV.
• High precision, exact measure, figure display, with good anti-interference function.
• High stabilization of voltage regulation and regulates voltage smoothly from zero.
• With protection functions of over-voltage, over-current, returning-zero, ground.
• Negative polarity output, zero-start, continuous adjustment.
• Number dial switch for over-voltage set function, which can display voltage value clearly.
• △-Y shoring design for HV booster, which is portable to carry.

IV. Specifications


Power supply	AC 220V±10%,50Hz,single phase
Rated voltage	40kV
Rated current	5mA
Rated power consumption	200W
Voltage meter accuracy	1.0% of the reading ± 2digit
Current meter accuracy	1.0% of the reading ± 2digit
Ripple factor	≤0.5%
Voltage stability	Random fluctuation, when power supply voltage change±10%,≤1%
Over-load ability	10mins @ No-load voltage is 110% of rated voltage; Max.charge current is 1.5 times of rated current
Working mode	Intermittent use; Max. continuous time 30mins for one time
Working environment	temperature -10ºC--40ºC;  Relative humidity: ≤85%(at 25ºC,no condensation)
