En/ IEC 61000-4-5 6kv Lightning Surge Simulator / Generator for EMC Compliance Test (SUR S6)

Shanghai Shinegil Trading Co., Ltd.
  • Max Diameter of Workpiece：2000mm
  • Mass Scope of Workpiece：<900kg
  • Type：Surge Immunity Tester
  • Maxcapacity：Non
  • Accuracy Grade：Non
  • Load Way：Electronic Load

Base Info

  • Model NO.：SUR S6
  • Loading Method：Dynamic Load
  • Display：Digital
  • Control：Computer Control
  • Weight：0-100Kg
  • Power Source：AC220V
  • Oil Cylinder Position：Non
  • Product Name：Surge Simulator
  • Application：EMC Surge Immunity Testing
  • Standard：IEC, En 61000-4-5
  • Open-Circuit Voltage：0.2~ 6kv
  • Short-Circuit Current：0.1~ 3ka
  • Surge Waveform：1.2,50us 8,20us
  • Coupling/ Decoupling Network：Built-in, 1phase 3wire 16A
  • Custom Service：Yes
  • Warranty：1 Year
  • Certificate：ISO9001
  • Transport Package：Export Wooden Case, Pallet
  • Specification：weight: 45kg
  • Origin：Shanghai

Description

ModelSUR S6Surge WaveformOpen-circuit voltage wave: 1.2/50μs
Short-circuit current wave: 8/20μsOpen-circuit Voltage0.2~ ± 6KVShort-circuit Current0.1~± 3KAPolarityPositive/ negative/ alternatingPhase Angle0~ 359°synchronous, asynchronous, or automaticEffective output impedance2Ω (common mode 12Ω)Coupling/ decoupling networkBuilt-in, single-phase three-wire, 16A
(customer specific on demand)Coupling modeDifferential mode 18μF, common mode 9μF/ 10ΩCount1~ 9999Interval10~ 9999sPower SupplyAC 220V ±10% 50/ 60HzAmbient Temperature15ºC~35ºC
Company Information
Shanghai EMCSOSIN/ Shanghai SHINEGIL is a professional supplier that specialized in R&D, manufacturing and selling EMC testing equipments. We've been committed to the electromagnetic compatibility (EMC) testing field, offering professional equipments which are widely used in electronics manufacturing, electric power, new energy, telecommunication, aerospace, teaching, renewable energy, automotive and other industries, as well as scientific research. We provide customers with professional EMC system integration solutions. We are also ISO9001 certified.
Our self-developed electrostatic discharge (ESD) generator, electrical fast transient (EFT)/ burst generator, lightning surge generator, voltage dips simulator and so on enjoy a high reputation both at home and abroad. To provide best service and create value for customers is our eternal pursuit!
En/ IEC 61000-4-5 6kv Lightning Surge Simulator / Generator for EMC Compliance Test (SUR S6)

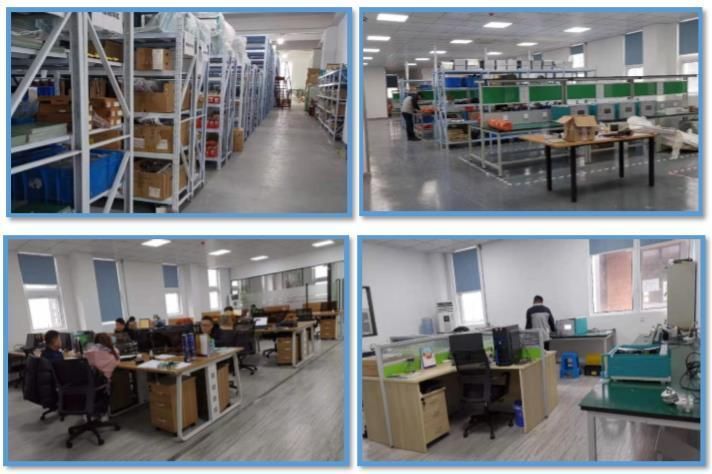

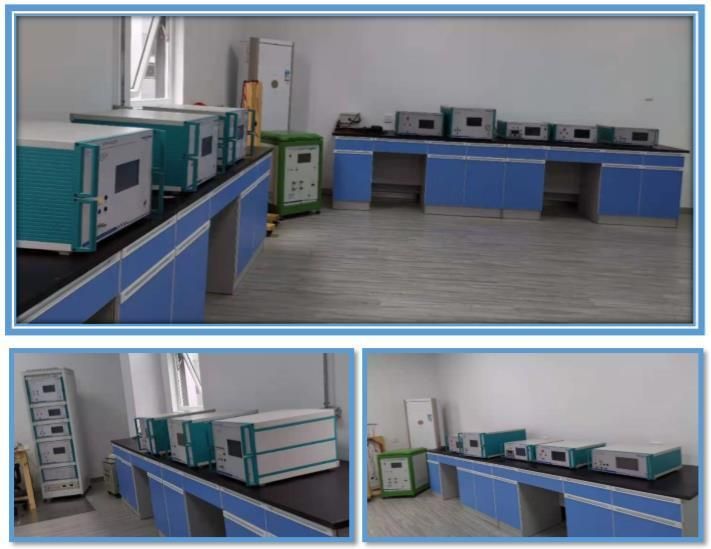

Manufactory and Office
En/ IEC 61000-4-5 6kv Lightning Surge Simulator / Generator for EMC Compliance Test (SUR S6)
En/ IEC 61000-4-5 6kv Lightning Surge Simulator / Generator for EMC Compliance Test (SUR S6)
En/ IEC 61000-4-5 6kv Lightning Surge Simulator / Generator for EMC Compliance Test (SUR S6)

Qualification and Certificate
En/ IEC 61000-4-5 6kv Lightning Surge Simulator / Generator for EMC Compliance Test (SUR S6)
En/ IEC 61000-4-5 6kv Lightning Surge Simulator / Generator for EMC Compliance Test (SUR S6) En/ IEC 61000-4-5 6kv Lightning Surge Simulator / Generator for EMC Compliance Test (SUR S6)


Our Client
En/ IEC 61000-4-5 6kv Lightning Surge Simulator / Generator for EMC Compliance Test (SUR S6)

Packing
En/ IEC 61000-4-5 6kv Lightning Surge Simulator / Generator for EMC Compliance Test (SUR S6)

Our Service
1) Our product engineers and application technicians answer various questions and deal with emergencies in real time.
2) Professional engineers will guide the installation & debugging of equipments so that users can operate devices independently and solve problems in daily test.
3) Free warranty for 1 year and lifelong maintenance.
4) Free upgrade service for the users is available as per international standard updates requirements.

If you have any further query on EMC/ EMI testing equipments, electrical fast transient/ burst generators, pls do not hesitate to contact us at linda<at>shinegil<dot>com

We look forward to working with you sincerely!
