STANDARD PENETRATION TEST
ASTM D1586-84 SPLIT-BARREL SAMPLER
(RE-APPROVED 1992)
Steel and plastic catcher
Cutting shoe and nose cone
Adapter Sampler Assembly
COMPRISES:
SPT-AS SAMPLER ASSEMBLY - CONSIST OF:
SPT-AS1 Split-Barrel Sampler, Hardened machined steel,
1 3/8'' id., 18'' length
SPT-AS5 STP Plastic Catcher
SPT-AS2 SPT Adapter SPT-AS6 SPT Cutting Shoe
SPT-AS3 A pair of SPT Split Spoons SPT-AS7 SPT Nose Cone
SPT-AS4 SPT Steel Catcher SPT-AS8 Sampling Rod, set of 20 Steel pipe, 1.5 meter length
SPT-AD DRIVE WEIGHT ASSEMBLY - CONSIST OF:
SPT-AD1 Hammer, steel, 63.5 kg weight SPT-AD3 Guide Rod, Steel, 76.2 cm drop height
SPT-AD2 Anvil, Machined steel

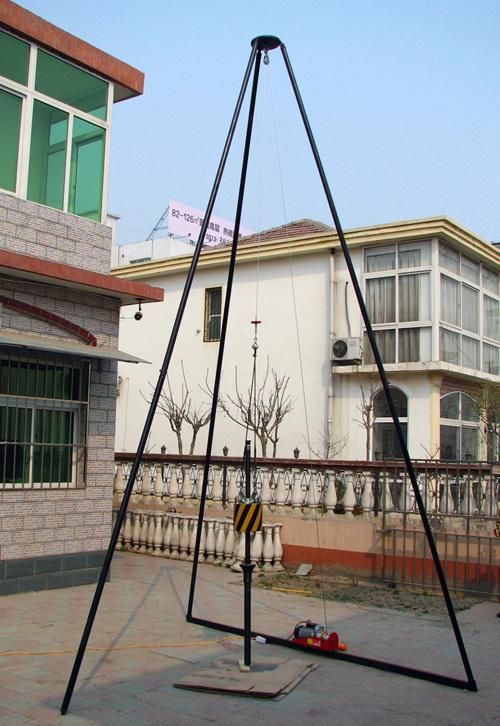

ACCESSORIES AND SPARE PARTS: SPT-AT Tripod Assembly-consist of:(need to be ordered seperately)
SPT-AT1 Tripod stand, steel pipe SPT-AT4 Vertical Guide, Machined steel
SPT-AT2 Rope, 3/4'' x 15 metre SPT-AT5 Pipe Wrench, set of two 24'' length
SPT-AT3 Pulley, 20 cm diameter SPT-AT6 Motor hoisting machine
Standard: ASTM D 1586 AASHTO T 20
FEATURES:
• The Standard Penetration Test, or SPT, is the most widely used in-situ test throughout the world, as an
indicator of the density and compressibility of granular soils. It is also commonly used to check the consistency
of stiff or stony cohesive soils and weak rocks. Estimation of the liquefaction potential of saturated granular
soils for earthquake design is often based on these tests. Available design methods for both shallow and deep
foundations rely heavily on SPT results.
• The test consists of driving a standard 50-mm outside diameter thickwalled sampler into soil at the bottom of
a borehole, using repeated blows of a 63.5 kg hammer falling through 760 mm. The SPT N value is the number
of blows required to achieve a penetration of 300 mm, after an initial seating drive of 150 mm.
