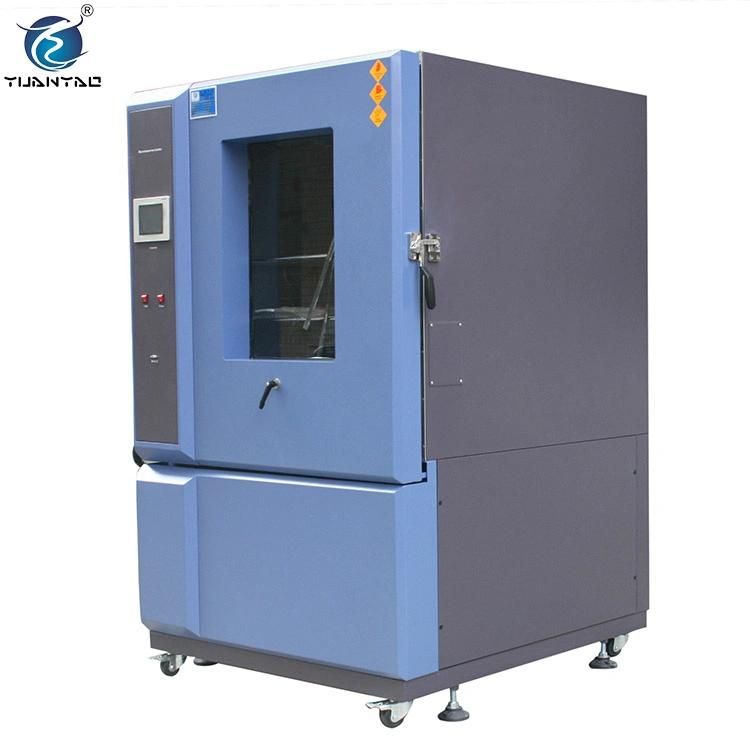

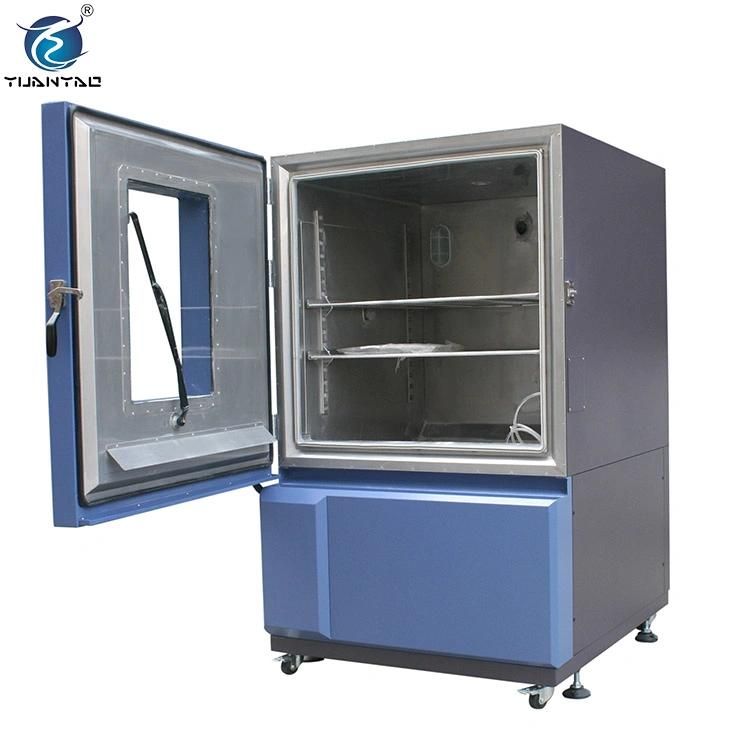

CE Certification LED Light Sand and Dust Tester
Guangdong Yuanyao Test Equipment Co., Ltd.- Max Diameter of Workpiece:1000mm
- Mass Scope of Workpiece:900kg
- Type:Universal Testing Machine
- Maxcapacity:<1000KN
- Accuracy Grade:0.5
- Load Way:Electronic Load
Base Info
- Model NO.:YSDT-1000
- Loading Method:Dynamic Load
- Display:Digital
- Control:Controller
- Weight:100-500Kg
- Power Source:AC220V
- Oil Cylinder Position:N,a
- Internal Size(mm):1000*1000*1000
- Testing Type:IEC60529
- Testing Temp.:20 Degree Celsius +,- 15 Degree Celsius
- Concentration of Dust:Above5000 Mg , M3
- Humidity Range:45%Rh-85%Rh
- Swirl Time:No
- Material:Stainless Steel
- Warranty:12 Month
- Flow Rate of Dust:5m,S
- Total Time:2h
- Transport Package:Well Packed in Strong Plywood Cases.
- Specification:CE, ISO, SGS, TUV certified.
- Trademark:Yuanyao
- Origin:Guangdong, China
- HS Code:9032100000
- Production Capacity:100 Sets , Month
Description
ModelYSDT-1000-F YSDT-1000-C(IEC-529) Internal Dim.W×H×D(mm) 1000×1000×1000 1000×1000×1000 External Dim.W×H×D(mm) 1350×1950×1350 1350×1950×1350 Testing Type F1 F2 F3 IEC60529 C1 C2 Concentration of dust(mg/m3) Above 60000 Above 3000 Above 100 Above 5000 Above 100 Testing Temp. 20°C±15°C Huimidi.Range 45%RH~85%RH Flow rate of dust(m/s) No Limited 5m/s 10m/s Testing Time Swirl time 5S or other NO Rest time 15min or other Total time 5H 8H 8H 2H 6H Material Exterior SUS#304+Powder Coated Interior SUS#304 Other Components Chamber lamp,Wiper,Casters with adjusters Power Source(K.W.) AC 1Ψ 220V 60/50Hz 4KW
Product detail
In addition to sand dust test equipment, we also produce:
1) Temperature/ humidity test series: Temperature humidity test chamber, Walk in environmental room, Thermal shock test chamber, High altitude low pressure simulation test chamber 2) Aging test series: Hot air oven, Vacuum drying oven, Air ventilation aging test chamber, Steam aging test chamber, Ozone resistance test chamber, Burn in test equipment 3) Weather simulation tes series: Rain spray test chamber, dust test chamber, Xenon lamp aging test chamber, UV test chamer 4) Mechanical test series: High frequency vibration test machine, drop test machine , Glue dispensing machine etc.
