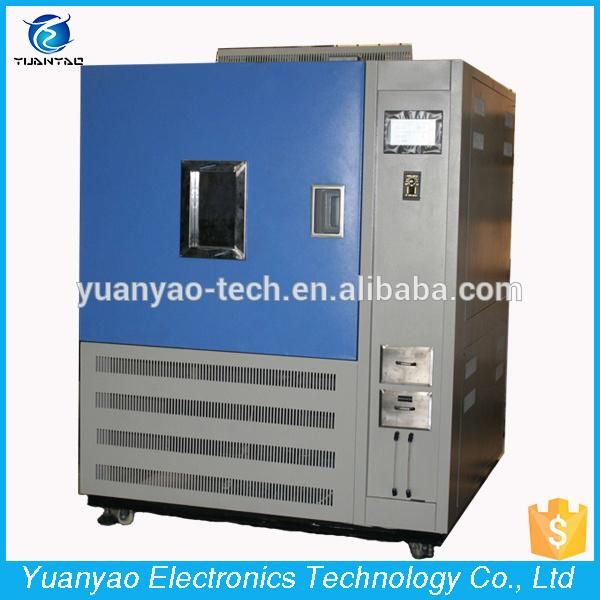

ISO-4892-2 Standard Simulated Solar Radiation Xenon Chamber Price

Guangdong Yuanyao Test Equipment Co., Ltd.
  • Certification：CE, ISO
  • Warranty：1 Year
  • Inner Chamber Size：500*750*600 mm
  • Temperature Range：Rt+10degrees~90 Degrees
  • Humidity Range (Dark)：10%~95%R.H
  • Rainfall Time：1~9999h,59min Adgustable

Base Info

  • Model NO.：YXEL-225
  • Wave Length：200nm~800nm
  • Irradiation Capability：200W,M2~800W,M2(Adjustable)
  • Sample Holder：Automatic Rotary Rack
  • Material：SUS304 Stainless Steel Plate
  • Description：Xenon Chamber
  • Power Source：AC 3 Phase 380V 50Hz
  • Transport Package：Wooden Case
  • Specification：CE, SGS
  • Trademark：Dongguan Yunayao
  • Origin：Guangdong, China
  • Production Capacity：100 Sets,Month

Description

2.2 KW air cooling type,3.3/4.5KW water cooling typeTemperature range  RT+10ºC~90ºCBlack Panel Temperature  40-110ºCHumidity range (light)  10%~70%R.HHumidity range (dark)  10%~95%R.HAccuracy range  Temperature±0.1   humidity±1%R.HRainfall time  1~9999h/59min adgustableRainfall cycle  1~9999h/59min adgustableWater supply system  Bring filter,Automatic control by humidifying water. Cooling water loop xenon lampWave length  200nm~800nmIrradiation capability  200W/~800W/(adjustable)Irradiance deviation  ±0.1 W/m2Temperature controller  Imported weinview color touch screen and PLC control module Siemens GermanyTemperature and humidity sensor  Platinum resistance.PT100Ω/MVSample holder  Automatic rotary rack Materail   SUS304 stainless steel plateDoor insulation  High temperature aging silicone rubber door sealSafety protection  Leakage, short circuit, over temperature, water shortage,
motor overheating, over current protectionTest standards  Complies with JISD0205-1987,GB/T16422.2-1999,ISO4892-2,ASTMG155 GB/T1865-2009 GB/T2423.24-1995 and corresponding standards.Supply voltage  AC380V±10% 50±0.5Hz Three phase five wire system Phase
Besides xenon chamber, we also can supply other different type environmental test chambers such as:
1) Temperature/ humidity test series: Temperature humidity test chamber,  Walk in environmental room, Thermal shock test chamber,  High altitude low pressure simulation test chamber
2) Aging test series: Hot air oven, Vacuum drying oven, Air ventilation aging test chamber, Steam aging test chamber, Ozone resistance test chamber, Burn in test equipment
3) Weather simulation tes series: Rain spray test chamber, dust test chamber, Xenon lamp aging test chamber, UV test chamer
4) Mechanical test series: High frequency vibration test machine, drop test machine , Glue dispensing machine etc.

If you are interested in our xenon chamber, please contact us for more information.
