• Model NO.：YOT-080
• Loading Method：N,a
• Display：Digital
• Control：Pid Controller
• Weight：100-500Kg
• Power Source：AC220V; AC380V
• Oil Cylinder Position：N,a
• Inner Size：400*500*400mm
• External Chamber Size：900*1400*950mm
• Sample Frame：Static and Dynamic Fixtures
• Resolution：0.01 Degree
• Temp. Range：Rt to 80 Degree
• Ozone Production Mode：Ozonator
• Temp. Fluctuation：+,- 0.5 Degree
• Temp. Uniformity：+,- 1.5 Degree
• Ozone Concentration：0 to 1000pphm or 0 to 500 Pphm
• Interior Chamber Material：SUS#304 Stainless Steel Plate
• Exterior Chamber Material：Cold Rolled Sheet+Powder Coating
• Ozone Control Precision：+,- 10%
• Sample Frame Speed：1 Circle,Min 360° Rotation
• Insulation：PU
• Service：Customized
• Transport Package：Strong Wood Carton
• Specification：TUV, SGS Certification
• Trademark：Yuanyao Ozone Aging Test Chamber
• Origin：China
• HS Code：8514109000
• Production Capacity：100 Sets,Month

RT~80ºCTemperature fluctuation±0.5ºCTemperature uniformity±1.5ºC; Empty load, 30 mins after stanlizationResolution0.01ºCOzone concentration0~1000PPHM, adjustable (Optional: 0~500ppm non-standardozone control precision±10%Ozone production modeOzonatorSample frameStatic and Dynamic fixturesSample frame speed360° rotation (1 circle/minuteMaterialSUS#304 Stainless steel for inner chamber, cold rolled sheet + powder coating for external chamberInsulationPUCirculation systemCooling fanHeating systemSUS# stainless steel high speed heaterControlling systemDigital electrinic indicator + SSR+ PIDRefrigeration systemcompressor + Fin type evaporator + air/water cooling systemOzone concentration analyzerImported ozone concentration analyzerOzone generatorSilent discharge ozone generatorOther components1. Muti-layer vacuum glass obvervation window2. Controlling status indicator lamp 3. Chamber lightSafety protection device1. Over-heat protection 2. phase sequence protection 3. overload protectionPower supplyAC 1ψ220V; 3ψ380V 60/50HzCustomization serviceNon-standard or special requirements are all welcome

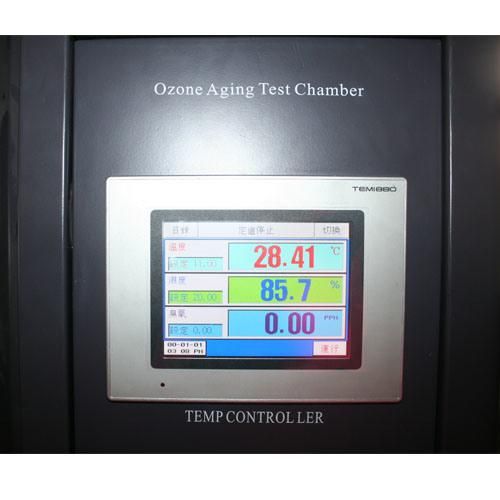

Controller





Company Introduce





Customers Visit Us



Exhibition




Customers' Feedback

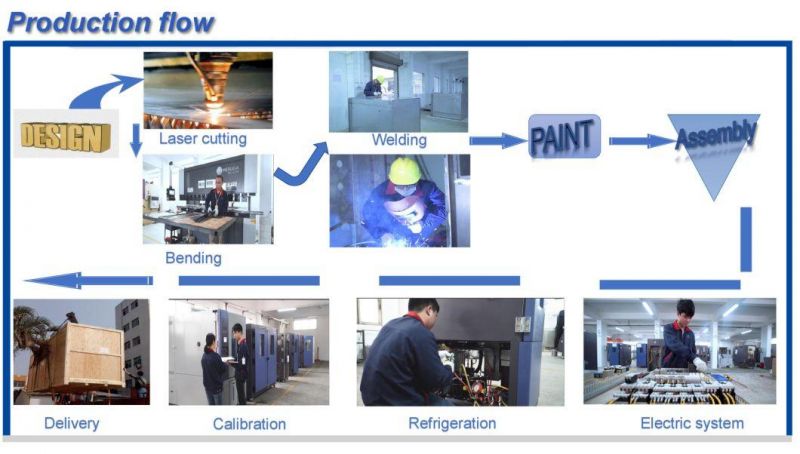

Production Process



After-sales Service



Except High performance rubber ozone aging test chamber, Guangdong Yuanyao Test Equipment also can supply:
High Atitude Low Pressure Chamber, 2 Zones Type Thermal Shock Chamber, 3 Zones Thermal Shock Chamber, LCD Aging Chamber, Fiber Optic Aging Oven, Central Control Type Aging Oven, Precision Hot Air Oven, Precision Hot Air Clean Oven, Nitrogen Drying Oven, Vacuum Oven, Vacuum Nitrogen Drying Oven, Auto Fan Fatigue Vacuum Oven, Salt Spray Test Chamber, and so on.



Welcome to enquire and purchase!
