• Model NO.：YOT-150

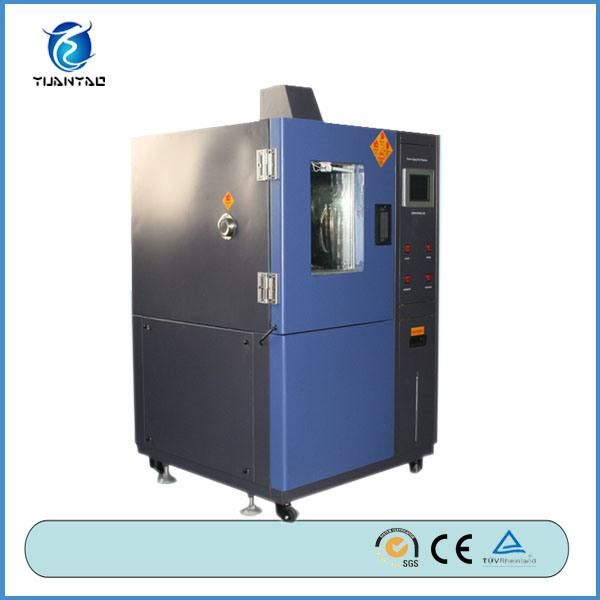

• Description：Ozone Resistance Test Chamber
• Temp.&Humi. Fluctuation：+,-0.2degree, +,-0.5%Rh
• Temp.&Humi. Uniformity：+,-1.5degree, +,-2.5%Rh
• Ozone Concentration：0 to 1000pphm or 0 to 500 Ppm
• Interior Chamber Material：SUS#304 Stainless Steel Plate
• Exterior Chamber Material：Stainless Steel Plate + Powder Coated
• Transport Package：Strong Wood Carton
• Specification：TUV, SGS Certification
• Trademark：Yuanyao
• Origin：China
• HS Code：8514109000
• Production Capacity：100 Sets,Month

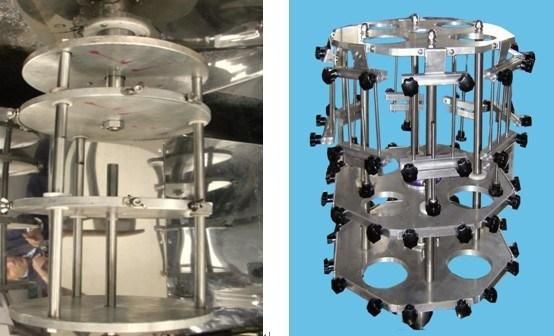

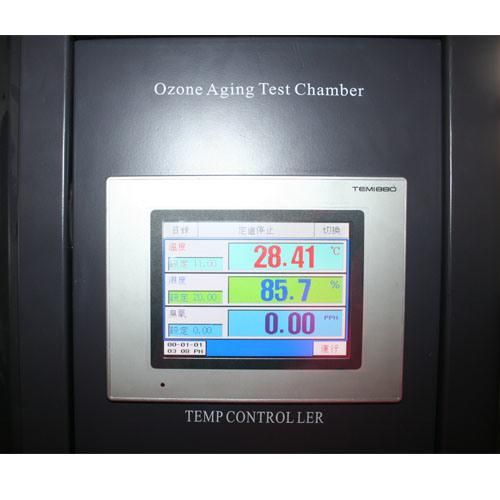

ModelYOT-080YOT-150YOT225YOT-408YOT-800YOT-1000Internal Dim.W×H×D(mm)400×500×400500×600×500500×750×600600×850×8001000×1000×8001000×1000×1000External Dim.W×H×D(mm)900×1450×950950×1500×1050950×1650×11501050×1750×13501450×1900×13501450×1900×1550Temperature RangeHumidity Range45%HR -- 98%HRPerformanceTemp.&Humi fluctuation±0.2ºC,±0.5%RHTemp.&Humi uniformity±1.5ºC,±2.5%RH when RH is ≤75%, ±4%RH when RH is over 75%(tested with empty chamber, 30mins after stabilization)Indication Resolution0.01ºC,0.01%RHOzone concentrationOzone control accuracy±10%Ozone wayStatic emissionsSample rotating speed1 times/minuteMaterialExteriorStainless steel plate+Powder CoatedInteriorSUS#304 stainless steel plateInsulationPU & Fiberglass woolOzone analyzerImported ozone density analyzerOzone generatorSilent discharge type ozone generatorSystemsCirculationSirocco fanHeatingSUS#304 stainless steel high-speed heaterHumidifyingSurface evaporating systemCoolingImported compressor+finned vaporator+air-cooling condenserDehumidifyingADP Critical dewpoint cooling/dehumidifying methodControllerDigital electronic indicatrs+S.S.R.With PID automatic calculation capabiltyAccessoriesVacuum glass inspection window, cable port(50mm), control status indicator lights, chamber lamp, loading shelves(2pcs for free)Safety devicesOverheating circuit-breaker, compressor overload protection, control system overload protection, humidifying system overheating protection, breakdown indicator light.Power(K.W.)AC 1Ψ 220V,3Ψ380V 60/50HzCustomizationCustomization of inner chamber size,temperature&humidity range,etc.
Besides ozone resistance test chamber, we also supply other different environmental test chamber as follow.1) Temperature/ humidity test series: Temperature humidity test chamber,  Walk in environmental room, Thermal shock test chamber,  High altitude low pressure simulation test chamber2) Aging test series: Hot air oven, Vacuum drying oven, Air ventilation aging test chamber, Steam aging test chamber, Ozone resistance test chamber, Burn in test equipment3) Weather simulation tes series: Rain spray test chamber, dust test chamber, Xenon lamp aging test chamber, UV test chamer 4) Mechanical test series: High frequency vibration test machine, drop test machine , Glue dispensing machine etc.










If you are interested in our ozone resistance test chamber, please contact us for more details. Welcome to enquire and purchase!
