• Model NO.：HZSF-1007
• Control：Computer Control
• Weight：0-100Kg
• Power Source：AC220V
• Name：Air Release Value Tester
• Measuring Range：0-200mn,M
• Accuracy：0.1%( Test Result)±0.1 Mn,M
• Mains Voltage：AC220V±20% 50Hz±10%
• Maximum Power Dissipation：20W
• MOQ：1
• Transport Package：Wooden Box with Foam Inside
• Specification：CE,ISO,IEC
• Trademark：HuaZheng
• Origin：Hebei, China
• HS Code：9024109000
• Production Capacity：1000 PCS,Month

Basic Info.

Model NO. HZSF-1007 Control Computer Control Weight 0-100Kg Power Source AC220V Name Air Release Value Tester Measuring Range 0-200mn/M Accuracy 0.1%( Test Result)±0.1 Mn/M Mains Voltage AC220V±20% 50Hz±10% Maximum Power Dissipation 20W MOQ 1 Transport Package Wooden Box with Foam Inside Specification CE/ISO/IEC Trademark HuaZheng Origin Hebei, China HS Code 9024109000 Production Capacity 1000 PCS/Month

Product Description

Petroleum Laboratory ASTM D3427 Lubricant Oil Air Release Value Properties Apparatus

Air release value tester Introduction
The  HZSF-1007 Lubricating Oil Air Release Tester is designed and  manufactured in accordance with the industry standards SH/T0308 and ASTM  D3427. It is used for the determination of the air release value of  petroleum products such as turbine oil and hydraulic oil under this  standard.


Air release value tester Main feature
Exclusive use of XECOM data processing chip imported from the United States to accurately process data
Advanced Embedded Microcontroller Technology
SMT surface mount technology
PID temperature setting technology, high precision temperature control
Use high quality components to ensure stable and reliable quality
In the experiment process, automatic ventilation, air shutoff, automatic timing without manual intervention


Air release value tester Technical indicators
Display mode: Chinese large-screen LCD menu display
Temperature control range: room temperature ~ 99 °C
Temperature control accuracy: water bath temperature: ±0.3°C
Bath temperature: ±5°C
Pressure adjustment range: 0 ~ 0.1Mpa
Measuring range: 0-99min
Stopwatch timing: Accuracy 1 second
Power: 1500w
Source: AC 220V±10% 50Hz±5%
Ambient temperature: 0°C to 40°C
Environmental humidity: ≤85%

III.Company Information

HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.
What's more, our customers come from different countries like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.

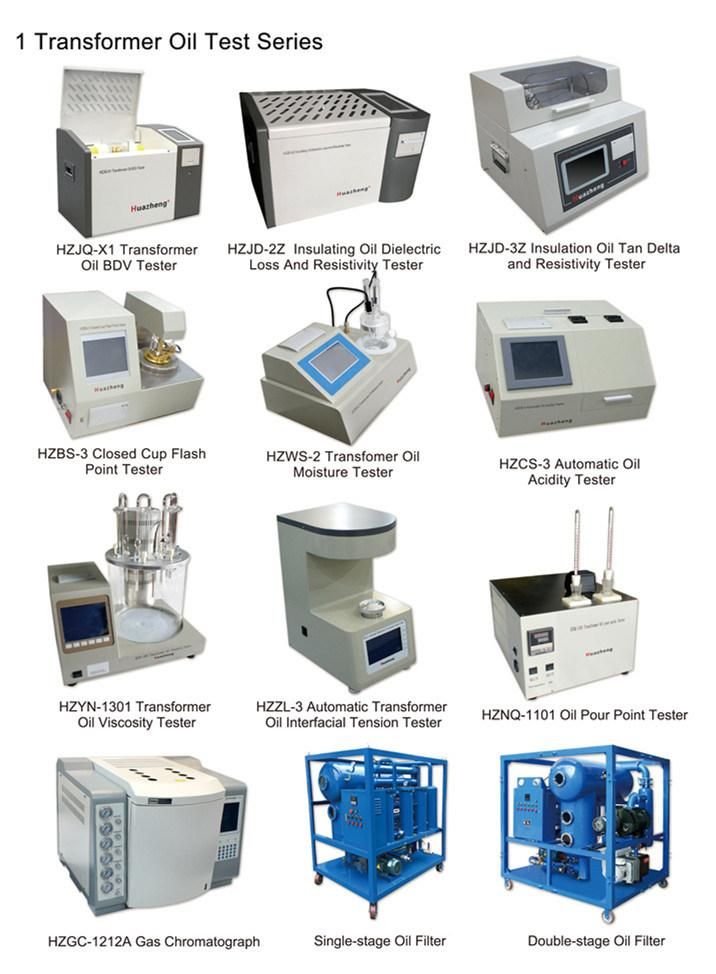

Our main products are Insulation Oil Tester, Cable Fault Locator, Power Quality Analyzer, High Voltage Generator, High Voltage Capacitor, Testing Transformer and so on.
