• Model NO.：XHHD523
• Specification：420mm× 250mm× 340mm
• Trademark：XZH TEST
• Origin：China Xi′an
• HS Code：854320100
• Production Capacity：100 Pieces ,Year

Basic Info.

Model NO. XHHD523 Specification 420mm× 250mm× 340mm Trademark XZH TEST Origin China Xi′an HS Code 854320100 Production Capacity 100 Pieces /Year

Product Description

  Product Introduction

At present, most of the outer sheath is made of HDPE sheath material, which has passed the DC 25kV/5min withstand voltage test in the factory, and the leakage current is as low as tens of μA.Therefore, most of the defects after laying are caused by external force damage during laying, including soil filling and cover. Defects after operation usually include termite bites; water in the grounding box; deterioration of the original defect; moisture penetration of the bifurcated part of the grounding wire reduces the insulation resistance, etc., sometimes because the cable is buried too deep or the surrounding conditions are complicated, so It is very difficult to locate, and some defects cannot be resolved after many years, leaving hidden dangers to the operation.

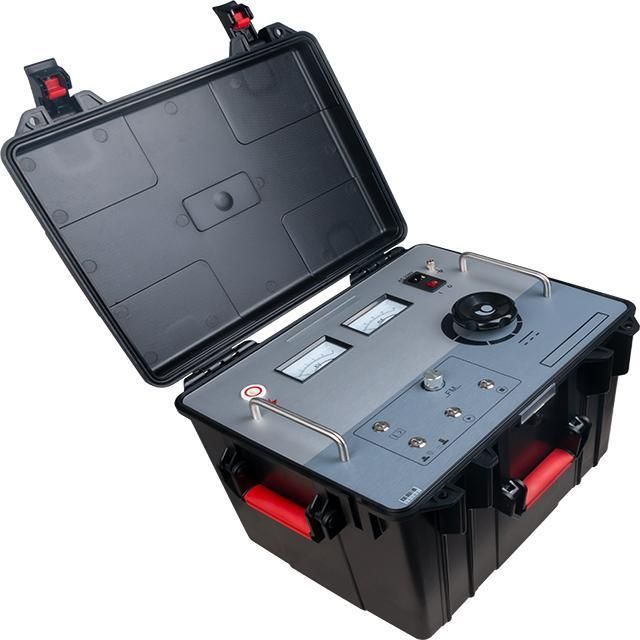

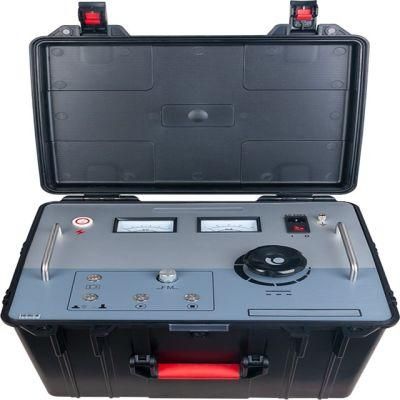

 The output voltage of the high-voltage cable outer sheath fault detector is 10KV and below, it can quickly and accurately find hidden dangers of 10kv-500kv single-core and three-core high-voltage and ultra-high voltage cable outer sheath grounding faults and large leakage currents.  At the same time, it can perform 5kv-10kv on high-density polyethylene and polyviny chloride cable outer sheaths, The minute DC withstand voltage test is a special instrument necessary for the maintenance of cable equipment of 10kv-500kv single-core and three-core high-voltage and ultra-high voltage cable operation units, ultra-high voltage cable engineering companies, and various power transmission and transformation engineering companies. Main Features
Voltage adjustable.Frequency adjustable.Over current protection.Pin-pointing and withstand testing switched by one button , the receiver sensitivity can be adjust.
Signal frequency adjustable, and zero protection.The test range without blind area.The receiver sensitivity is adjustable.
Signal frequency is adjustable.Technical parameter
Power:220V(1±10%),50Hz(1±5%)b)Output voltage:0~10kV(Square wave)
c)output current:max 200mA
d)Output capacity:2kVA
e)Frequency adjust: Min:0.4Hz,Max:1Hz(range adjustable)
