• Model NO.：STSD-4
• Accuracy Grade：1
• Load Way：Electronic Load
• Loading Method：No
• Display：Digital
• Control：No
• Weight：45kg
• Power Source：AC380V
• Oil Cylinder Position：No
• Product Name：Electric Automatic Motorized Sand Equivalent Shake
• Stroke：203mm
• Rate：180 Strokes,Min
• Working Voltage：AC220V 50Hz
• Test Tube Size：Dia.32X420mm
• Duration of Oscillation：0-30 Second
• Quiescence Time：0-20min
• Rated Power：90 W
• Dimension：564X320X360mm
• Transport Package：Wooden Case
• Specification：564x320x360mm
• Trademark：SHTG
• Origin：China
• HS Code：9031809090
• Production Capacity：100PCS,Month

Basic Info.

Model NO. STSD-4 Accuracy Grade 1 Load Way Electronic Load Loading Method No Display Digital Control No Weight 45kg Power Source AC380V Oil Cylinder Position No Product Name Electric Automatic Motorized Sand Equivalent Shake Stroke 203mm Rate 180 Strokes/Min Working Voltage AC220V 50Hz Test Tube Size Dia.32X420mm Duration of Oscillation 0-30 Second Quiescence Time 0-20min Rated Power 90 W Dimension 564X320X360mm Transport Package Wooden Case Specification 564x320x360mm Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/Month

Product Description

STSD-4 Manual Sand Equivalent Shaker Apparatus

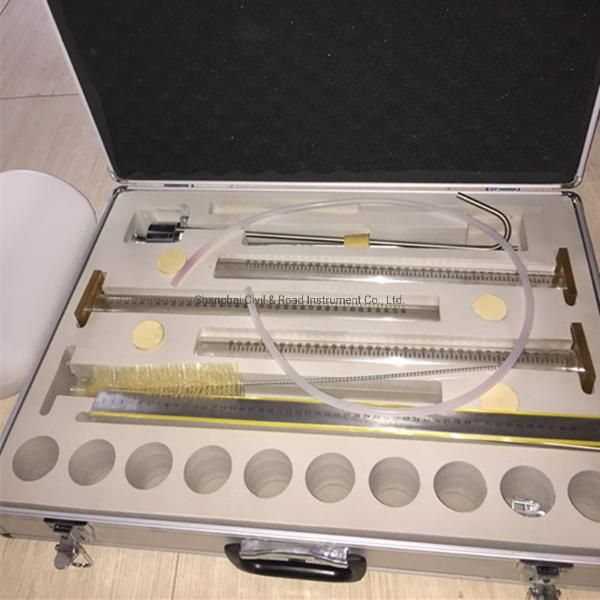

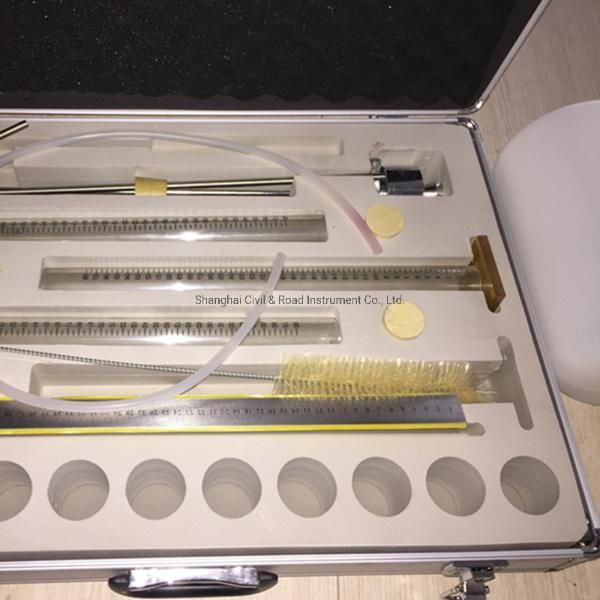

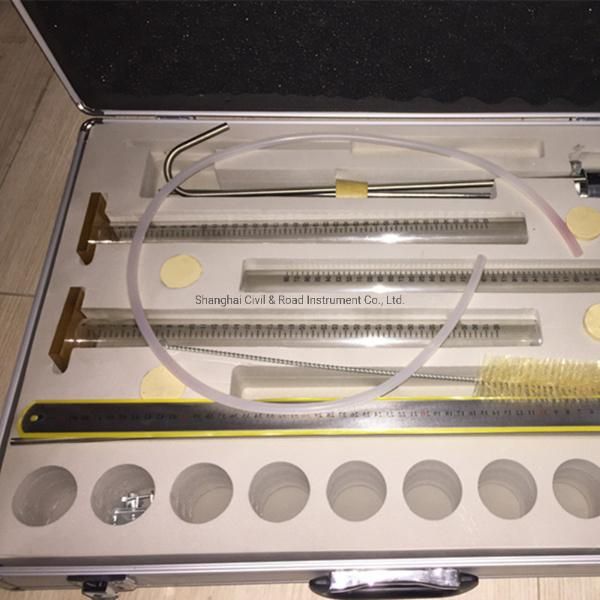

Hot sell Motorized Sand Equivalent Shaker Apparatus (with Aluminum alloy suitcase)

Standards: EN 933-8, ASTM D2419, AASHTO T176, NF XP18-598, UNE 83131, UNI 8520-15, CNR N.27


Test tube size	32(Inner Dia.)×420(H)±0.25mm
Flushing tube size	6±0.5mm (Outer Dia.), 4±0.2mm (Inner Dia.)
Vibration frequency	180 times/min
Amplitude	203mm
Auto controlled time	30S/time

3. spare parts:
 a. measuring cylinder;
 b. rubber stopper;
 c. measuring can;
 d. irrigator tube;
 e. siphon assembly with bottle;
 f. weight foot;
 h. graduate rule 500mm;
 i. plastic case
