• Model NO.：ZJ-2
• Accuracy Grade：1
• Load Way：Electronic Load
• Loading Method：Static Load
• Display：Digital
• Control：Electric
• Weight：140
• Power Source：Can Customized
• Oil Cylinder Position：No
• Area of The Soil Sample：30cm2
• Accepts Specimens：61.8X20mm
• Lever Ratio：1:12
• Vertical Loading：50, 100, 200, 300, 400(Kpa)
• Max. Horizontal Loading：1.2kn
• Shear Rate：0.02, 0.8, 2.4mm,Min
• Handwheel Speed：0.1, 4, 12mm,Min
• Packing Measurement：880X600X1210mm
• Transport Package：Wooden Case
• Specification：97x60x121
• Trademark：SHTG
• Origin：China
• HS Code：9031809090
• Production Capacity：100PCS,Month

Basic Info.

Model NO. ZJ-2 Accuracy Grade 1 Load Way Electronic Load Loading Method Static Load Display Digital Control Electric Weight 140 Power Source Can Customized Oil Cylinder Position No Area of The Soil Sample 30cm2 Accepts Specimens 61.8X20mm Lever Ratio 1:12 Vertical Loading 50, 100, 200, 300, 400(Kpa) Max. Horizontal Loading 1.2kn Shear Rate 0.02, 0.8, 2.4mm/Min Handwheel Speed 0.1, 4, 12mm/Min Packing Measurement 880X600X1210mm Transport Package Wooden Case Specification 97x60x121 Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/Month

Product Description

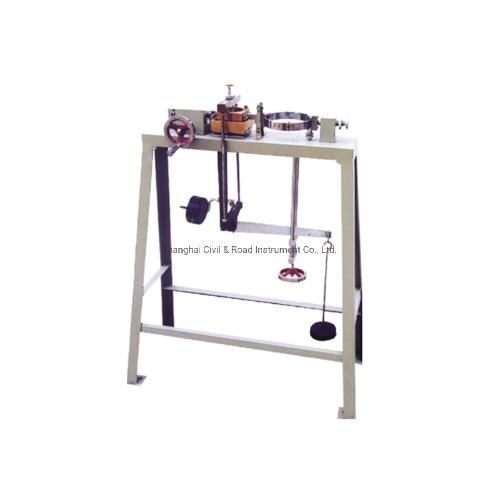

ZJ-2 Direct Residual Shear Testing Apparatus (Manual)

Application: Direct Shear Apparatus is a kind of strain controlled direct shear apparatus used to test resisting shear strength of soil specimen, it usually adopts one specimens under the different vertical pressure exerted on the specimens to obtain shear stress when the specimen is destroyed. According to Coulomb' s law to confirm the resisting shear strength coefficient, angle of internal friction and coagulable force of the soil.

Parameters:


Area of the soil sample	30cm2
Accepts specimens	61.8x20mm
Lever ratio	1:12
Vertical loading	50,100,200,300,400(KPa)
Max. horizontal loading	1.2kN
Shear rate	0.02, 0.8, 2.4mm/min
Handwheel speed	0.1, 4, 12mm/min
Power	AC220V±10%
Packing measurement	880x600x1210mm
weight	105kg
