• Model NO.：STM-3
• Accuracy Grade：1
• Load Way：Electronic Load
• Loading Method：Static Load
• Display：Digital
• Control：Digital Display
• Weight：290kg
• Power Source：AC220V
• Oil Cylinder Position：No
• Product Name：Stm-3 300kn Universal Electric Hydraulic Extruder
• Size of Sample：Dia100,Dia101.6,Dia102,Dia150,Dia152(mm)
• Max. Axial Output Load：300kn
• Piston Stroke：250mm
• Working Voltage：AC380V,AC220V
• Transport Package：Wooden Case
• Specification：87x85x127cm
• Trademark：SHTG
• Origin：China
• HS Code：9031809090
• Production Capacity：100PCS,Month

Basic Info.

Model NO. STM-3 Accuracy Grade 1 Load Way Electronic Load Loading Method Static Load Display Digital Control Digital Display Weight 290kg Power Source AC220V Oil Cylinder Position No Product Name Stm-3 300kn Universal Electric Hydraulic Extruder Size of Sample Dia100,Dia101.6,Dia102,Dia150,Dia152(mm) Max. Axial Output Load 300kn Piston Stroke 250mm Working Voltage AC380V,AC220V Transport Package Wooden Case Specification 87x85x127cm Trademark SHTG Origin China HS Code 9031809090 Production Capacity 100PCS/Month

Product Description

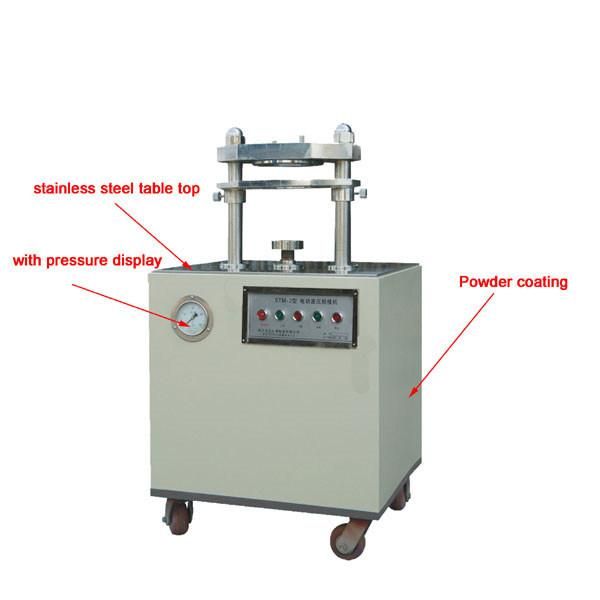

STM-3 300kN Universal Electric Hydraulic Extruder

ASTM D698, D1587, D1883 BS 598:107, 1377:4, 1924:2

Use:It used to remove 4" and 6" samples from Marshall, Proctor and CBR moulds.
The ejector is used for ejecting the specimen made of bituminous mix material and the material stabilized with inorganic binders etc. Hydraulic Universal Extruder can quickly eject the specimen from the mold and easy to operate.

Stainless steel working table	overload protection
Automatic off load	when overload
Size of sample	Φ100,Φ101.6,Φ102,Φ150,Φ152(mm)
Max. axial output load	300kN
Piston stroke	250mm
Working voltage	AC380V±10%,AC220V±10%
