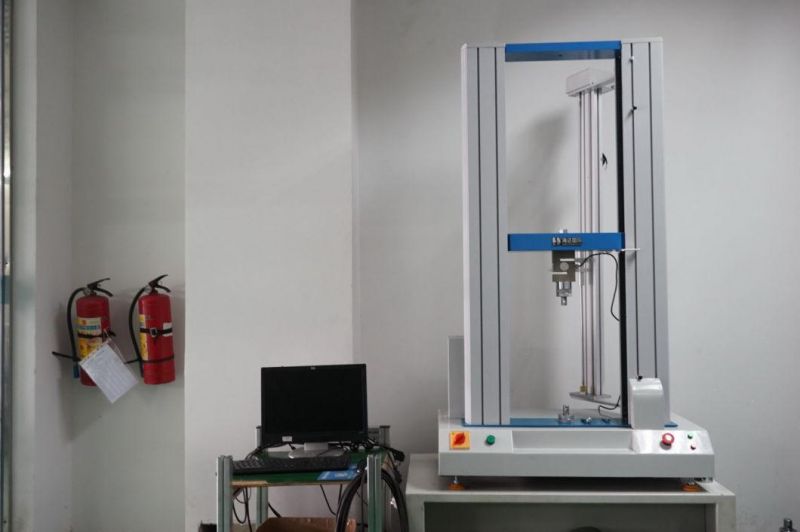

Electric Push Pull Test Station Tensile Test/Testing Instrument

Dongguan Haida Equipment Co., Ltd.
  • Warranty：One Year
  • Type：Tensile Testing Machine
  • Maxcapacity：20kn
  • Accuracy Grade：0.5
  • Load Way：Electronic Load
  • Loading Method：Dynamic Load

Base Info

  • Model NO.：HD-604B-S
  • Display：Computer Display, Digital
  • Control：Computer Control
  • Weight：100-500Kg
  • Power Source：AC220V
  • Motor：Panasonic Servo Motor
  • Sensor：Celtron Load Cell
  • Load Accuracy：Within 0.5%
  • Power：1phase, AC220V, 50Hz
  • Delivery Time：15 Days After Receive The Deposit
  • Test Speed：0.1-500mm,Min (Adjustable )
  • Elongation Accuracy：0.001mm
  • Screw：High Precise Ball Screw
  • Transport Package：Strong Plywood Case
  • Specification：ASTM, JIS
  • Trademark：Haida
  • Origin：Dongguan, China
  • HS Code：9024109000
  • Production Capacity：150 Sets,Month

Description

ItemDescriptionMax. Force2000 kg (20KN)Load cellGermany brand load cell for high accuracyControl systemPC with windows 7 systemMotorPanasonic servo motor w/ DC variable speed drive system, high-precision mechanical ball screw rodForce readingkgf, Ibf, N, KN, T etcStoke1200mm including fixtureLoad cell Resolution1/250,000Load Precision≤0.5%Test speed0.1~500mm/min (adjustable by PC)Test width≤400mmSoftwareTM 2101Curves displayLoad- elongation, Elongation-time, Time-elongation, Stress-strainData displayMax. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc…Safety featuresE-Stop
Over-load protection
Upper and lower limit switches
Load sensor with automatic retreat APPLICATIONS
  1. Deformation under defined load: Test deformation under defined load of tested sampleLoad under defined deformation: Test load under defined deformation of tested sampleSoftware can issue report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.
4.  This machine can do different test as per customer requirement such as peel test, tear test, compression test, bend test with different clamps.

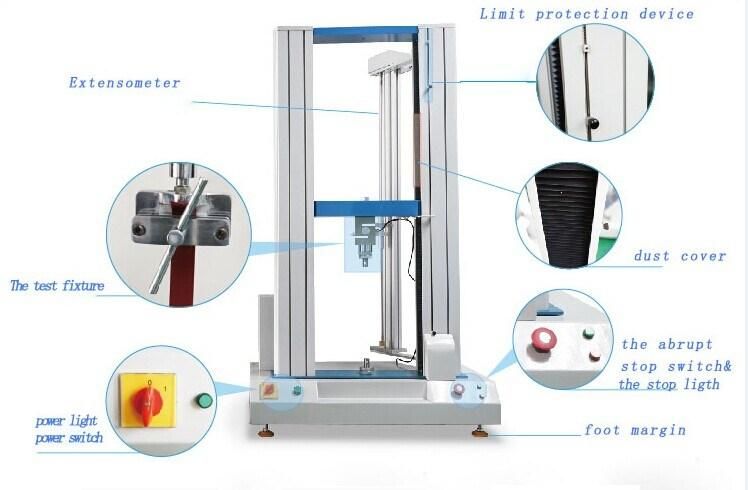

Features:
1> The grips: wedge clamps, firmly hold the specimens. Convertible grip will fill for all kinds of  specimen.
2> Crosshead moving: crosshead is directed by reeling screw columns. So that reduce cibrates.
3> Compression test: adopt double test-space, achieve tensile test and bending test at the same time.
4> Stroke calculate: crosshead displacement is counted by a scale fixed on the column.
5> Oil cylinder: oil cylinder is put on the bottom to reduce the unnecessary machine height.

Electric Push Pull Test Station Tensile Test/Testing Instrument

Electric Push Pull Test Station Tensile Test/Testing Instrument
Electric Push Pull Test Station Tensile Test/Testing InstrumentElectric Push Pull Test Station Tensile Test/Testing InstrumentElectric Push Pull Test Station Tensile Test/Testing InstrumentElectric Push Pull Test Station Tensile Test/Testing InstrumentElectric Push Pull Test Station Tensile Test/Testing InstrumentElectric Push Pull Test Station Tensile Test/Testing InstrumentElectric Push Pull Test Station Tensile Test/Testing InstrumentElectric Push Pull Test Station Tensile Test/Testing InstrumentElectric Push Pull Test Station Tensile Test/Testing InstrumentElectric Push Pull Test Station Tensile Test/Testing Instrument
FAQ
Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 12 years focusing on test equipment field,6 years exporting experience.
Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.
Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 12 months by HAIDA,we can help you to repair
your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve  problems encountered while using our product, handles guest problems and complaints in a professional and timely.
Q:What about the  product' services and quality?
A:Each equiopment must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate.  We can arrange engineer to train the operation of equipment to customer's company when you need. products are widely recognized and trusted byusers.
