• Model NO.：TH2883-10
• Measurement Speed：3 Times,Second (When 10kv Impulse Voltage Is Outp
• Pulses Applied：Max.: 32
• Product Name：Th2883-10 Impulse Voltage 500V-10kv 20V Steps
• Trigger Mode：Manual,External,Bus,Internal

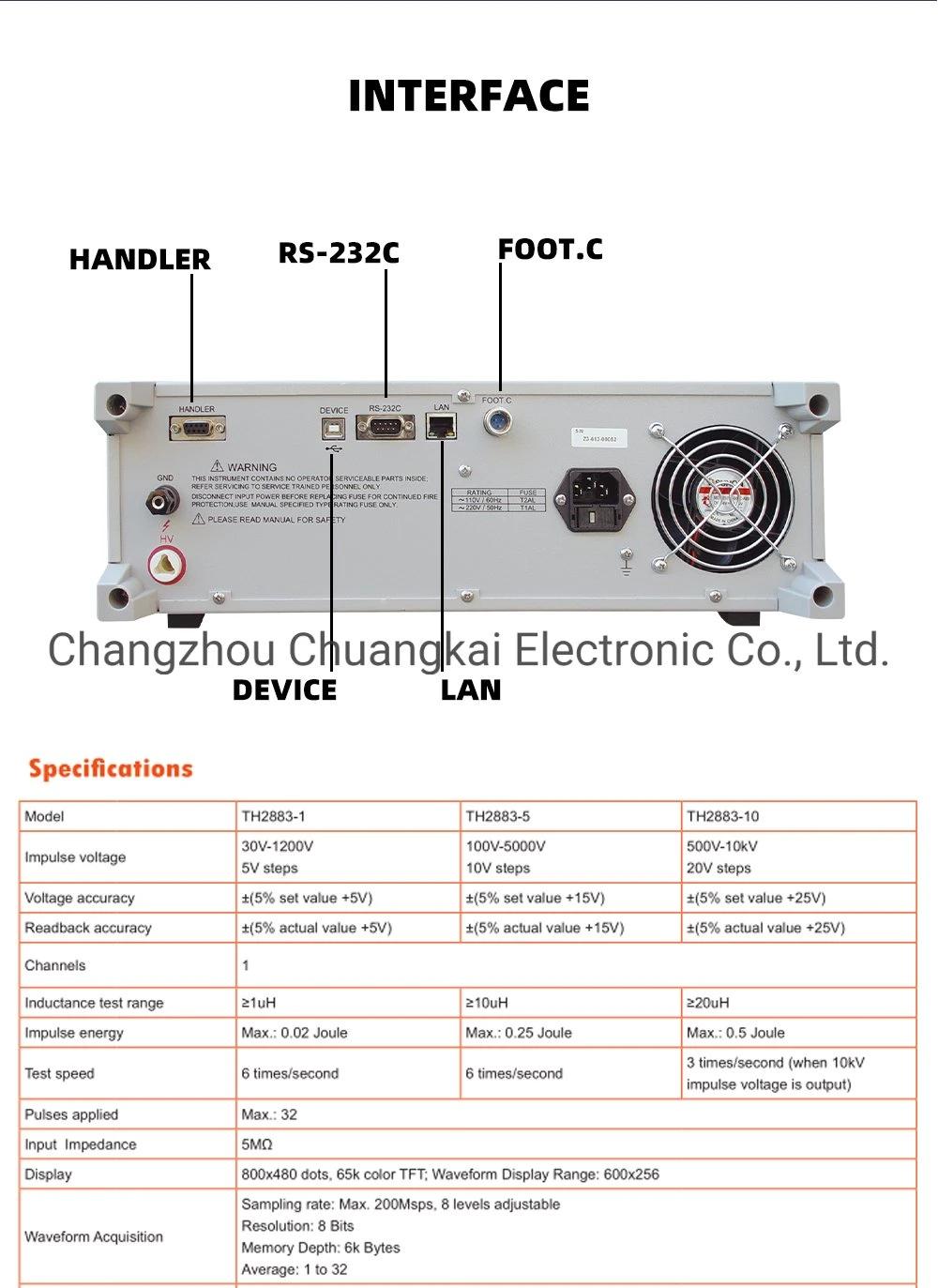

• Interface：Handler, RS232c, USB Device, USB Host, LAN
• Waveform Measurement：Voltage,Frequency,Time
• Measurement Statistics：Statistics for Measurement Results
• Transport Package：Carton
• Specification：55x55x33cm
• Trademark：CKT
• Origin：China
• HS Code：9030332000
• Production Capacity：3000 Sets Per Month

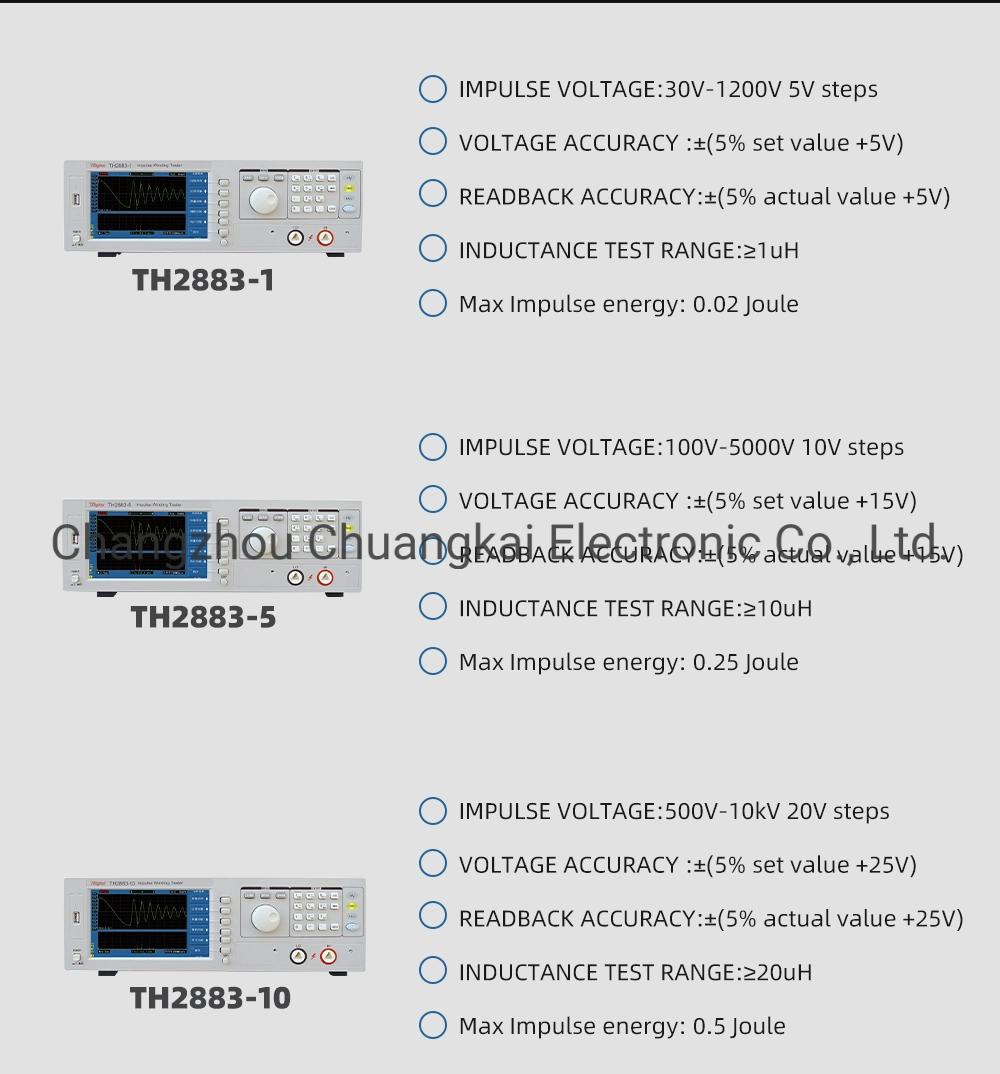

ModelTH2883-1TH2883-5TH2883-10Impulse Voltage30V-1200V, 5V steps100V-5000V, 10V steps500V-10kV, 20V stepsVoltage Accuracy±(5% set value +5V)±(5% set value +15V)±(5% set value +25V)Readback Accuracy±(5% actual value +5V)±(5% actual value +15V)±(5% actual value +25V)Channels1Inductance Test Range≥1uH≥10uH≥20uHImpulse EnergyMax.: 0.02 JouleMax.: 0.25 JouleMax.: 0.5 JouleTest Speed6 times/second6 times/second3 times/second (when 10kV impulse voltage is output)Pulses AppliedMax.: 32Input Impedance5MΩDisplay800x480 dots, 65k color TFT; Waveform Display Range: 600x256Waveform AcquisitionSampling rate: Max. 200Msps, 8 levels adjustableResolution: 8 BitsMemory Depth: 6k BytesAverage: 1 to 32Comparison MethodsComparison with Standard Waveform:

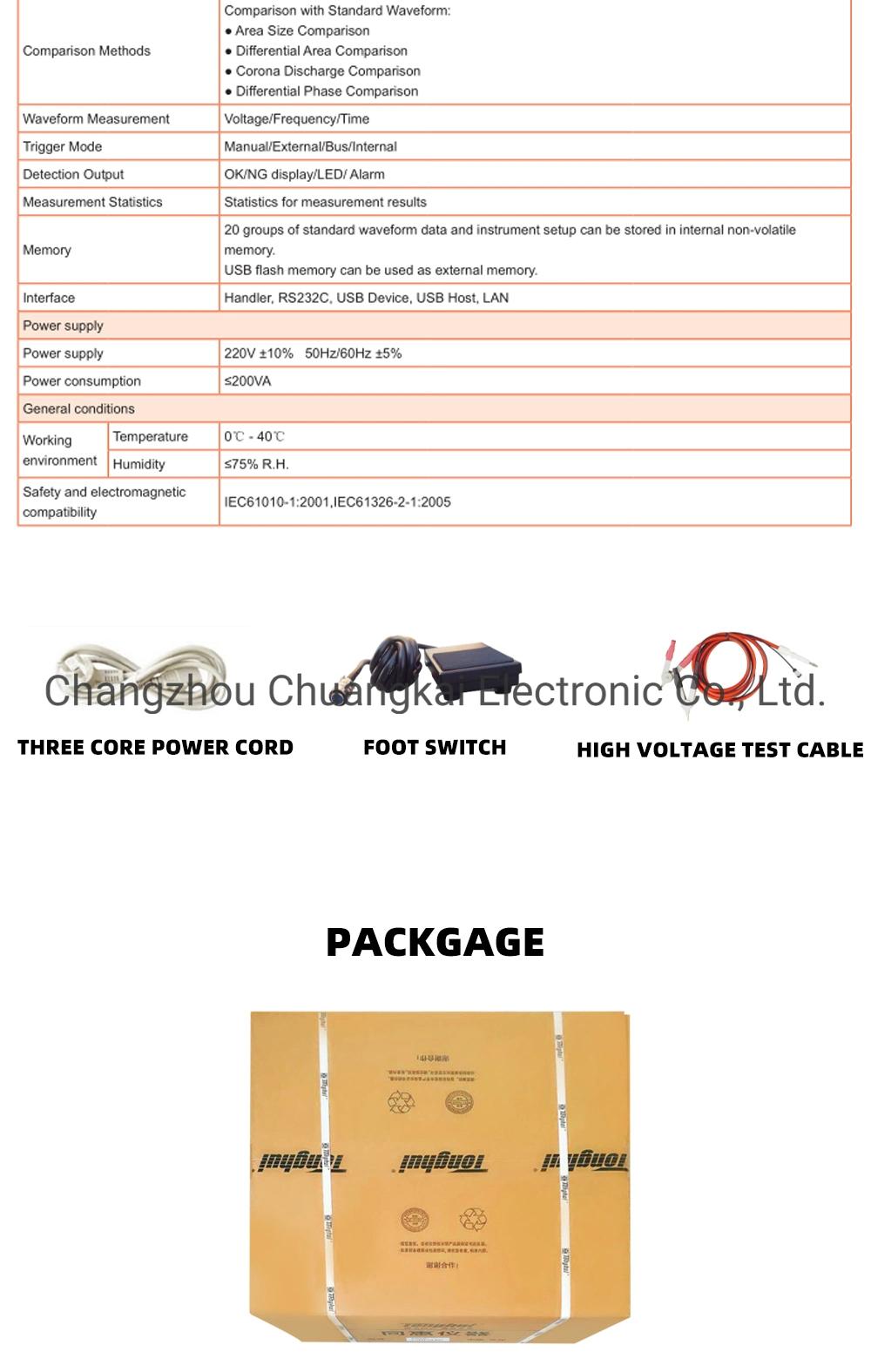

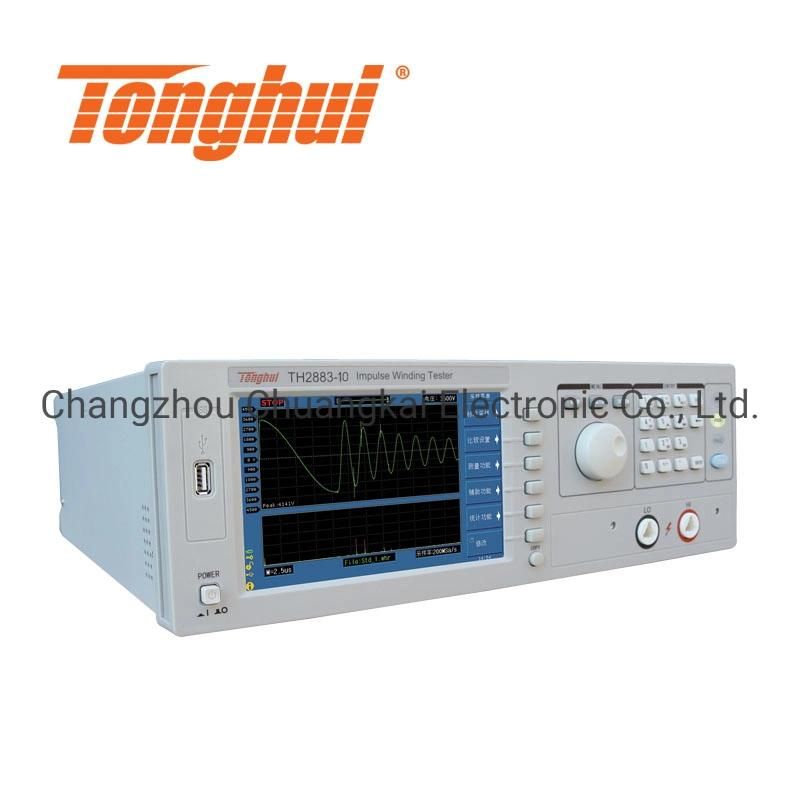

• Waveform MeasurementVoltage/Frequency/TimeTrigger ModeManual/External/Bus/InternalDetection OutputOK/NG display/LED/ AlarmMeasurement StatisticsStatistics for measurement resultsMemory20 groups of standard waveform data and instrument setup can be stored in internal non-volatile memory.USB flash memory can be used as external memory.InterfaceHandler, RS232C, USB Device, USB Host, LANPower Supply Power Supply220V ±10%   50Hz/60Hz ±5%Power Consumption≤200VAGeneral Conditions Working EnvironmentTemperature0ºC - 40ºCHumidity≤75% R.H.Safety and Electromagnetic CompatibilityIEC61010-1:2001,IEC61326-2-1:2005 Detailed Photos












  Packaging & Shipping

  Company Profile

  https://ckt2017.en.made-in-china.com/product-list-1.html


  Chuangkai Electronic Co., Ltd is leading company specialized in producing, developing & selling various types of measuring instruments and testing equipment, such as temperature data logger, LCR meter, DC resistance tester (micro ohm meter), digital power meter, power supply, transformer tester, battery tester, programmable DC electronic load, charger, temperature controller, tachometer, high voltage signal-amplifier, power amplifier, etc.

  FAQ:
  Q. How is your company's product after-sales service system?
  A. The product warranty period is 12 months, we can provide lifetime maintenance. We have professional pre-sales and after-sales teams that can respond to you within 24 hours to resolve technical issues. We provide one-to-one after-sales service.

  Q: Can you customize it?
  A: Yes, we accept customization according to customer's specific requirements.

  Q. How long is your lead time? If I want to customize instruments, how long will it take?
  A. When order quantity is 1-10 units, we have ready stock goods, we can ship out within 3-5 working days after receipt of deposit; products required new production of common materials, usually the lead time is about 10-15 days; products requiring new production of special and rare materials, usually the lead time is about 20-30 days.

  Q. What payment method do you accept?
  A. Our company accept payment method of T/T (bank transfer), Western Union, PayPal and so on.

  Q. What package do you use for your products? What shipping method do you use?
  A.1. Our company use standard exporting carton for packing. 2. We ship via express courier (door to door service), by air, and by sea according to customers' requirements.

  For more questions, please feel free to send inquiries to us.
