20kn Computerized Tensile Bending Tester / Universal Testing Machine

Dongguan Haida Equipment Co., Ltd.
  • Type：Tensile Testing Machine
  • Maxcapacity：20kn
  • Accuracy Grade：0.5
  • Load Way：Electronic Load
  • Loading Method：Dynamic Load
  • Display：Digital

Base Info

  • Model NO.：HD-604B-S
  • Control：Computer Control
  • Weight：100-500Kg
  • Power Source：AC220V
  • Product Name：Computerized Tensile Bending Tester
  • Load Accuracy：Within 0.5%
  • Resolution：1,250, 000
  • Test Speed：0.1-500mm,Min (Adjustable )
  • Warranty Period：One Year
  • Delivery Time：15 Days After Receive The Deposit
  • Screw：High Precise Ball Screw
  • Delivery Term：15 Days After Receive The Deposit
  • Sensor：Celtron Load Cell
  • Power：1phase, AC220V, 50Hz
  • Transport Package：Strong Wooden Case
  • Specification：ASTM D903 GB,T16491 GB,T1040 GB,T8808 GB13022 GB,T
  • Trademark：Haida
  • Origin：Dongguan, China
  • HS Code：9024109000
  • Production Capacity：150 Sets Per Month

Description

ItemDescriptionMax. Force2000 kg (20KN)Load cellGermany brand load cell for high accuracyControl systemPC with windows 7 systemMotorPanasonic servo motor w/ DC variable speed drive system, high-precision mechanical ball screw rodForce readingkgf, Ibf, N, KN, T etcStoke1200mm including fixtureLoad cell Resolution1/250,000Load Precision≤0.5%Test speed0.1~500mm/min (adjustable by PC)Test width≤400mmSoftwareTM 2101Curves displayLoad- elongation, Elongation-time, Time-elongation, Stress-strainData displayMax. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc…Safety featuresE-Stop
Over-load protection
Upper and lower limit switches
Load sensor with automatic retreat
APPLICATIONS
Deformation under defined load: Test deformation under defined load of tested sampleLoad under defined deformation: Test load under defined deformation of tested sampleSoftware can issue report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.
4.  This machine can do different test as per customer requirement such as peel test, tear test, compression test, bend test with different clamps.

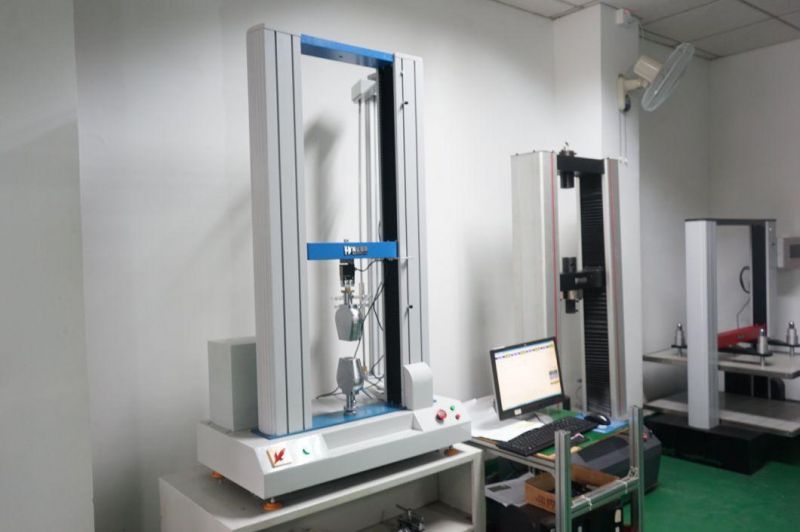

Features of Computer Control Double-Column Tensile Testing Equipment:

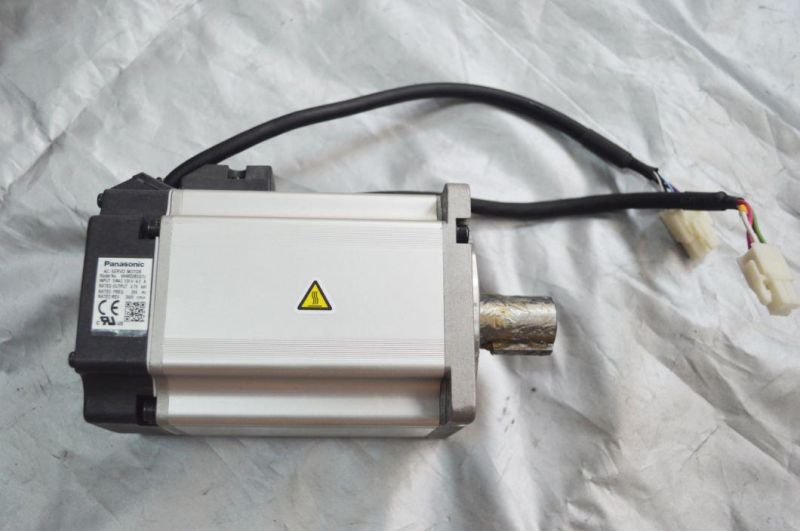

1. Motor system: Panasonic servo motor +Servo driver +High precise ball screw (Taiwan).

2. Control system: a, computer control with TM2101 software; b, Back to origin automatically after the test, c, store data automatically or by manual operation.

3. Data transmission: RS232.

4. Displacement resolution: 0.001mm.

5. Graph scale automatic optimization can make graph to display with best measurement and can implement graphics dynamic switching in the test and has force-elongation, force- time, elongation -time, stress - strain.

6. It can save results automatically after test finished, and it is manual filing. It can display maximum force, yield strength, compressive strength, tensile strength, elongation, peel interval maximum, minimum and average, etc.

7. User can set parameters of product material such as length, width, thickness, radius, area and so on.

8. Languages: English.
