Stainless Steel 3-Zone Thermal Shock Test Chamber Lab Equipment

Guangdong Komeg Industrial Co., Ltd.
  • After-sales Service：24 Hours on Line Services
  • Warranty：12 Months
  • Type：Impact Testing Machine
  • Weight：100-500Kg
  • Power Source：AC380V
  • Test Weight(Kg)：5

Base Info

  • Model NO.：KTS-150A
  • High Temp. Chamber：+60 Oc~+200 Oc
  • Low Temp. Chamber：-55 Oc~-10 Oc
  • Pre-Heat Time：+60 Oc~+200 Oc Within 20mins
  • Pre-Cold Time：+20 Oc~-55 Oc Within 60mins
  • Transport Package：Strong Plywood Case, Meet International Standards
  • Specification：Standard and Customized
  • Trademark：KOMEG
  • Origin：Dongguan, China
  • HS Code：90321000
  • Production Capacity：100-500kg

Description

SpecificationsNote:1. We reserve the right to change specifications without prior notice
2. Customized sizes and configurations availableModelKTS-A SeriesKTS-B SeriesKTS-D Series72A100A150A200A252A300A480A72B100B150B200B252B300B480B72D100D150D200D252D300DInterior sizeW(mm)450500600670700800800450500600670700800800450500600670700800H(mm)400450500600600600800400450500600600600800400450500600600600D(mm)400450500500600650750400450500500600650750400450500500600650Exterior sizeW(mm)14901540164017201750185018501490154016401720175018501850149015401640172017501850H(mm)17901840189020002000200022001790184018902000200020002200179018401890200020002000D(mm)16001700183018501930198025001600170018301850193019802500160017001830185019301980Test weight(KG)5101215182020510121518202051012151820Low Temp. chamber -55ºC~-10ºC -70ºC~-10ºC -80ºC~-10ºCPre-heat time +20ºC~-55ºC ,Within 60 min +20ºC~-70ºC ,Within 60 min +20ºC~-80ºC ,Within 60 mins Test. chamber -40ºC~+150ºC -55ºC~+150ºC -65ºC~+150ºCHigh Temp. chamber +60ºC~+200ºCPre-heat time +60ºC~+200ºC ,Within 20 minRecovery timeHigh-Temp Exposure 30 minLow-Temp Exposure 30 minRecovery time within 5 minSafety deviceNo fuse breaker, over pressureover heat and over current protection for compressor,over temperature protection,                            over load protection for blower, dry heat protectionStandard accessoryCable port(portΦ50mm)*1,   shelves*2Interior materialStainless steel plate(SUS 304)Exterior materialBaked painting steel or stainless steel(SUS304)Insulation materialRigid polyurethane Foam+glass fiber woolRefrigeration systemWater CooledSemi-hermetic compressor, cascade  refrigeration system, CFC free refrigerant(HFC-507 and HFC-23)ControllerPanel:7-inch LCD Touch panel,Chinese or English display selectableOperation model:Program or fix point runningMemory capacity:120programs,1200steps,all repeat 999cycles,part repeat 99 cycles.Accuracy:Temp.:0.1% of F.S±1 digit     Humidity:0.1% of F.S±1 digitInput:Temp.:pt-100                Humidity:pt-100 or ~5V DCVAmbient Temp.+5ºC~+35ºCPowerAC 380±10%50Hz ,3 phase 4 wires +Ground Wires

Refrigeration system characteristics
1. Import compressor, reduce the operating noisy, better performance;
2.The unit module standardization. Set up the bend language manual, ensure that make unity. Cooling line adopts advanced bend language process, ensure refrigeration accurate, uniform;
3.The operation of refrigeration system adopt intelligent control, power consumption is small, all refrigeration parts adopt international famous brand, quality assured for long-term stable operation.
4.Modular making, ease to install, repair and maintenance; Air-cooled condenser of refrigeration unit  add the filter net, ensue the  normal operation;
5.Intelligent cooling capacity adjustment, good control effect. Wide range of load.



2.2 Structure Features

Wall material:Top-grade Carbon Steel Plate,Surface electrostatic color Spray processing

Inner wall material:Stainless Steel Plate SUS304

Body insulation material:Rigid polyurethane Foam + glass fiber

Door insulation material:Rigid Polyurethane Foam + Glass fiber



2.3 Material:

Interior material: Stainless Steel Plate SUS304#

Exterior material: Baked Painting Steel Plate or Stainless Steel SUS304#

Insulation material: Rigid polyurethane Foam and Glass Fiber Wool

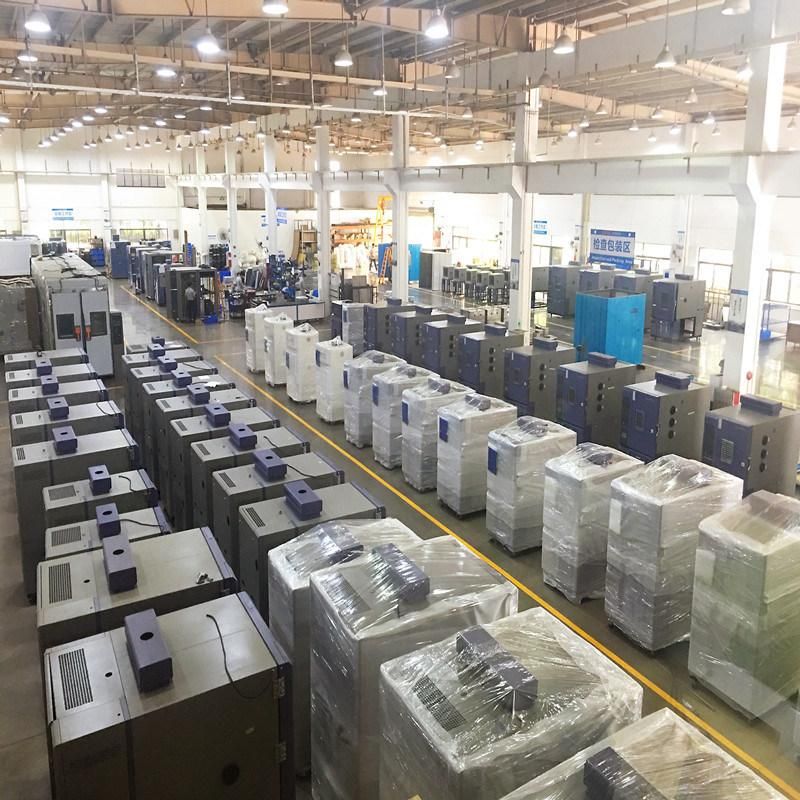

Why KOMEG Will Be Your Best Choice

Stainless Steel 3-Zone Thermal Shock Test Chamber Lab EquipmentStainless Steel 3-Zone Thermal Shock Test Chamber Lab EquipmentStainless Steel 3-Zone Thermal Shock Test Chamber Lab EquipmentStainless Steel 3-Zone Thermal Shock Test Chamber Lab EquipmentStainless Steel 3-Zone Thermal Shock Test Chamber Lab EquipmentStainless Steel 3-Zone Thermal Shock Test Chamber Lab EquipmentStainless Steel 3-Zone Thermal Shock Test Chamber Lab EquipmentStainless Steel 3-Zone Thermal Shock Test Chamber Lab Equipment



 The controller system features:

 Centralized controller, recorder, computer triad controller;

 1. Provide USB port, R485 interface, USB download;

 2. Large capacity may save 13450 segments, with super long running of 530 hours each segments.

 3. Program loop can be 32000 times, tiny loop 32000 times;

 4. Large built-in storage, can store 90 - day calendar data, historical curve (when the sample is 1 min)

 5. Support English, Chinese and so on.Stainless Steel 3-Zone Thermal Shock Test Chamber Lab Equipment
